What is the method for calculating the angle Θu in compressible flow?

Click For Summary
SUMMARY

The method for calculating the angle Θu in compressible flow is determined by the surface inclination and the no-penetration condition. Unlike previous examples that require fluid properties post-deflection, this approach focuses on the pressures involved. The discussion emphasizes the importance of understanding the relationship between surface angles and flow behavior in compressible fluids.

PREREQUISITES
  • Understanding of compressible flow principles
  • Familiarity with fluid dynamics terminology
  • Knowledge of surface inclination effects on flow
  • Basic grasp of pressure dynamics in fluid systems
NEXT STEPS
  • Research the no-penetration condition in fluid dynamics
  • Study the relationship between surface inclination and flow angles
  • Explore methods for calculating pressures in compressible flow
  • Learn about the properties of compressible fluids and their behavior
USEFUL FOR

Students and professionals in fluid dynamics, engineers working with compressible flow systems, and anyone seeking to deepen their understanding of flow behavior related to surface angles.

pipe08
Messages
1
Reaction score
0
Hello good people!

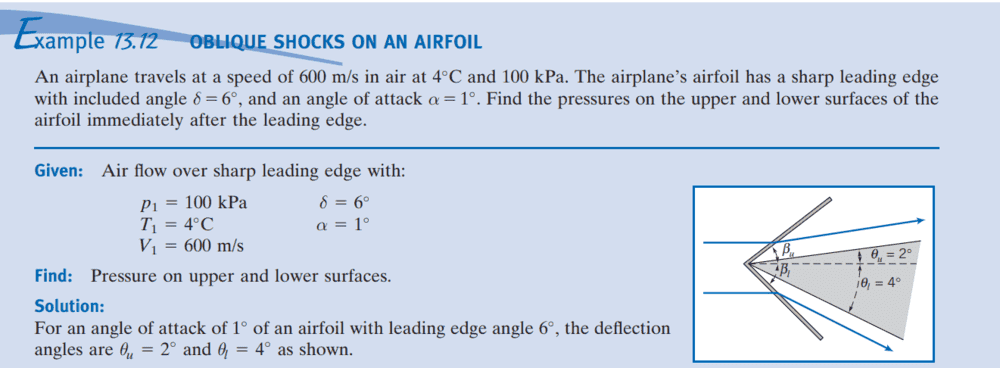

I'm studying the compressible flow and the book refers to this example. I can't understand how does it calculate the angle Θu?
In the previous example, there is a method to calculate it but it requires all the properties once the fluid is deflected, therefore, that's not the way because they are asking for the pressures.

anything light is greatly appreciated.

Physics news on Phys.org
Much like ##\theta_l##, ##\theta_u## is set by the surface inclination due to the no-penetration condition.
