Troubleshooting an Odd Square Wave Oscillator: A Scientist's Analysis

In summary, the conversation discusses the building of a square wave oscillator using a schematic found on the internet. The speaker asks for assistance in troubleshooting the schematic and in finding a simpler alternative. The suggested solutions include using a 555 timer IC or a 74HC4060 combination oscillator and divider chip. The conversation also mentions the possibility of the schematic being unreliable due to being created by amateurs rather than engineers.
  • #1
KoZuEst
4
0

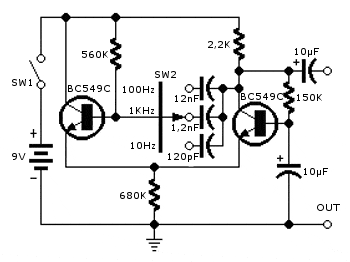

I found a schematic from the internet that was claimed to generate a square waveform at a decent frequency. I built the thing but it doesn't seem to work at all.

I'll attach a picture of the schematic. Could you tell me what's wrong with it and if there is any other relatively easy way to make a square wave oscillator?
I really don't like running to my electronics store to get every little component.. The clerk already knows me by name.. :D


Attachments

  • Squarewave.GIF
    8.9 KB · Views: 480
Last edited:
Engineering news on Phys.org
  • #2
You could just use a 555 timer IC -- that's a common way to do a simple oscillator. Or you could use a 74HC4060 combination oscillator and divider chip.

  • #3
ok, thanks.

Heh.. I looked into it. I thought, it'd be a lot more complicated.
Thanks

  • #4
Berkeman is right, much easier to use 555 and those "schematics" from the net usually never work, since they are put together by amateurs, not engineers.
