Homework Statement

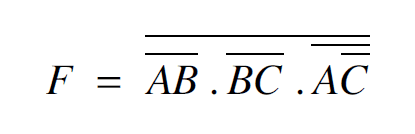

Draw the logic circuit to represent the following Boolean expression using only NAND gates:
Homework Equations
The Attempt at a Solution
Is this correct?
Thanks
A NAND gate is a type of logic gate that produces an output of 0 only when both of its inputs are 1. In all other cases, the output is 1. This can be represented by the Boolean expression A NAND B = NOT (A AND B).
To design a NAND gate logic circuit, you will need two input lines (A and B), a NAND gate, and an output line. You may also need other components such as resistors and capacitors to ensure proper functioning of the circuit.
To implement a NAND gate logic circuit in a breadboard, you will need to place a NAND gate chip on the breadboard. Then, connect the input lines (A and B) to the appropriate pins on the chip. Finally, connect the output line to the desired output pin on the chip.
To test the functionality of a NAND gate logic circuit, you can use a multimeter to measure the voltage at the output line. With both input lines set to 1, the output should be 0. With any other input combination, the output should be 1.
Yes, a NAND gate logic circuit can be used to perform other logical operations such as AND, OR, and NOT. By combining multiple NAND gates, you can create more complex logic circuits to perform a variety of functions.
