Problems with Lag Compensator Ogata

  • Engineering
  • Thread starter Student99
  • Start date
  • Tags
    Compensator
In summary, a lag compensator is a type of controller used in control systems to improve system performance and stability by introducing a phase lag in the system's response. It can reduce overshoot and improve response time, but it can also cause problems if not properly designed or tuned. To improve its performance, the gain and time constant parameters can be adjusted, and a lead-lag compensator can also be used. Alternative controllers, such as a PID controller or state feedback controller, can also be used depending on the system's requirements.
  • #1
Student99
2
0
Homework Statement
Problems with Lag Compensator Ogata
Relevant Equations
Ogata,Lag Compensator, Control Engineering
Hello Community,

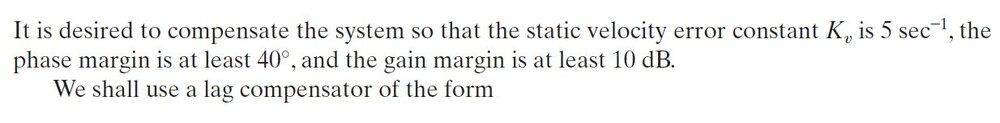

for a School Projekt I must design a lag compensator according to Ogata. Unfortenutely I have some Problems. At first I must find a Value for Kv. I don't know why he use for Kv 5 1/sec in this example. He don't explain why he use 5 and why he use at least 40 degrees.

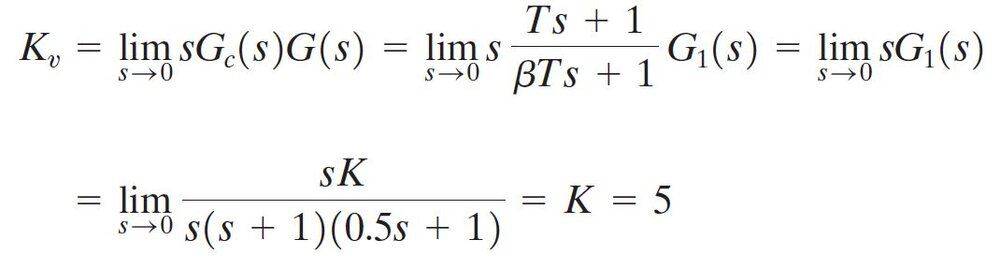

In the next step he calculate K with lim in this example.

How can i Use this Method for my open-loop transfer function and how can I determine that?


Thank you for ur answers

Physics news on Phys.org
  • #2
no one can help me?
