Transient FEM Simulation of a Solenoid Actuator with MAXWELL

In summary, a mechanical engineer is seeking help with a 3D transient electromagnetic simulation of a solenoid actuator. They imported the geometry from CAD-files and added a vacuum Band around the plunger. They then set up the motion and added meshing options, a winding, and a coilterminal with an external circuit. After solving the simulation, they noticed that the mesh was not very refined and the speed and position of the plunger did not change. There also seems to be a problem with the movement, as the moving vector needs to be positive. They will provide updates on the situation.
  • #1
renohr
3
0
Hey Guys!

Hi Guys!

Well I am new here and I have to confess that I somehow got stuck in a 3D transient electromagnetic simulation of a solenoid actuator and… I’m a mechanical engineer^^ So I would appreciate some help of you guys!

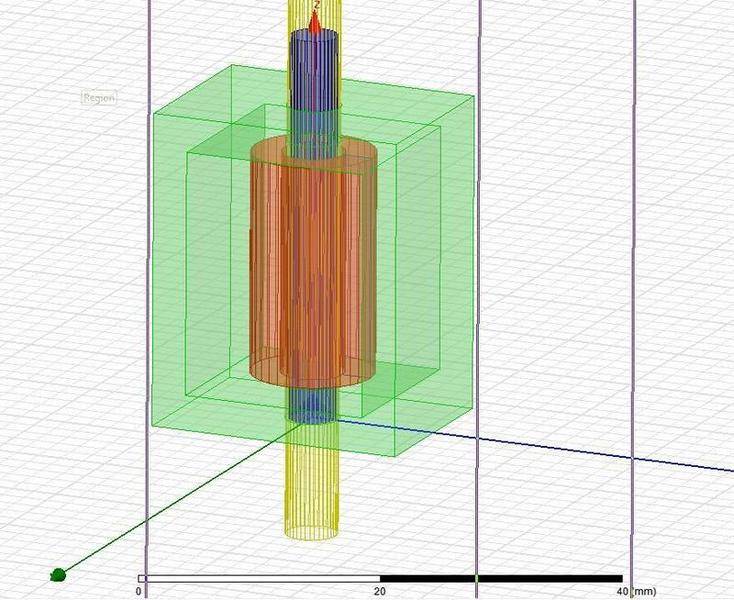

1. I imported the geometry from CAD-files. But I remodeled the coil and the plunger with a sweep of the section around the z-axies.



2. I added a vacuum Band around the plunger

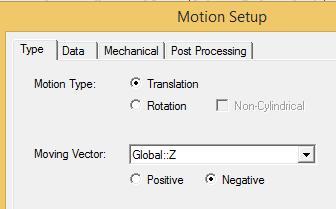

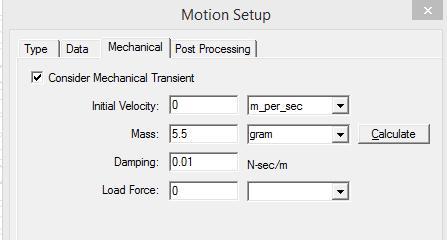

3. I setup the motion with:

4. I added some meshing options

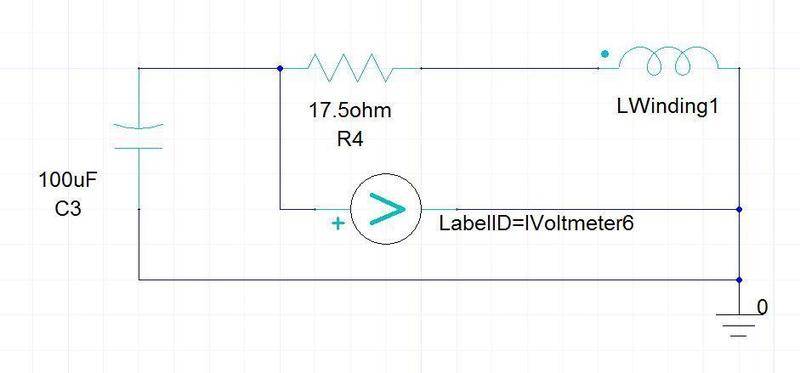

5. I added a winding and a coilterminal with an external circuit

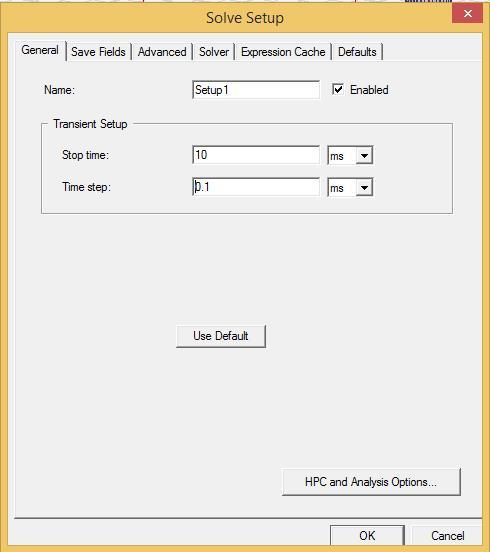

6. I setup the Solution:

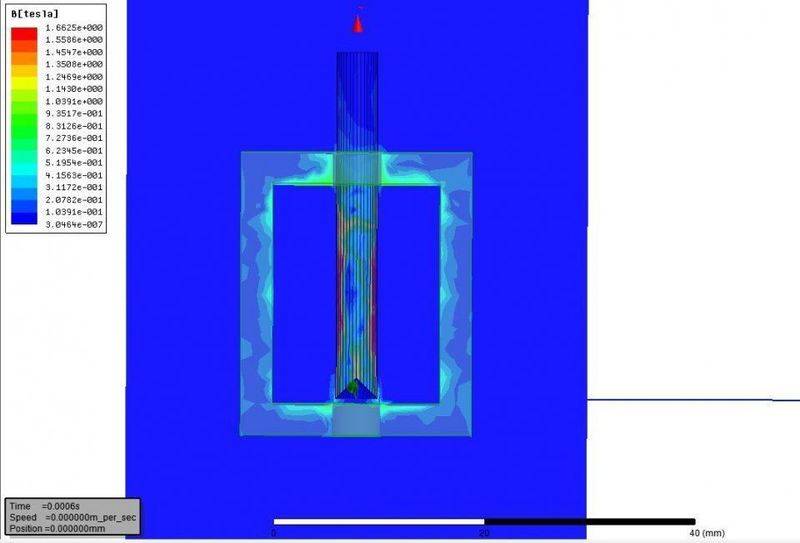

7. I solved itSo the solving went smooth but the mesh is not very refined jet. I get a Force acting on the plunger but the speed and the position of the plunger they don’t change...

Engineering news on Phys.org
  • #2

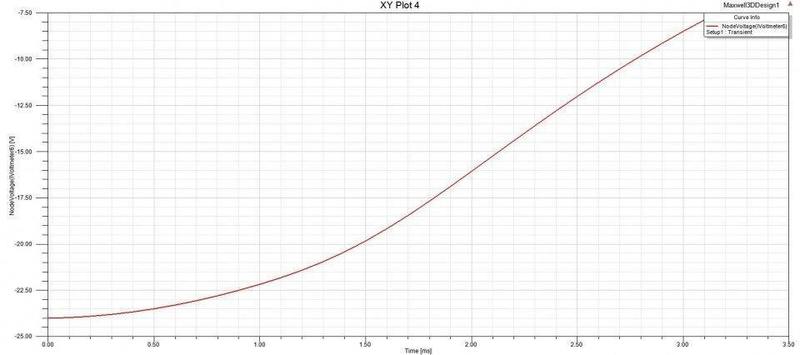

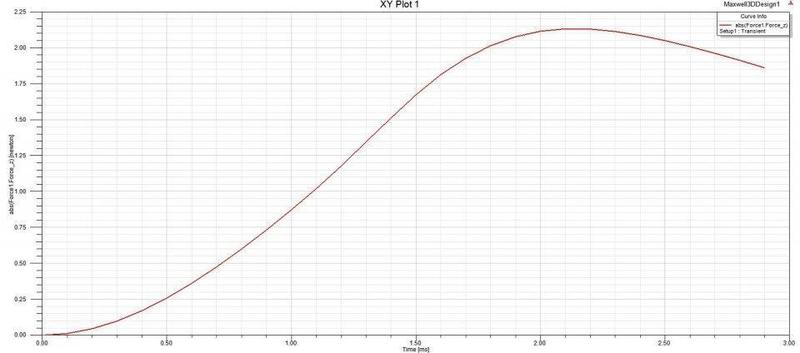

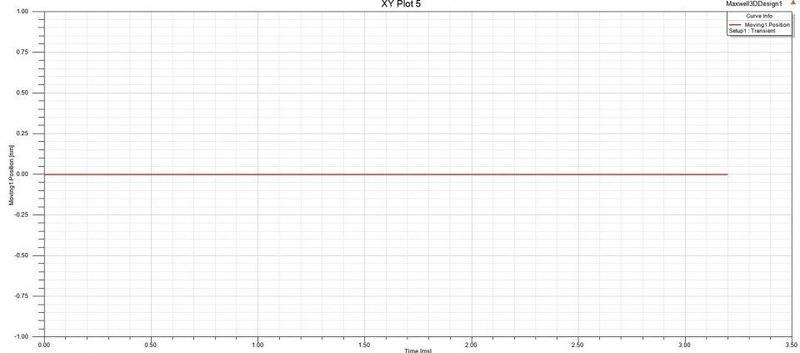

And here are the xy plots:
