Can anyone explain me the 4 diode Balanced modulator circuit

Click For Summary

Discussion Overview

The discussion revolves around the operation of a 4 diode DSBSC (Double Sideband Suppressed Carrier) Balanced modulator circuit, specifically focusing on how multiplication occurs during switching. The context includes technical explanations and conceptual clarifications related to the circuit's functionality.

Discussion Character

  • Technical explanation
  • Conceptual clarification

Main Points Raised

  • Devanand T seeks an explanation of the 4 diode DSBSC Balanced modulator circuit and how multiplication occurs during switching.
  • Noddy describes the operation of the bridge, noting that the output signal reflects the input signal's polarity based on the control voltage, resulting in two symmetrical versions of the modulation signal.
  • Devanand T expresses satisfaction with an explanation found in a book by Fresnel regarding the topic.
  • Devanand T inquires about IRC channels for live discussions related to the forum.
  • Another participant suggests posting in the Computing forum for potential IRC channel information.

Areas of Agreement / Disagreement

Participants generally share an interest in understanding the circuit, but there is no consensus on the best resources for live discussions or the specifics of the circuit operation, as some explanations are more satisfactory to different individuals.

Contextual Notes

There are references to specific resources and personal preferences for communication methods, but no formal resolution of the technical aspects of the circuit operation is provided.

dexterdev
Messages
194
Reaction score
1
Hi,

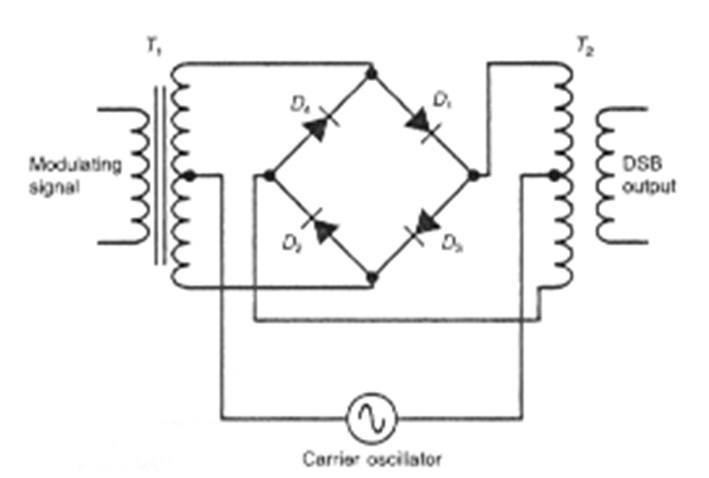

Can anyone explain me the working of 4 diode DSBSC Balanced modulator circuit. ie how multiplication occurs when switching. The image is attached.
