Are these circuits equivalent?

AI Thread Summary
The two circuits discussed are equivalent, as confirmed by participants. To analyze them using Kirchhoff's voltage law, establishing a ground potential is recommended. The voltage across the capacitor and resistor is identical due to their parallel arrangement. Some contributors express that the circuits may not provide significant instructional value. Overall, the discussion emphasizes the application of Kirchhoff's law in understanding the relationships between the voltages in the circuits.
Apteronotus
Messages
201
Reaction score
0
Hi

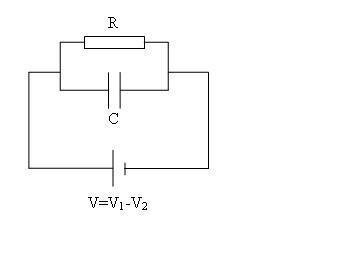

Are the two (attached) circuits equivalent?

Also, what if any are the relation between the voltages? (ie. V_c, V_R and V_1-V_2)
How would we apply Kirchhoff's voltage law?

thanks,


Attachments

  • Circuit.JPG
    2.3 KB · Views: 383
  • Circuit2.JPG
    3.5 KB · Views: 408
Physics news on Phys.org
yes, the circuits are equivalent! To apply Kirchhoff's voltage law to the circuit in the picture Circuit.JPG it would be helpful to add the ground potential!

Because the capacitor and the resistor are parallel their voltage drop is the same!

I think these circuits are not very instructive!
