In summary, the task at hand is to simulate a circuit from 10Hz to 10MHz and produce a Bode Plot of the amplifier output (across RL). From the Bode Plot, the maximum gain (A(max)), cut-off frequency (fc), and frequency at unity gain should be determined. The frequency at unity gain refers to the frequency where Vout = vs, or where the gain of the circuit drops to 1.
  • #1
newbie92
2
0

Homework Statement

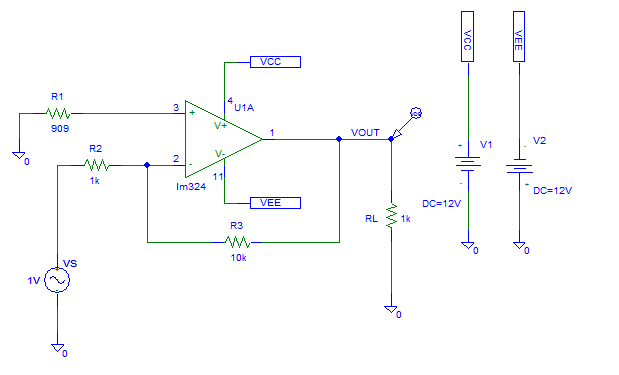

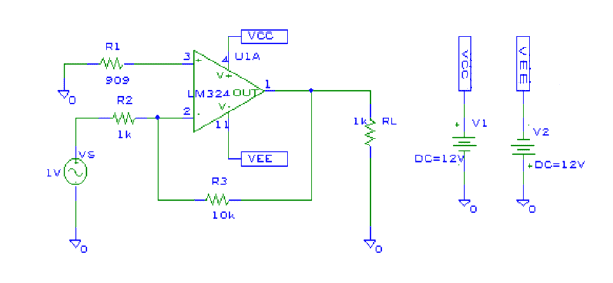

Simulate the circuit from 10Hz to 10MHz.
Produce the Bode Plot for the amplifier output (across RL).
From the Bode plot, determine the following:
i) Maximum gain, A(max)
ii) The cut-off frequency, fc.
iii) The frequency at the unity gain.

2. The attempt at a solution

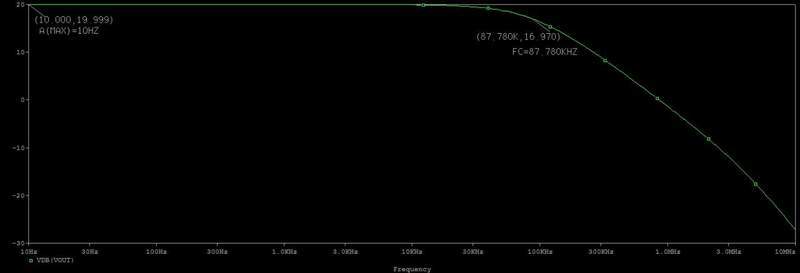

the maximum gain and cut-off frequency i obtained from the graph,but what is the mean by frequency at the unity gain?


Attachments

  • Capture.PNG
    6.4 KB · Views: 492
  • Capture2.PNG
    3.8 KB · Views: 502
  • Capture3.jpg
    6.6 KB · Views: 495
Physics news on Phys.org
  • #2
newbie92 said:

Homework Statement


Simulate the circuit from 10Hz to 10MHz.
Produce the Bode Plot for the amplifier output (across RL).
From the Bode plot, determine the following:
i) Maximum gain, A(max)
ii) The cut-off frequency, fc.
iii) The frequency at the unity gain.

2. The attempt at a solution
the maximum gain and cut-off frequency i obtained from the graph,but what is the mean by frequency at the unity gain?

That should be the frequency where Vout = vs. That is, where the gain of the circuit drops to 1.

  • #3

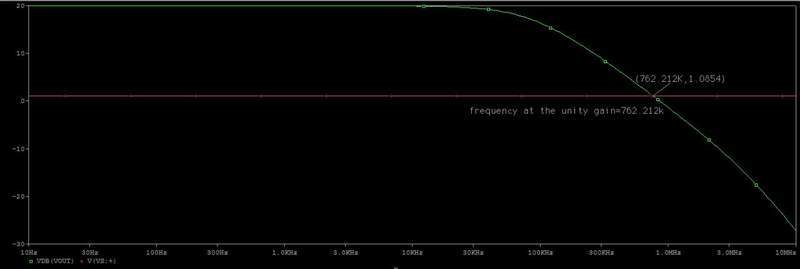

then the answer is like the graph below?
when vout=vs=1v


Attachments

  • Capture.jpg
    7.9 KB · Views: 456
  • #4
newbie92 said:
then the answer is like the graph below?
when vout=vs=1v

I suppose that would be it (It's hard to make out the detailed contents of the image with its faint lines and lettering on a black background).

  • #5


The frequency at unity gain refers to the frequency at which the gain of the amplifier is equal to 1 or 0 dB. This is the frequency at which the amplifier output is the same as the input, without any amplification or attenuation. This frequency can also be referred to as the 3 dB frequency or the bandwidth of the amplifier. In the Bode plot, it is the point where the gain curve intersects with the 0 dB line.
