Basic Engineering Circuit Problem 2

  • Context: Engineering
  • Thread starter Thread starter DrunkApple
  • Start date Start date
  • Tags Tags
    Circuit Engineering
Click For Summary
SUMMARY

The discussion centers on solving for the current I_{1} in a circuit where the equation I_{1} + 4 mA = 2 mA is established. The solution derived is I_{1} = -2 mA, indicating a negative current flow. Participants note the presence of two unknowns in the circuit, suggesting the need for an additional equation to accurately solve for I_{1} and the current through the resistor between the 2 mA and 12 mA legs.

PREREQUISITES
  • Basic understanding of electrical circuits and current flow
  • Familiarity with Kirchhoff's laws
  • Knowledge of Ohm's Law
  • Ability to set up and solve simultaneous equations
NEXT STEPS
  • Study Kirchhoff's Current Law (KCL) for circuit analysis
  • Learn to apply Ohm's Law in complex circuits
  • Practice solving simultaneous equations in electrical engineering contexts
  • Explore circuit simulation tools like LTspice for visualizing current flow
USEFUL FOR

Electrical engineering students, circuit designers, and anyone involved in analyzing and solving circuit problems.

DrunkApple
Messages
110
Reaction score
0

Homework Statement

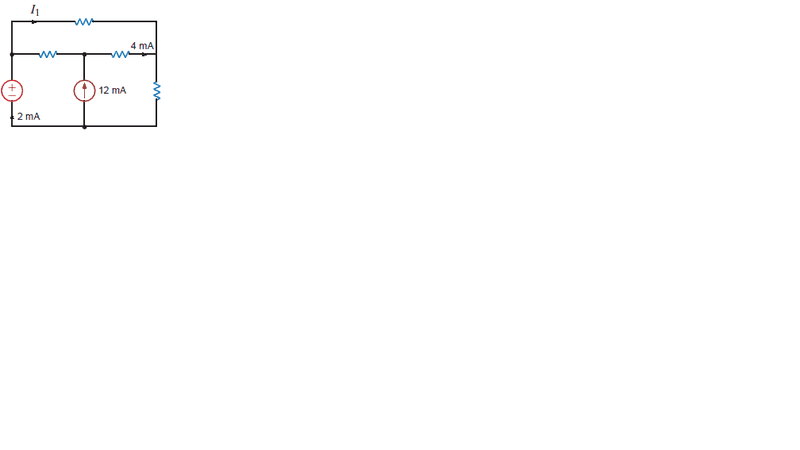

Find I[itex]_{1}[/itex] in the circuit

Homework Equations


The Attempt at a Solution


I[itex]_{1}[/itex] + 4 mA = 2 mA
I[itex]_{1}[/itex] = -2 mA


Attachments

  • 2.13.png
    2.8 KB · Views: 546
Physics news on Phys.org
DrunkApple said:

Homework Statement


Find I[itex]_{1}[/itex] in the circuit


Homework Equations





The Attempt at a Solution


I[itex]_{1}[/itex] + 4 mA = 2 mA
I[itex]_{1}[/itex] = -2 mA

This problem looks to have 2 unknowns. You aren't given the current flowing through the resistor on the left between the 2mA and 12mA legs. I would think you would need to write 2 equations to solve for I1 and that unknown current, but I could be wrong.
