# Can Someone Explain This Trig Picture to Me?

In summary, the conversation discusses the use of the dot product and trigonometry to find projections onto different axes. The formula for the dot product is used to find the projection of r onto x and y axes, while the formula for phi is used to find the projection of phi onto x and y axes. However, there is confusion about why the last projection, phi (dot) y, results in a positive value for cosine instead of a negative value.

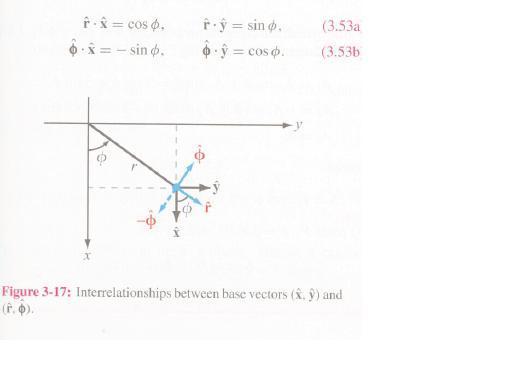

Its the attached picture. I'm not seeing why when using the dot product, they start using sin.

#### Attachments

• untitled.JPG
8.8 KB · Views: 409
Last edited:
The picture is self explanatory. If you know trig, it should be elementary.

Projections onto different axes.

I'm just not getting it. '
I see that the angle between r and x is phi, thus in using the formula, r (dot) x = (1)(1) cos(phi).

Then I see the angle between r and y is (90-phi), thus in using the formula, r (dot) y = (1)(1)cos(90-phi) = sin (phi).

I then see the angle between phi and x is (90 +phi), thus in using the formula, phi (dot) x = (1)(1)cos(90+phi) = -sin (phi)

I then see the angle between phi and y is (180 - phi), thus in using the formula, phi (dot) y = (1)(1)cos(180-phi) = -cos (phi)?

I don't get why the last one is +cos(phi)...

Look at the blue part of the diagram ... phi(dot)y = cos(phi).
