CG of Rectangular Frame with Offset Weight: Need Counterweight?

Click For Summary

Discussion Overview

The discussion revolves around the concept of center of gravity (CG) in a rectangular frame with an offset weight attached to its lower arm. Participants explore whether the weight creates an unbalanced condition requiring a counterweight to maintain horizontal alignment, and the implications of the weight's position on torque and moments in the structure.

Discussion Character

  • Exploratory
  • Technical explanation
  • Debate/contested

Main Points Raised

  • One participant questions if the offset weight will cause the frame to be unbalanced and whether a counterweight is necessary to keep it horizontal.
  • Another participant suggests that there may be a counter-clockwise torque around the attachment point due to the offset weight, but expresses uncertainty about the mathematical analysis of the situation.
  • A further inquiry is made regarding whether the lower arm should be considered as simply supported or as a cantilever beam for analysis purposes.
  • One participant admits a lack of expertise in the theoretical aspects but indicates that there are knowledgeable individuals in the forum who can provide assistance.

Areas of Agreement / Disagreement

Participants do not reach a consensus on whether a counterweight is needed, and there are multiple competing views regarding the effects of the offset weight on balance and torque.

Contextual Notes

There are unresolved assumptions regarding the support conditions of the lower arm and the specific calculations needed to determine the balance and moments involved.

vscid
Messages
4
Reaction score
0
Hi,

I had a question on CG.

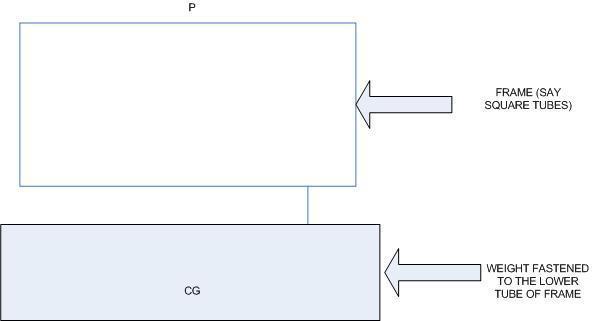

I have a rectangular frame (say made of square tubes) and have a weight fastened to its lower arm (as shown in the attached pic.), which is not fastened on the center of the lower arm but is offset. however, the CG of the weight is in the same line as the pick point P.
In this case, will the weight be unbalanced? (will I need a counterweight to keep it exactly horizontal). If not, would there be a moment in the lower arm?
Would i need a counterweight in any case?
Thanks!


Attachments

  • FRAME.jpg
    7.5 KB · Views: 380
Physics news on Phys.org
Welcome to PF, Vscid.
That's a good question. My instinct tells me that there would be a counter-clockwise torque around the attachment point, but I suspect that the math will say otherwise. I'm not educated in these matters, so hang on for someone else to help you out.

If I consider the lower arm as a beam, do I consider it simply supported or cantiliver?

Sorry, dude... I can't answer that. I just build stuff.
As I said, though, there are experts here who will help you out shortly.
