Electric field due to polarized object

4 replies · 2K views · last reply
VVS2000
Messages
150
Reaction score
17
TL;DR

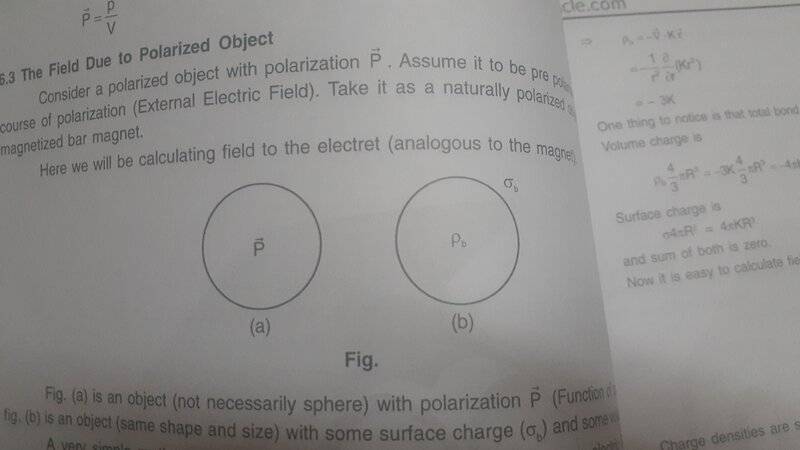

So I am given the conditions necessary for the electric field to be equal for given two objects of same size and shape, one of which is polarized and the other has some surface and volume charge densities as shown in the diagram
Two circles side by side: (a) contains a vector P labelled as polarization, (b) contains rho_b with sigma_b on its boundary, labelled as bound volume and surface charge; printed textbook page with partial text and equations at right.
Photo of a printed textbook page under the heading Fig., with text on polarized objects and equations sigma_b = P · n and rho_b = -∇ · P for bound surface and volume charge densities.

VVS2000 said:
Summary:: So I am given the conditions necessary for the electric field to be equal for given two objects of same size and shape, one of which is polarized and the other has some surface and volume charge densities as shown in the diagram

View attachment 292998View attachment 292999
So you are. Is there a question you wish to ask?

kuruman said:
So you are. Is there a question you wish to ask?

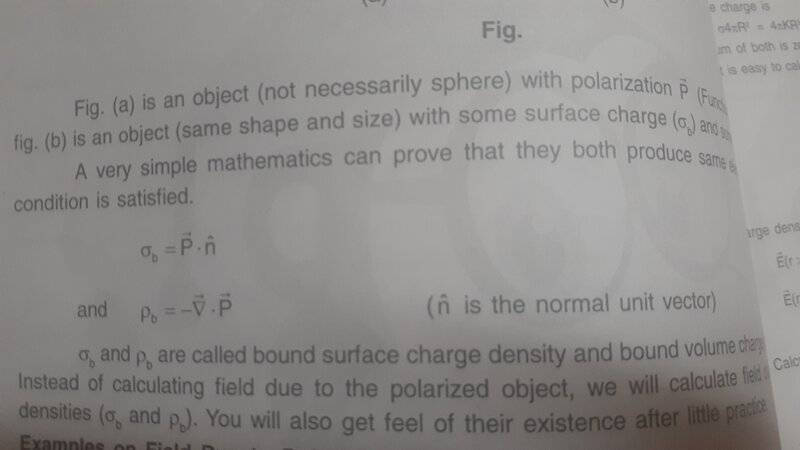

Yeah, they have mentioned the given 2 conditions regarding polarization must be satisfied for electric fields of the given 2 objects to be equal
I still don't know how

The justification is a standard proof. You might have come across the potential of a dipole ##\phi(\mathbf{r}) = \dfrac{\mathbf{p} \cdot \mathbf{r}}{4\pi \epsilon_0 r^3}##. Therefore if a material has a dipole moment per unit volume ##\mathbf{P} = \dfrac{d\mathbf{p}}{dV}##, the dipole potential is\begin{align*}
\phi(\mathbf{r}) &= \dfrac{1}{4\pi \epsilon_0} \int_{\mathscr{V}} \dfrac{\mathbf{P}(\mathbf{R}) \cdot (\mathbf{r} - \mathbf{R})}{|\mathbf{r} - \mathbf{R}|^3} d^3 \mathbf{R}
\end{align*}where ##\mathbf{R}## is the integration variable over the source charge distribution (contained with in ##\mathscr{V}##). Letting ##\nabla_{\mathbf{R}} = \left( \frac{\partial}{\partial R_x}, \frac{\partial}{\partial R_y}, \frac{\partial}{\partial R_z} \right)## denote differentiation with respect to the coordinates of ##\mathbf{R}##, notice now that\begin{align*}
\nabla_{\mathbf{R}} \cdot \dfrac{\mathbf{P}(\mathbf{R})}{|\mathbf{r} - \mathbf{R}|} &= \sum_i \dfrac{\partial}{\partial R_i} \dfrac{P_i(\mathbf{R})}{|\mathbf{r} - \mathbf{R}|} \\
&= \sum_i \left[ \dfrac{1}{|\mathbf{r} - \mathbf{R}|} \dfrac{\partial P_i}{\partial R_i} + P_i \dfrac{\partial}{\partial R_i} \dfrac{1}{|\mathbf{r} - \mathbf{R}|} \right] \\
&= \sum_i \left[ \dfrac{1}{|\mathbf{r} - \mathbf{R}|} \dfrac{\partial P_i}{\partial R_i} + P_i \dfrac{(\mathbf{r} - \mathbf{R})_i}{|\mathbf{r} - \mathbf{R}|^3} \right] \\
&= \dfrac{\nabla_{\mathbf{R}} \cdot \mathbf{P}}{|\mathbf{r} - \mathbf{R}|} + \dfrac{\mathbf{P} \cdot (\mathbf{r} - \mathbf{R})}{|\mathbf{r} - \mathbf{R}|^3}
\end{align*}and therefore\begin{align*}
\phi(\mathbf{r}) &= \dfrac{1}{4\pi \epsilon_0} \int_{\mathscr{V}}\left[ \nabla_{\mathbf{R}} \cdot \dfrac{\mathbf{P}}{|\mathbf{r} - \mathbf{R}|} - \dfrac{\nabla_{\mathbf{R}} \cdot \mathbf{P}}{|\mathbf{r} - \mathbf{R}|} \right] d^3 \mathbf{R} \\
&= \dfrac{1}{4\pi \epsilon_0} \int_{\partial \mathscr{V}} \dfrac{\mathbf{P}}{|\mathbf{r} - \mathbf{R}|} \cdot \hat{\mathbf{n}} dS- \dfrac{1}{4\pi \epsilon_0} \int_{\mathscr{V}} \dfrac{\nabla_{\mathbf{R}} \cdot \mathbf{P}}{|\mathbf{r} - \mathbf{R}|} d^3 \mathbf{R} \\

&= \dfrac{1}{4\pi \epsilon_0} \int_{\partial \mathscr{V}} \dfrac{\sigma_{\mathrm{b}}}{|\mathbf{r} - \mathbf{R}|} dS + \dfrac{1}{4\pi \epsilon_0} \int_{\mathscr{V}} \dfrac{\rho_{\mathrm{b}}}{|\mathbf{r} - \mathbf{R}|} d^3 \mathbf{R}
\end{align*}upon defining ##\sigma_{\mathrm{b}} \equiv \mathbf{P} \cdot \hat{\mathbf{n}}## and ##\rho_{\mathrm{b}} \equiv - \nabla_{\mathbf{R}} \cdot \mathbf{P}##.

Last edited:
  • Like
Likes   Reactions: Astronuc, berkeman, TSny and 1 other person
ergospherical said:
The justification is a standard proof. You might have come across the potential of a dipole ##\phi(\mathbf{r}) = \dfrac{\mathbf{p} \cdot \mathbf{r}}{4\pi \epsilon_0 r^3}##. Therefore if a material has a dipole moment per unit volume ##\mathbf{P} = \dfrac{d\mathbf{p}}{dV}##, the dipole potential is\begin{align*}
\phi(\mathbf{r}) &= \dfrac{1}{4\pi \epsilon_0} \int_{\mathscr{V}} \dfrac{\mathbf{P}(\mathbf{R}) \cdot (\mathbf{r} - \mathbf{R})}{|\mathbf{r} - \mathbf{R}|^3} d^3 \mathbf{R}
\end{align*}where ##\mathbf{R}## is the integration variable over the source charge distribution (contained with in ##\mathscr{V}##). Letting ##\nabla_{\mathbf{R}} = \left( \frac{\partial}{\partial R_x}, \frac{\partial}{\partial R_y}, \frac{\partial}{\partial R_z} \right)## denote differentiation with respect to the coordinates of ##\mathbf{R}##, notice now that\begin{align*}
\nabla_{\mathbf{R}} \cdot \dfrac{\mathbf{P}(\mathbf{R})}{|\mathbf{r} - \mathbf{R}|} &= \sum_i \dfrac{\partial}{\partial R_i} \dfrac{P_i(\mathbf{R})}{|\mathbf{r} - \mathbf{R}|} \\
&= \sum_i \left[ \dfrac{1}{|\mathbf{r} - \mathbf{R}|} \dfrac{\partial P_i}{\partial R_i} + P_i \dfrac{\partial}{\partial R_i} \dfrac{1}{|\mathbf{r} - \mathbf{R}|} \right] \\
&= \sum_i \left[ \dfrac{1}{|\mathbf{r} - \mathbf{R}|} \dfrac{\partial P_i}{\partial R_i} + P_i \dfrac{(\mathbf{r} - \mathbf{R})_i}{|\mathbf{r} - \mathbf{R}|^3} \right] \\
&= \dfrac{\nabla_{\mathbf{R}} \cdot \mathbf{P}}{|\mathbf{r} - \mathbf{R}|} + \dfrac{\mathbf{P} \cdot (\mathbf{r} - \mathbf{R})}{|\mathbf{r} - \mathbf{R}|^3}
\end{align*}and therefore\begin{align*}
\phi(\mathbf{r}) &= \dfrac{1}{4\pi \epsilon_0} \int_{\mathscr{V}}\left[ \nabla_{\mathbf{R}} \cdot \dfrac{\mathbf{P}}{|\mathbf{r} - \mathbf{R}|} - \dfrac{\nabla_{\mathbf{R}} \cdot \mathbf{P}}{|\mathbf{r} - \mathbf{R}|} \right] d^3 \mathbf{R} \\
&= \dfrac{1}{4\pi \epsilon_0} \int_{\partial \mathscr{V}} \dfrac{\mathbf{P}}{|\mathbf{r} - \mathbf{R}|} \cdot \hat{\mathbf{n}} dS- \dfrac{1}{4\pi \epsilon_0} \int_{\mathscr{V}} \dfrac{\nabla_{\mathbf{R}} \cdot \mathbf{P}}{|\mathbf{r} - \mathbf{R}|} d^3 \mathbf{R} \\

&= \dfrac{1}{4\pi \epsilon_0} \int_{\partial \mathscr{V}} \dfrac{\sigma_{\mathrm{b}}}{|\mathbf{r} - \mathbf{R}|} dS + \dfrac{1}{4\pi \epsilon_0} \int_{\mathscr{V}} \dfrac{\rho_{\mathrm{b}}}{|\mathbf{r} - \mathbf{R}|} d^3 \mathbf{R}
\end{align*}upon defining ##\sigma_{\mathrm{b}} \equiv \mathbf{P} \cdot \hat{\mathbf{n}}## and ##\rho_{\mathrm{b}} \equiv - \nabla_{\mathbf{R}} \cdot \mathbf{P}##.
Wow, now I understood
Thanks
