Finding the current in the drain of a MOSFET

In summary, to determine the current in the drain of a MOSFET, you can use Ohm's Law by dividing the voltage at the drain by the resistance of the MOSFET. The current is affected by the gate voltage, the drain-source voltage, and the resistance of the MOSFET. It is directly proportional to temperature, but high temperatures can damage the MOSFET. The current can be controlled by adjusting the gate voltage and can be measured using a multimeter in series with the drain of the MOSFET.
  • #1
bl965
18
0

Homework Statement

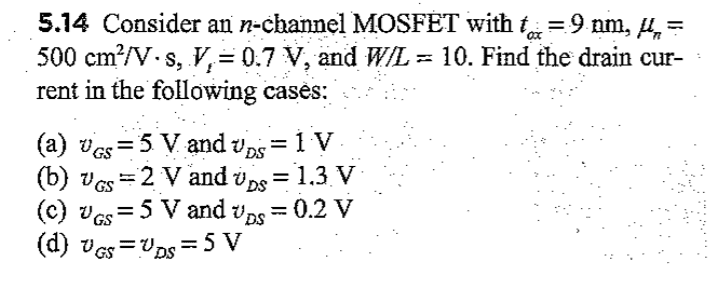

The equations provided require the oxide permittivity (εox)as well as the oxide thickness (tox) to determine the gate oxide capacitance per unit squared (Cox). How to solve this?

Homework Equations


In triode region: ID = μn * Cox * W/L * ((VGS-Vth)* VDS - VDS2/2

In saturation = μn * Cox * 1/2 * W/L * (VGS-Vth)2 * (1 + λ*VDS)

Cox = εox / tox

The Attempt at a Solution


Without εox, I can't get Cox; I can't start.

Physics news on Phys.org
  • #2
tox is given. εox you should be able to look up. Assume the device uses silicon dioxide as the gate dielectric.
