Okay, I've re-tooled my question.

What role do R2 and C1 play in dampening a sine wave on the current supply IG1 in the following circuit?

I want to understand the fundamental theory behind this.

#### Attachments

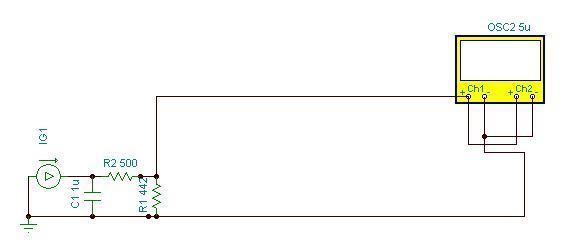

• CKT.JPG
7.8 KB · Views: 362
lennybogzy said:
Okay, I've re-tooled my question.

What role do R2 and C1 play in dampening a sine wave on the current supply IG1 in the following circuit?

I want to understand the fundamental theory behind this.

What are your thoughts so far?

cuz its a simple RC circuit. that's why. the changing current that the cap pulls induces a "compensating" voltage drop in R2.

## 1. How do R2 and C1 reduce oscillation in an IG1 circuit?

R2 and C1 work together to create a low pass filter in the IG1 circuit, which helps to reduce oscillation. The resistor R2 and capacitor C1 form a voltage divider that attenuates high frequency signals, preventing them from reaching the output and causing oscillation.

## 2. Why is oscillation a problem in the IG1 circuit?

Oscillation in the IG1 circuit can cause instability and unwanted noise in the output signal. This can affect the performance and accuracy of the circuit, making it difficult to obtain reliable results.

## 3. What values should R2 and C1 have to effectively reduce oscillation in the IG1 circuit?

The values of R2 and C1 will depend on the specific circuit and its requirements. In general, R2 should have a high resistance and C1 should have a large capacitance to create an effective low pass filter. It is recommended to consult a circuit designer or use simulation software to determine the optimal values for R2 and C1 in the IG1 circuit.

## 4. Can R2 and C1 completely eliminate oscillation in the IG1 circuit?

While R2 and C1 can significantly reduce oscillation in the IG1 circuit, they may not completely eliminate it. Other factors such as layout, component tolerances, and power supply noise can also contribute to oscillation. It is important to carefully design and test the circuit to minimize oscillation.

## 5. Are there any potential drawbacks to using R2 and C1 to reduce oscillation in the IG1 circuit?

One potential drawback is that the low pass filter created by R2 and C1 can also attenuate desired signals in the circuit. This can affect the overall performance and accuracy of the circuit. Additionally, R2 and C1 may introduce additional noise into the circuit. It is important to carefully choose the values of R2 and C1 to balance the reduction of oscillation with the impact on the circuit's performance.
