B How to integrate a polar graph with respect to radius

  1. Jun 28, 2017 #1
    How is this done? My textbook only specifies integrating polar graphs with respect to theta.

  2. jcsd
  3. Jun 29, 2017 #2

    BvU

    User Avatar
    Science Advisor
    Homework Helper
    Gold Member

    Hi,
    You want to do what, precisely? Could you give a bit more context ?

    I assume your textbook does something like integrate ##{1\over 2} r^2(\theta)\, d\theta## to find an area ?

  4. Jun 29, 2017 #3
  5. Jun 29, 2017 #4

    BvU

    User Avatar
    Science Advisor
    Homework Helper
    Gold Member

    Doesn't help me. What am I looking at ?


  6. Jun 29, 2017 #5

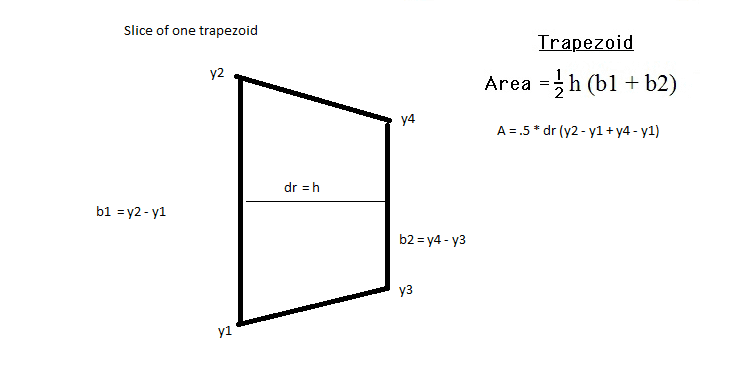

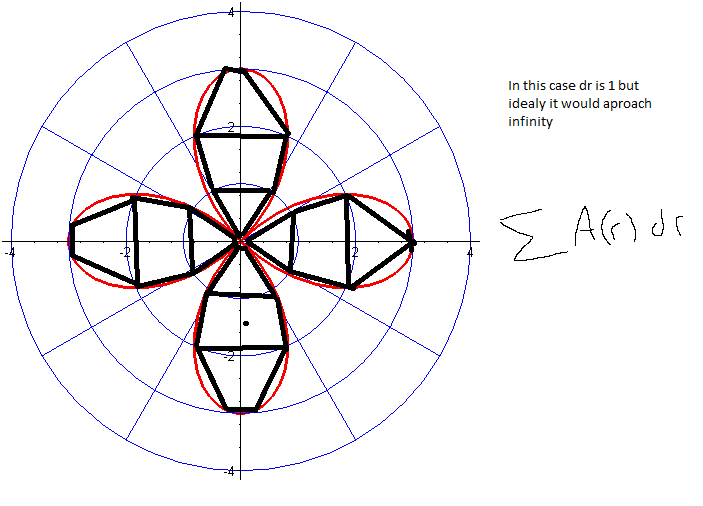

    Well to integrate with respect to r my best guess was to use trapezoids to estimate the area. The points on the trapezoid are calculated from intersection points with a circle of radius r and the thickness of the trapezoid is dr. The 2 intersection points from a circle form one base and then the circle of radius r + dr is used to calculate the other base and dr is used as the height.
    2nd explanation for PF.png

  7. Jun 29, 2017 #6

    BvU

    User Avatar
    Science Advisor
    Homework Helper
    Gold Member

    Just to have a starting point: you want to find the area of the red outlined figure, for which you may have a parametric description in the form ##f(r,\theta) = 0 ## ?
    Perhaps something like ##\left (\cos 2\theta\right )^2 - r = 0 ## ?

    And the black lines are to show the approach ? ("In this case dr = 1 but ideally it would approach infinity" -- infinity probable means infinitesimal ?)

  8. Jun 29, 2017 #7
    Not just find the area I want to make a graph of A vs r where A is on the y axis. Yes the black lines were my thoughts on how to solve the problem.

  9. Jun 29, 2017 #8

    BvU

    User Avatar
    Science Advisor
    Homework Helper
    Gold Member

    No need for trapezoids. For infinitesimal dh rectangles are enough

    right. From symmetry, finding one point suffices.
    Not correct. Can you see why not ?

  10. Jun 29, 2017 #9
    No I'm not sure why dr wouldn't be the width of a rectangle.

  11. Jun 30, 2017 #10

    BvU

    User Avatar
    Science Advisor
    Homework Helper
    Gold Member

    Just look at your innermost trapezia

  12. Jun 30, 2017 #11

    BvU

    User Avatar
    Science Advisor
    Homework Helper
    Gold Member

    Which doesn't mean you can't integrate over your dr: it's just that you don't have trapezia or rectangles, but sections of annuli (i.e. y1-y2 and y3-y4 are curved)
    (And then my dr and your dr coincide again :smile:)

  13. Jun 30, 2017 #12
    Integrating with respect to r, wouldn't you be dealing with rings or arcs instead of straight lines?

  14. Jun 30, 2017 #13
    Last edited: Jun 30, 2017
  15. Jun 30, 2017 #14

    BvU

    User Avatar
    Science Advisor
    Homework Helper
    Gold Member

    Yes. My charcoal english :smile: used the term 'annuli'.
    Hehe, PF culture insists that you do the work and we help by asking, hinting etcetera :smile:

    At the risk of violating these cultural rules: from your picture (beautiful ! :biggrin: ) you see that ##dA/8 = 2\pi \rho \theta(\rho) d\rho## so the answer to your question (the answer for which that you should have at least proposed an attempt ...) is $$A(r) = 8\,\int_0^r 2\pi\, \rho \,\theta(\rho) \, d\rho $$ and now it's up to you to work out the integrand and integrate it ...

  16. Jul 4, 2017 #15
    I have been trying it for a while. I can't figure out how to convert the polar graph to a parametric one. I tried internet resources but they weren't to great. Is there any other way to solve this without converting it to parametric?

  17. Jul 5, 2017 #16

    BvU

    User Avatar
    Science Advisor
    Homework Helper
    Gold Member

    Isn't ##\left (\cos 2\theta\right )^2 - r = 0## good enough ? if you want to integrate over ##dr## all you need to do is work this around to a function ##\theta(r)##, something with an ##\arccos##, I suppose....

  18. Aug 1, 2017 #17
    Still haven't been able to solve it. Sorry. I think I will just try to solve it numerically in python.

  19. Aug 3, 2017 #18

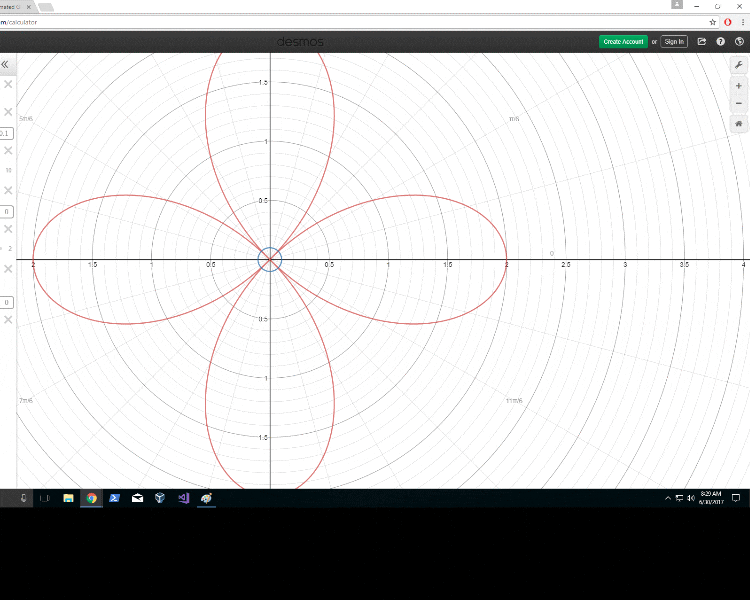

    Well I got an answer but I am not positive it is correct. The bold black line represents the area accumulated of the top half of one leaf. An approximation of the area of the top half of the east leaf with a triangle gives a value of 0.075 and the bold black line has a value of 0.08. I think that the results of graph are important because it yields the random probability of finding a object in that region. The thought stems from a method of approximating the value of pi by randomly placing dots in a square with a circle circumscribed, then finding the ratio between the dots in and out of the circle but between the square. Please correct if I am wrong about the meaning of the results or if I did my math wrong. I was investigating the relationship between polar graphs, path of electron in an atom, and how the results compare to other theories.
    Screenshot (1).png
