Discussion Overview
The discussion revolves around simulating leakage current in a reverse bias diode using LTSpice. Participants explore how to model this phenomenon, including the necessary parameters and file formats for simulation.
Discussion Character
- Technical explanation, Experimental/applied, Debate/contested
Main Points Raised

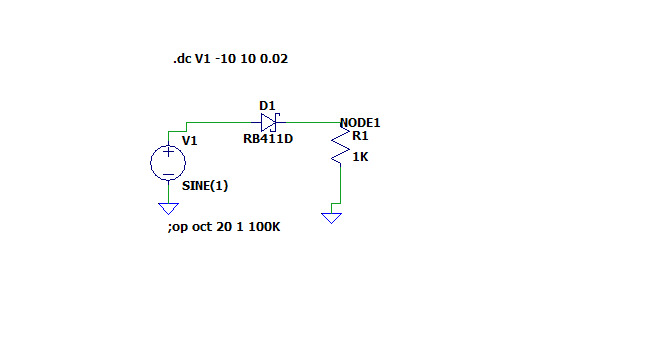

- One participant seeks guidance on simulating leakage current from a reverse bias diode.
- Another participant suggests including a parameter Roff for off resistance in parallel with the ideal diode model.
- A participant mentions the need for a .model statement to define the diode model and inquires about the .net file for LTSpice.
- Instructions are provided on how to modify the diode model in LTSpice, including copying and pasting the model as a .model SPICE directive.

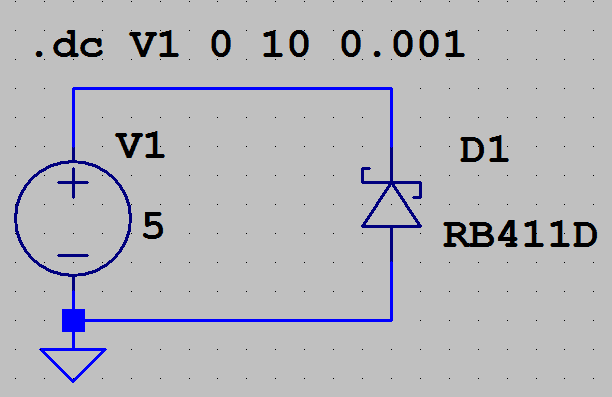

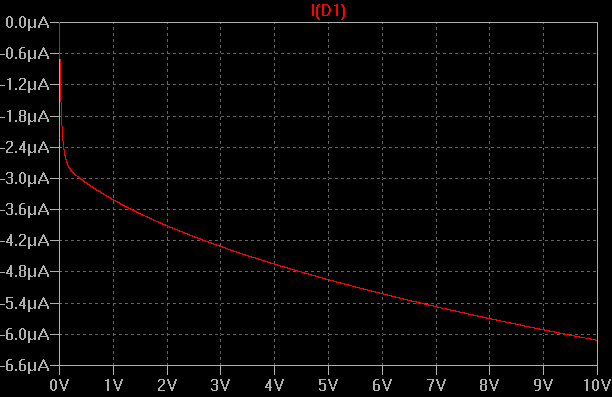

- One participant notes the substitution of a different diode (1N750) due to the unavailability of the RB411D diode in their LTSpice version, and discusses adjusting the Is parameter to modify leakage.
- A clarification is made regarding the distinction between the RB411D Schottky rectifier diode and a Zener diode, highlighting the differences in schematic symbols.
Areas of Agreement / Disagreement
Participants express varying levels of familiarity with LTSpice and its components, leading to differing approaches and suggestions for simulating the leakage current. No consensus is reached on a single method or model.
Contextual Notes
Some participants mention missing files or specific diode models, which may limit their ability to simulate the leakage current effectively. There are also unresolved questions about the correct input methods for LTSpice.
Who May Find This Useful
Individuals interested in diode simulation, particularly those using LTSpice for circuit modeling and analysis.
