Need assistance drawing circuit schematic

The 555 IC timer is a popular integrated circuit used for timing and pulse generation in electronic circuits. It is typically represented with a rectangular shape and has eight pins. To correctly draw it in the circuit schematic, refer to the datasheet for the specific pinout and connection guidelines. As for the capacitors, polarized capacitors are marked with a positive and negative sign, and the non-polarized capacitor is marked with a three-digit code. In summary, the task involves drawing a circuit schematic on a breadboard, using a 555 IC Timer and polarized and non-polarized capacitors. The 555 IC Timer is a rectangular integrated circuit with eight pins, and the capacitors are marked with either a positive or negative sign
  • #1
Tazzlest
1
0
Hi everyone,

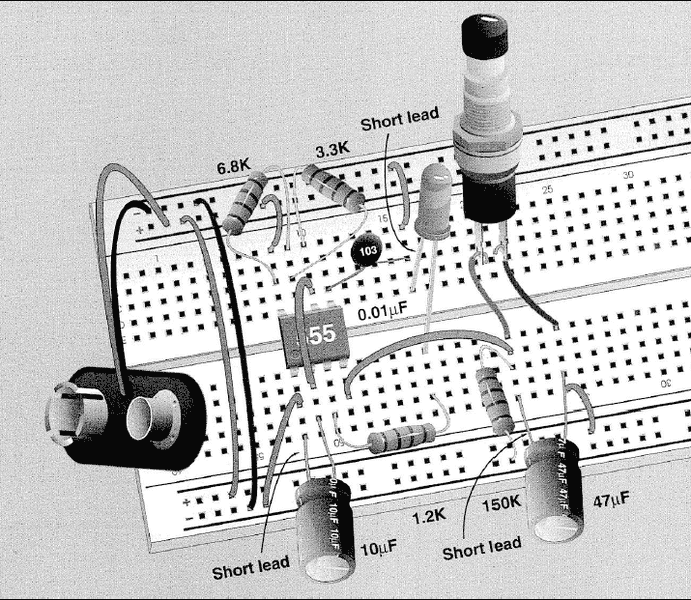

I have this assignment which involves drawing this circuit schematic of a diagram that is put together on a bread board. Only thing is, however, that I do not understand how a breadboard works, therefore it makes this task really difficult. Can someone help me explain how this must be drawn? Here is an image of the diagram:



Apparently there is a 555 IC Timer as well but I don't even know how to approach drawing that in a circuit schematic.

Additional notes:

  • The button used is a momentary pushbutton switch.
    The two capacitors at the bottom of the circuit are polarized capacitors and the capacitor labeled with “103” is non-polarized.

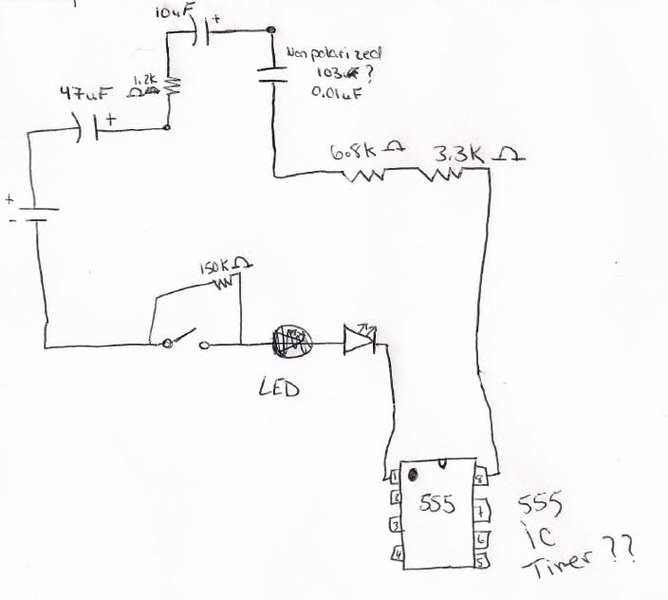

Here is my, what I assume is completely wrong, attempt:
