Norton Equivalent with dependet current source - Problem

In summary, the conversation discusses a problem that the speaker has been unable to solve despite trying various methods. They mention attempting to use an open circuit between two resistors and finding thevenin voltage and Ri, but have encountered difficulties due to a dependent current source. They request help and clarification on the problem and mention a deadline for solving it. A reminder is given to use the proper formatting and show work and attempted techniques.
  • #1
Aleksa Stanojlovic
1
0

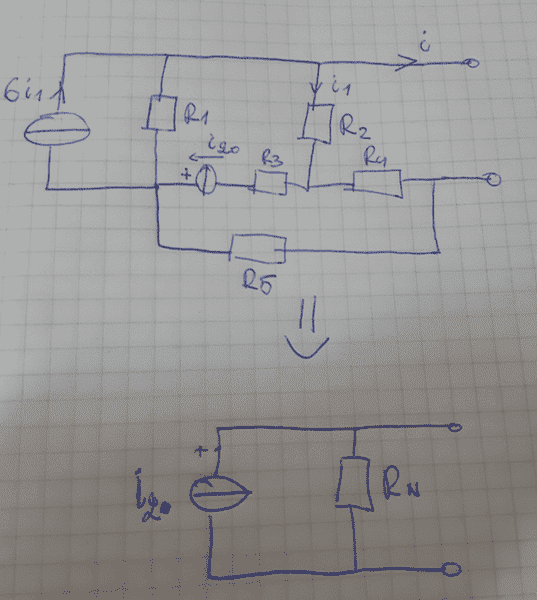

Hey everyone... I've tried to solve this problem with all kind of methods ,but I couldn't do it. I have tried to make an open circuit between R2 and R2 and then to find thevenin voltage and Ri but I have problem solving for thevenin voltage because of this dependent current source... Please give some clue , I must solve this until tommorow ! Thanks in advance

Physics news on Phys.org
  • #2
HI Aleksa, Welcome to Physics Forums.

You need to use the formatting template when posting homework related questions. You also have to show what you've attempted in trying to solve the problem (show your work in detail), describe what techniques you've tried and where you've run into trouble. For example, why did the controlled current source cause problems?

Last edited:
  • #3
Also, are there component values to go along with this problem or is it to be done purely by variables?
