Plotting Bode Magnitude & Phase Plots By Hand

In summary, to plot the magnitude and phase Bode plots for the given system transfer function, first calculate the values of the poles and zeros by factoring the transfer function. Then, using those values, sketch the gain and phase versus frequency. If using MATLAB, input the polynomial into the program to find the roots, and use those values as the poles. The zeros can be found from the factored polynomial in the numerator.
  • #1
kwbake01
10
0
How would you plot the magnitude and phase Bode plots for the system transfer function of (4s^3+40s^2)/(4s^4+405s^3+504s^2+400s)
I plugged it into MATLAB and got a result but my professor wants hand calculations.
Thanks

Physics news on Phys.org
  • #2
kwbake01 said:
How would you plot the magnitude and phase Bode plots for the system transfer function of (4s^3+40s^2)/(4s^4+405s^3+504s^2+400s)
I plugged it into MATLAB and got a result but my professor wants hand calculations.
Thanks

Start by calculating the values of the poles and zeros of the transfer function...

Then once you have the poles and zeros, do you have an idea of how to start plotting the gain and phase versus frequency...?

  • #3
I gave you the wrong transfer function its from a block diagram that looks like this
[4+(40/s)]---->[s^2/(s+100)(4s^2+5s+4)] if i could get the transfer function from that i think i know how to get the poles and zeros

  • #4
kwbake01 said:
I gave you the wrong transfer function its from a block diagram that looks like this
[4+(40/s)]---->[s^2/(s+100)(4s^2+5s+4)] if i could get the transfer function from that i think i know how to get the poles and zeros

Could you please show the block diagram? Do you mean it is a traditional feedback block diagram?

  • #5
It is a block diagram with no feedback so the two blocks above are in series

  • #6
kwbake01 said:
It is a block diagram with no feedback so the two blocks above are in series

So as was pointed out to you in the other thread, how do you get the overall transfer function if the two transfer functions are in series?

  • #7
ok so the transfer function is (4s^2+40s)/(4s^3+409s^2+540s+4) now how do i sketch the bode plot? I know i have to convert the transfer function into a different form but how do i do that

  • #8
kwbake01 said:
ok so the transfer function is (4s^2+40s)/(4s^3+409s^2+540s+4) now how do i sketch the bode plot? I know i have to convert the transfer function into a different form but how do i do that

You need to factor the transfer function to find the poles and zeros. Those are what you use to sketch the transfer function.

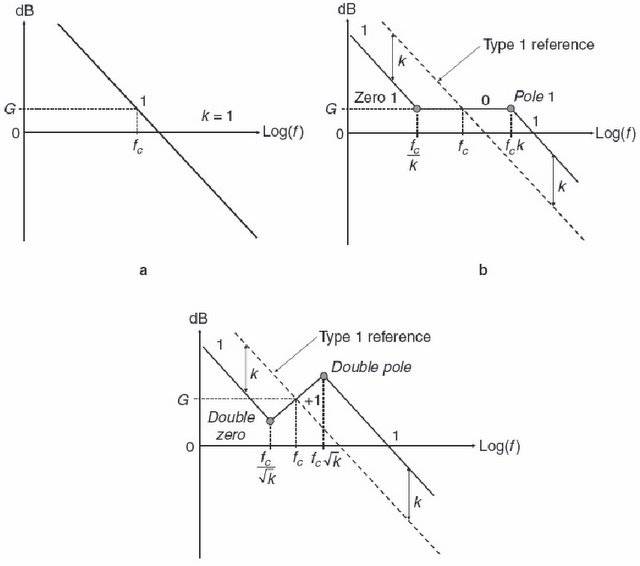

http://i.cmpnet.com/powermanagementdesignline/2008/05/BassoFig319a.jpg


  • #9
instead of the 4 in the transfer function its 400 sorry about that
Berkeman, how do you factor the transfer function?
Thanks for your help so far

  • #10
kwbake01 said:
instead of the 4 in the transfer function its 400 sorry about that
Berkeman, how do you factor the transfer function?
Thanks for your help so far

You factor it like you do any polynomial. You will end up with a factored polynomial in the numerator (which gives you the zeros), and a factored polynomial in the denominator (which gives you the poles).

http://www.google.com/search?source...1T4GGLL_enUS301US302&q=factoring+a+polynomial

.

  • #11
So for the numerator i get 4s(s+10) so then there's a zero at s=-10 and s=0?

  • #12
kwbake01 said:
So for the numerator i get 4s(s+10) so then there's a zero at s=-10 and s=0?

Yes, if that's the numerator, then those are the zeros.

  • #13
for the denominator i but it into MATLAB and this is what i got

>> p = [4 409 540 400]; % p(x) =4s^3+409s^2+540s+400
format long; % print double-precision
roots(p)

ans =

1.0e+002 *

-1.009221534098646
-0.006639232950677 + 0.007416660864940i
-0.006639232950677 - 0.007416660864940i

  • #14
Now those are the poles with 1 real and two imaginary
