Software to model magnetic fields in a core

[fahraynk]

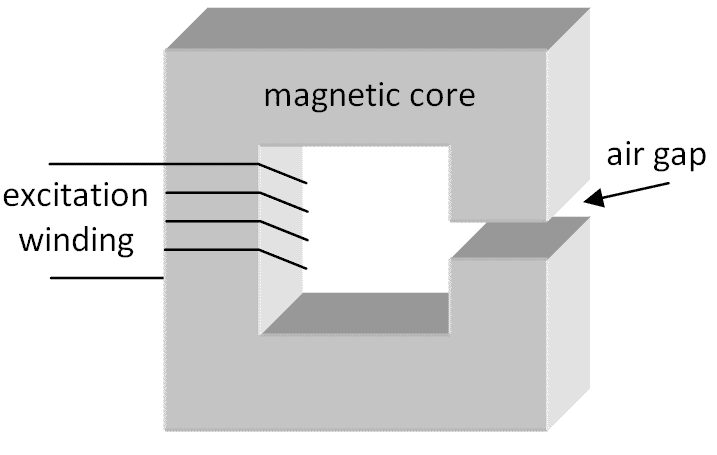

Hi I am looking around for some way to model magnetic fields through a simple core with an air gap similar to this image :

I was thinking Comsol... but Comsol is so hard to figure out, their documentation is terrible... I was looking at FEMM, but its only on windows. Does anyone know how to model this in comsol, or know a easier way to do it on mac ? Otherwise... would I be better off buying a windows machine and using Solidworks or FEMM or something else?



[jedishrfu]

THis quora discussion mentions several other packages:

https://www.quora.com/Where-can-I-find-free-modeling-software-for-Magnetic-Field-Simulation

There MaxFem at sourceforge:

https://sourceforge.net/projects/maxfem/

and here's a youtube video showcasing Vizimag:



[DrClaude]

This shouldn't be too hard to do in Comsol. I found after a quick search the following tutorials which can serve as a basis:

https://www.comsol.se/model/e-core-transformer-14123
https://www.comsol.se/model/multi-turn-coil-winding-around-a-ferromagnet-23641



[berkeman]

See also the other Similar Discussions links at the bottom of the page...
