I Why is an iron cover needed for a solenoid?

  • I
  • Thread starter Thread starter yaxlei
  • Start date Start date
  • Tags Tags
    Iron Solenoid
AI Thread Summary
An iron cover is essential for a solenoid as it enhances the magnetic circuit by concentrating magnetic flux lines, which increases the magnetic flux density. This increased density leads to a stronger magnetic force, as the force generated by a solenoid is proportional to the square of the magnetic flux density. By reducing leakage flux with a high-permeability jacket, more flux is contained within the solenoid, resulting in greater efficiency. The design of modern magnets allows for effective force generation across various shapes. Overall, the iron casing significantly improves the solenoid's performance.
yaxlei
Messages
1
Reaction score
0
Hi everyone,

I've heard that it's better to close the "magnetic circuit" of a solenoid by adding a metal casing around the coils, but I don't get why : people say that it's for focusing the magnetic flux lines but how does it increase the force generated by the solenoid ?

Thanks if you reply, have a nice day.

Physics news on Phys.org
yaxlei said:
but how does it increase the force generated by the solenoid ?

by concentrating the magnetic field in the coil of the solenoid

yaxlei said:
but how does it increase the force generated by the solenoid ?
The magnetic force is proportional to the square of the magnetic flux density.

  • Like
  • Informative
Likes sophiecentaur and yaxlei
alan123hk said:
The magnetic force is proportional to the square of the magnetic flux density.
. . . . . and having the same flux across a small area of gap gives a much higher flux density than when the flux is spread over the whole of space around the coil. You put the armature where the gap is and that gives more force.

The old magnets were nearly all Horseshoe shaped so that you could get a worthwhile flux density somewhere, at least. Modern permanent magnets of all shapes can be strong enough to do a useful job.

alan123hk said:
The magnetic force is proportional to the square of the magnetic flux density.
yaxlei said:
Hi everyone,

I've heard that it's better to close the "magnetic circuit" of a solenoid by adding a metal casing around the coils, but I don't get why : people say that it's for focusing the magnetic flux lines but how does it increase the force generated by the solenoid ?

Thanks if you reply, have a nice day.
With the hi-mu jacket the leakage flux is greatly reduced.
Analytically, when you run the usual amperian loop inside & outside the solenoid there is less of the B integral outside the coil. So that means more flux inside.

Thread 'Gauss' law seems to imply instantaneous electric field'
Imagine a charged sphere at the origin connected through an open switch to a vertical grounded wire. We wish to find an expression for the horizontal component of the electric field at a distance ##\mathbf{r}## from the sphere as it discharges. By using the Lorenz gauge condition: $$\nabla \cdot \mathbf{A} + \frac{1}{c^2}\frac{\partial \phi}{\partial t}=0\tag{1}$$ we find the following retarded solutions to the Maxwell equations If we assume that...
Thread 'Gauss' law seems to imply instantaneous electric field (version 2)'

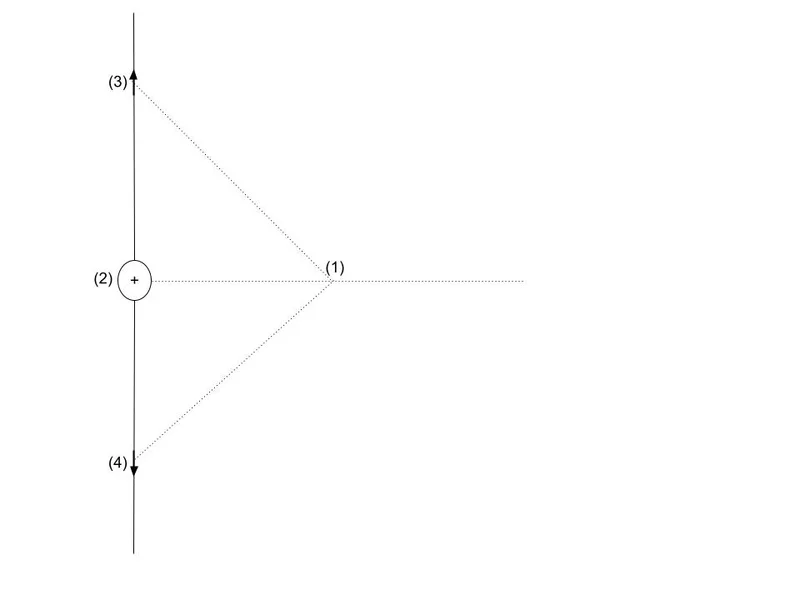

This argument is another version of my previous post. Imagine that we have two long vertical wires connected either side of a charged sphere. We connect the two wires to the charged sphere simultaneously so that it is discharged by equal and opposite currents. Using the Lorenz gauge ##\nabla\cdot\mathbf{A}+(1/c^2)\partial \phi/\partial t=0##, Maxwell's equations have the following retarded wave solutions in the scalar and vector potentials. Starting from Gauss's law $$\nabla \cdot...
