Are my Autocad drawings describing the model well enough?

In summary, there are certain indicators to determine if Autocad drawings accurately depict the model, such as level of detail, consistency, and clarity. The level of detail should be sufficient to convey all necessary information about the model, and consistency can be ensured by following certain guidelines. To make Autocad drawings easier to understand, the use of descriptive labels, organized layout, and a legend or key is recommended. To improve the quality of Autocad drawings, tips such as using high-quality images, utilizing advanced tools, seeking feedback, and practicing regularly can be helpful.
  • #1
Huumah
28
0
Hi there

I'm drawing in Autocad some object for a my autocad class.
I'm supposed to draw it using the 3-D picture as a model

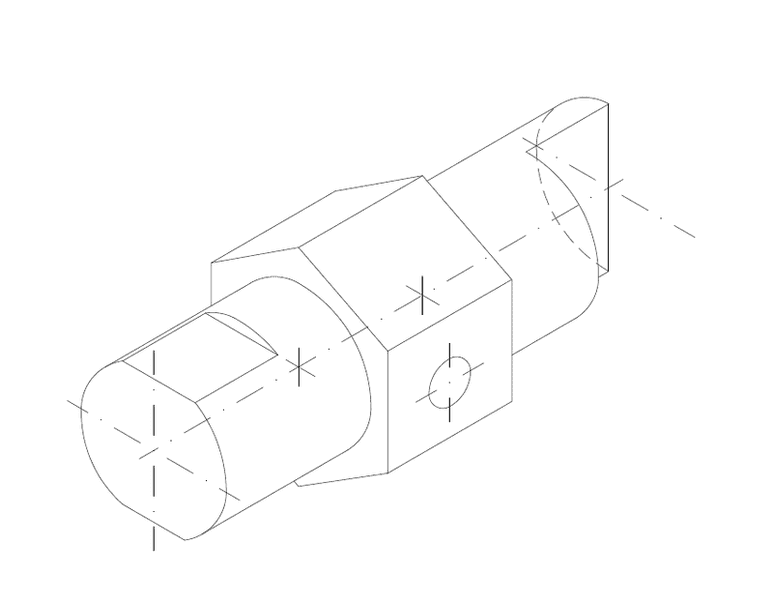

The model

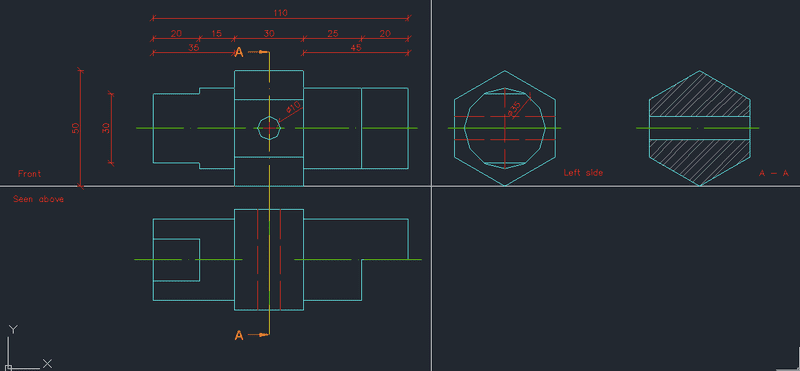

This is what I have drawn.

I saw just wondering if the object I'm drawing is ** described well enough** with these drawings I have done?

Physics news on Phys.org
  • #2
I think you need to draw a view of the right hand side. For example you can't tell if the the section at that end is round or square.


1. How do I know if my Autocad drawings accurately depict the model?

There are a few key indicators that can help determine if your Autocad drawings are describing the model well enough. These include the level of detail in the drawings, the consistency of dimensions and measurements, and the overall clarity and ease of understanding of the drawings.

2. What level of detail should be included in my Autocad drawings?

The level of detail in your Autocad drawings should be sufficient to convey all necessary information about the model. This can vary depending on the complexity of the model, but in general, it should include all relevant measurements, dimensions, and annotations to accurately represent the model.

3. How can I ensure consistency in my Autocad drawings?

Consistency is crucial in Autocad drawings to accurately describe the model. You can ensure consistency by using standard layer names and colors, using the same units and scales throughout the drawings, and regularly checking for any errors or discrepancies.

4. Are there any tips for making Autocad drawings easier to understand?

To make your Autocad drawings more clear and easy to understand, it is important to use descriptive labels and annotations, use a consistent and organized layout, and include a legend or key for any symbols or abbreviations used in the drawings.

5. How can I improve the quality of my Autocad drawings?

There are several ways to improve the quality of your Autocad drawings. Some tips include using high-quality images and graphics, utilizing advanced tools and features in Autocad, seeking feedback and revisions from colleagues or professionals, and continuously practicing and refining your skills.
