Can ANSYS Analyze the Difference in Gap Values for Contact Surfaces?

AI Thread Summary
The discussion focuses on analyzing the gap values between two O-rings using ANSYS for an internship project. The intern has used "node to node" contact commands and probed the gap but found discrepancies in the results. The supervisor is seeking clarification on the reasons for these differences. The O-rings are configured to be frictionless with pressure applied, affecting their deformation and the resultant gap. The goal is to assess leakage through the O-rings and identify the most accurate analysis method.
WIN
Messages
48
Reaction score
10
I'm an intern currently and doing some analytic project in a company. So i am required to determine the gap between 2 contact surface (2 O-rings). I've obtain some result by using "node to node" contact with some commands and also probe "gap". There's some difference between the results and the supervisor want me to find out why is there difference between the gap value. Is there anyway i can find it out? Anyone here know the reason behind the calculations/analysis behind ansys. And is it possible to determine the gap by the deformations of the 2 O-rings. Thanks.

Engineering news on Phys.org
What is the configuration of the O rings and other components ?

the O rings were frictionless to each other and there are pressure acting on them so that both O-rings will press against each other... the end effect is to determine that the leakage through them with Gap and find out which is the better analysis

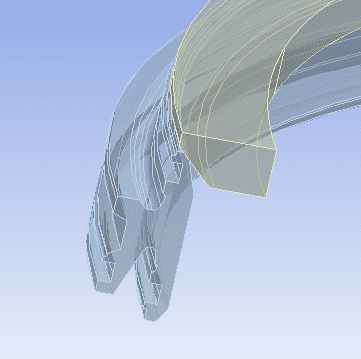

it look this way...


Attachments

  • Unbenannt.PNG
    19.3 KB · Views: 579
