Comparison of Cs, Sr and Pu fallout from meltdown

  • Thread starter Thread starter nikkkom
  • Start date Start date
  • Tags Tags
    Comparison Cs Sr
Join the discussion
Registration is free. Start your own thread to ask a follow-up.
Sign up Log in
3 replies · 2K views
nikkkom
Insights Author
Gold Member
Messages
2,074
Reaction score
397

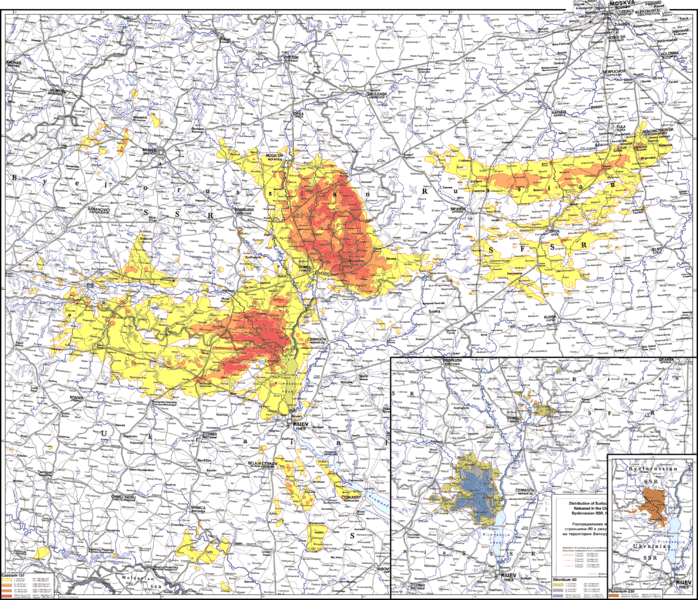

I combined three maps of Chernobyl fallout: Cs-137 map, Sr-90 map and Pu-239 map.
Map scales are the same.
Lowest contour levels for Cs and Sr are the same (1 Ci/km^2), Pu contour is ten times lower (0.1 Ci/km^2).
This visually demonstrates that Cs is about ten times more widespread fallout component than Sr.


Physics news on Phys.org

Discussion

The original file is 12064 by 10320 pixels, forum engine downscaled it. Let me try a "thumbnail attach" option...

nope, this still gives a downscaled image.

nikkkom said:
I combined three maps of Chernobyl fallout: Cs-137 map, Sr-90 map and Pu-239 map.
Map scales are the same.
Lowest contour levels for Cs and Sr are the same (1 Ci/km^2), Pu contour is ten times lower (0.1 Ci/km^2).
This visually demonstrates that Cs is about ten times more widespread fallout component than Sr.
...
10x more than Pu?

Color legend is yellow=Cs,Sr, red=Pu ?

mheslep said:
10x more than Pu?

Color legend is yellow=Cs,Sr, red=Pu ?

No. The same territory is shown three times. (You can easily see the Kiev Sea in each map).
Left map (yellow/red) is Cs.
To the lower right of it is the smaller central region of the same map with Sr-90 - green/blue blob.
On the right again the same territory with orange Pu-239 blob.
