Completely stuck - Attempting to construct a trommel

  • Thread starter DAY1865
  • Start date
  • Tags
    Stuck
In summary: The trommel weighs 245kg and I estimated that at anyone time there would be max of 100 kg of firewood traveling through it. It doesn't have any baffles. It is to all intents and purposes 2 wheel rims (either end) with 30 lengths of steel set at 50mm gaps for the fines to fall though.This is just a rough guess. Assuming that via belts or wheels the trommel rotates about 10 RPM and the motor at 1500 RPM, then it reminds me of a washing machine. 1 to 1.5 HP is adequate for most washing machines.
  • #1
DAY1865
3
0
How did you find PF?: Google search

Hi

I am trying to construct a firewood trommel and have been going in circles (no pun intended) in order to calculate the max torque and HP of the electric motor that might be required. Any help would be greatly appreciated.

I know the following

Circumference =229cm
Radius = 36.45cm
Length of trammel = 263 cm
Weight (inc load of material) = 345kg
Target rpm = 15
Drive wheel (D) = 16cm

Engineering news on Phys.org
  • #2
I had to look up the word trommel. I learned that it is a revolving cylindrical sieve for cleaning or sizing ore. Is this close to what you mean?

  • Like
Likes berkeman
  • #3
Please do not post duplicate threads. I had to delete the other thread.

In the other thread, @berkeman was asking what a trommel is.

  • #4
I'm getting dizzy... o0)

  • Haha
Likes phinds
  • #5
Spot on anorluda. I moved the post to the mechanical engineering thread as I thought that was more appropriate.

  • #6
DAY1865 said:
I moved the post to the mechanical engineering thread as I thought that was more appropriate.
In the future, if you want your thread moved to a different forum, just click the "Report" link in your post, and ask the Mentors to move it. That way we don't end up with duplicate threads all over the place. Thanks! :smile:

  • #7
DAY1865 said:
I am trying to construct a firewood trommel
So now that we know what a trommel is thanks to @anorlunda, why do you want to tumble firewood in one? Is it for cleaning or texturing or something? Thanks.

  • #8
DAY1865 said:
I am trying to construct a firewood trommel and have been going in circles (no pun intended) in order to calculate the max torque and HP of the electric motor that might be required. Any help would be greatly appreciated.
This is a really difficult problem because it depends on the amount of firewood in/passing throught the trommel and how it interacts with the wood. For example, if there are baffles that spin the wood (like those inside a clothes dryer), that adds torque. And there's just no easy way to model it.

My suggestion is to see if you can find existing trommel designs and match them. The good news is you can vary rpm and flow rate to vary torque and hp.

  • #9
berkeman said:
So now that we know what a trommel is thanks to @anorlunda, why do you want to tumble firewood in one? Is it for cleaning or texturing or something? Thanks.

In order to sift out splinters and fines. Customers don't want anything too small.

russ_watters said:
This is a really difficult problem because it depends on the amount of firewood in/passing throught the trommel and how it interacts with the wood. For example, if there are baffles that spin the wood (like those inside a clothes dryer), that adds torque. And there's just no easy way to model it.

My suggestion is to see if you can find existing trommel designs and match them. The good news is you can vary rpm and flow rate to vary torque and hp.

The trommel weighs 245kg and I estimated that at anyone time there would be max of 100 kg of firewood traveling through it. It doesn't have any baffles. It is to all intents and purposes 2 wheel rims (either end) with 30 lengths of steel set at 50mm gaps for the fines to fall though.

  • #10
This is just a rough guess. Assuming that via belts or wheels the trommel rotates about 10 RPM and the motor at 1500 RPM, then it reminds me of a washing machine. 1 to 1.5 HP is adequate for most washing machines.

Are you the DIY type? There are several past thread here on PF for how to find a used washing machine motor and how to wire it up.

  • #11
DAY1865 said:
... gaps for the fines to fall though.
What are fines?

  • #12
phinds said:
What are fines?
Any small particles, twigs, dust, rock flour, ...

  • #14
When rotating, the wood will be carried part way up the wall. The distance will be determined by how much wood is being processed at the time. The energy input will lift the wood approximately one trommel radius per half turn of the trommel. Estimate the motor power requirement from the weight being processed, radius and time to rotate a quarter of a turn.

  • Like
Likes russ_watters
  • #15
DAY1865 said:
I know the following Circumference =229cm Radius = 36.45cm
Target rpm = 15 Drive wheel (D) = 16cm
I estimated that at anyone time there would be max of 100 kg of firewood traveling through it. It doesn't have any baffles.
15 RPM = 4 seconds per turn = 1 sec per 90 degrees.
100 kg will be lifted to a height of about 0.40 m every second.

Potential Energy = m·g·h
100 kg * 9.8 m/s² * 0.4 m = 392. joules, every second = 400 watt.
Call it 745 watt = 1 HP.

A 16 cm drive wheel on a 73 cm drum gives a final drive ratio of 4.55
The 16 cm diameter drive wheel must turn at 15 * 4.55 = 68.25 RPM.
A motor might turn at about 1650 RPM.
So you will need an additional reduction of 1650 / 68.25 = 24.2
That will probably need a two stage gearbox on the motor.

You may have problems with the drive wheel slipping unless you use a roller chain drive. That would allow a smaller chain drive sprocket on the motor.

Sap from wood may stick to dry metal, so you may need to spray a fine mist of water on the metal grid bars to prevent buildup of sap and then debris that might block the grid.

  • Like
Likes sysprog
  • #16
Baluncore said:
A 16 cm drive wheel on a 73 cm drum gives a final drive ratio of 4.55
The 16 cm diameter drive wheel must turn at 15 * 4.55 = 68.25 RPM.
A motor might turn at about 1650 RPM.
So you will need an additional reduction of 1650 / 68.25 = 24.2
That will probably need a two stage gearbox on the motor.
Or a jackshaft with a reduction ratio of 4.8± from motor to jackshaft and jackshaft to drive wheel.

Advantage: cheaper than a gearbox.
Disadvantage: needs guards so you don't lose body parts :eek:

Cheers,
Tom

  • Like
Likes sysprog
  • #17
You may be overthinking this. A lot of the sorting for gravel is done with sloped screens. Given the big size difference between what you want to keep vs discard, putting it on a simple conveyer and running it down a 2" mesh grate is probably sufficient.

I think trommels are used to separate material where it's smaller, and somewhat stickier, or where the division between sizes is small.

  • Informative
Likes anorlunda
  • #18
Well, this might be a very disappointing attitude but if everything else fails ... well, it still works, you see :sorry:
Pick an existing trommel from somewhere and just check the engine power...

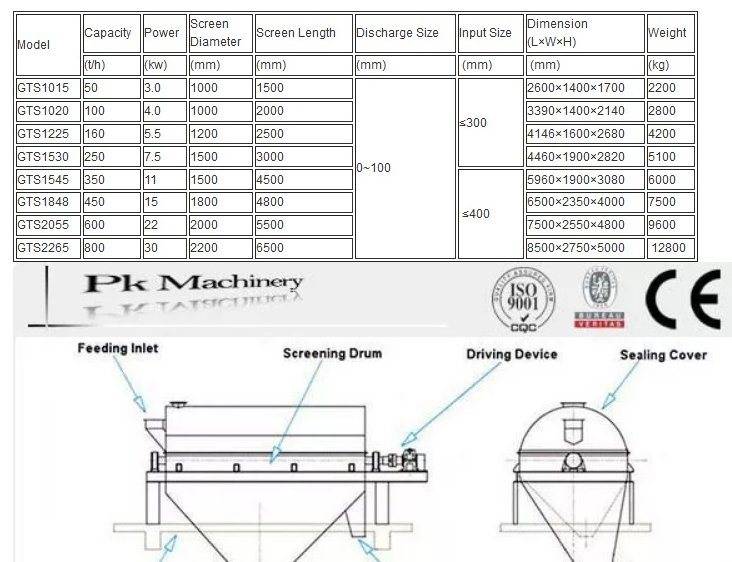

(Source is some random trommel-distributor from an online marketplace)

Last edited:
  • #19
Sherwood Botsford said:
You may be overthinking this.
That is engineering.
Sherwood Botsford said:
A lot of the sorting for gravel is done with sloped screens. Given the big size difference between what you want to keep vs discard, putting it on a simple conveyer and running it down a 2" mesh grate is probably sufficient.
The trommel breaks up lumps of feed-stock by dropping and tumbling them against each other. Because it rolls short lengths of firewood, it actively removes and then separates bark from the logs being processed. The bark removal process is not satisfied with a simple screen.

Rive said:
Pick an existing trommel from somewhere and just check the engine power...
Good data. The smallest is 50 tonne per hour, with 3 Kw. But the OP is building a smaller system, so the 1 HP motor seems like a reasonable solution that should not stall.

  • #20
Baluncore said:
The bark removal process is not satisfied with a simple screen.
When he said remove "fines", I get the idea that it is just removing the small pieces that fall off easily and that might litter the trunk of the consumer's car on the trip home. Not a complete debarking. Otherwise, I agree with everything you said.

I still suspect that a washing machine size motor would be adequate.

  • #21
anorlunda said:
I still suspect that a washing machine size motor would be adequate.
I agree. But a hand-fed firewood processor may easily be over-fed and so choke or stall. It is important that if it chokes there be sufficient power to keep rotating against asymmetry of the choked load. That will protect drive belts from damage or fire, or a motor stall damaging the motor before a breaker trips.

Different species in different regions will have different bark. We do not know the local conditions or the processing requirements so I must consider all cases as this thread may be read world wide.

  • Like
Likes Bystander
