Determining Current Through 6 & 9 with Maxwell & Kirchhoff

Click For Summary
SUMMARY

The discussion focuses on calculating the current through nodes 6 and 9 using both Maxwell's Current Circulation Method and Kirchhoff's Laws. Participants emphasize the necessity of applying Kirchhoff's Current Law (KCL) and Kirchhoff's Voltage Law (KVL) alongside Maxwell's equations to achieve accurate results. The conversation highlights the importance of demonstrating all calculations and relevant equations to facilitate understanding and assistance from peers.

PREREQUISITES
  • Understanding of Maxwell's Current Circulation Method
  • Familiarity with Kirchhoff's Current Law (KCL)
  • Knowledge of Kirchhoff's Voltage Law (KVL)
  • Ability to perform circuit analysis and show work clearly
NEXT STEPS
  • Study the application of Maxwell's equations in circuit analysis
  • Review examples of Kirchhoff's Laws in electrical circuits
  • Practice solving circuit problems using KCL and KVL
  • Explore advanced circuit simulation tools for visualizing current flow
USEFUL FOR

Electrical engineering students, circuit designers, and anyone involved in analyzing electrical circuits using Maxwell's and Kirchhoff's principles.

atotoarere
Messages
4
Reaction score
0

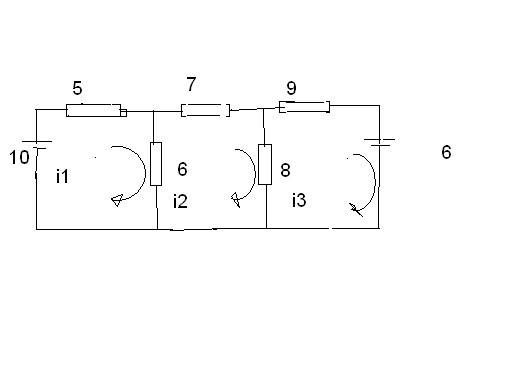

(1) USE MAXWELL CURRRNT CIRCULATION METHOD TO DETERMINE THE

CURRENT THROUGH 6 AND 9.

(2) USE KIRCHHOFFS LAW ALSO TO DETERMINE THE CURRENT THROUGH 6

AND 9.





Thanks.


Attachments

  • ass1.JPG
    7.3 KB · Views: 393
Physics news on Phys.org
Use the Homework Posting Template and show us the relevant equations and your work. You must show your work to get our help.
