Diffraction of red LED light picture with spots

In summary, the conversation is about taking pictures of a small glass nozzle with a metal coating and a sphere of liquid at the end. The pictures were taken with low light and a single red LED, with some overhead white lights. The LED light hits the sphere of liquid at an angle and is pulsing at 10 Hz. To make the image brighter, a mirrored surface was placed under the nozzle. The exposure time was shortened and the overhead lights were turned off. There was no change in focus, magnification, or object position. The final image shows the object in better focus, but the depth of focus is not as large as the sphere of liquid.
  • #1
phrendlie
2
0
I would like to know what the dots are. This reminds me of X-ray diffraction, but I am imaging a sphere of liquid on the end of a microcapillary nozzle (2um inner diameter glass nozzle with sputtered gold outer coating on nozzle).
I am taking a picture of a small glass nozzle with a metal coating. There is a sphere of liquid at the end of the nozzle This sphere has radius ~10 to 20 um. Then I lowered the lights and took a long exposure (1 second). The lighting is a single red LED, with some overhead white lights.
The LED hits the sphere of liquid at ~120 degrees to the camera with the light coming from behind the object. By this, I mean that the light has to bend ~60 degrees within the sphere to reach the camera. The LED light is pulsing at 10 Hz.

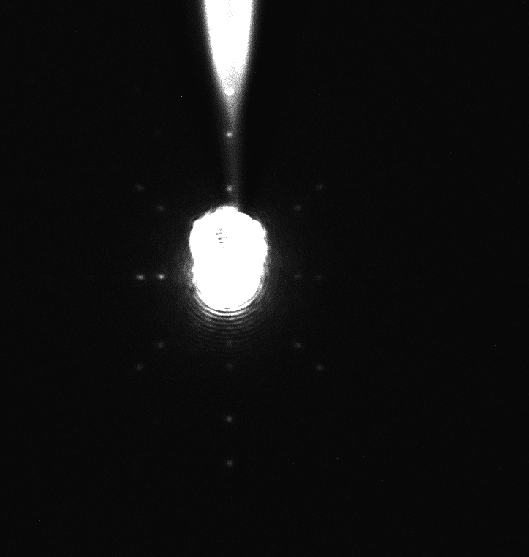

Low light, long exposure (1 second) with overhead lights on:

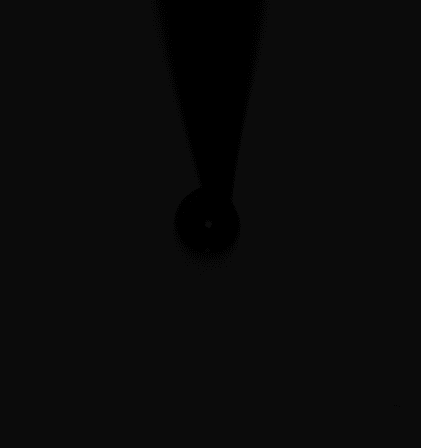

Same, with overhead lights off:

Then I put a mirrored surface under the nozzle to make the image brighter (requiring shorter exposure time)
Exposure time 8 ms, no change in focus or magnification, no change in light, camera, or object position. Overhead lights off, so all light is red, nearly monochromatic:

Physics news on Phys.org
  • #2
If it helps, here is the object in better focus, but notice that my depth of focus is not even as big as the sphere of liquid:
