Fabricating PIN Diode with Boron, Si and Phosphorus

  • Thread starter mabm_05
  • Start date
  • Tags
    Diode Pin
In summary, the conversation is about a fabricated PIN diode using boron, silicon, and phosphorus. The fabrication method involves etching two contacts on a silicon wafer and doping it with boron and phosphorus, leaving an I-region between the contacts. The speaker has measured the I-V characteristic of the diode but is looking for a formula or reference to compare the measurement with. They ask for help in finding the formula.
  • #1
mabm_05
3
0
Hii...

I already fabricated PIN diode using boron (P), Si (N-type), and phosphorus (N). For the method, I etching two contact at Si wafer then doping the boron and phosphorus... there are width I-region (Si) between the contact.

A already measured the I-V characteristic of PIN diode but don't have any formula or reference for compare with the measurement. I want know the formula to prove my IV Characteristic PIN diode. help me...??

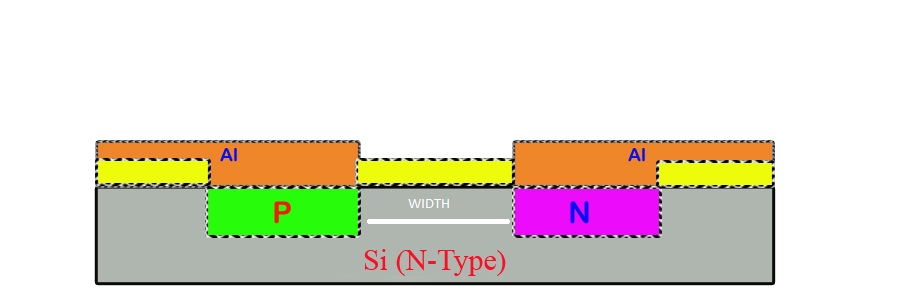

Picture my fabricated PIN diode :

http://1.bp.blogspot.com/_cyXmnum7K...AAASE/wP1YD3xEjJg/s1600/PIN+diode+2+copy.jpg"

Last edited by a moderator:
Engineering news on Phys.org
  • #2
every one can't help me?
