OK well they used CAMS data to estimate fuel damage ratio and only time will tell if these estimates are any good. At this stage all we can say is that some people will accuse these estimates of being part of the 'much too positive' spin from the company, but I cannot judge what the reality is. The damage ratios sound a bit low given the estimates about meltdown we have seen since. Obviously this is old data and I mention it now only in connection with the way this particular discussion has evolved.

http://www.tepco.co.jp/en/press/corp-com/release/betu11_e/images/110427e19.pdf

The graphs in that document are another good visualisation of what I was saying about reactor 3 S/C CAMS being low too. And reactor 1 isn't exactly seeing huge numbers in the S/C.

I am left assuming that the analysis I questioned is using only the differing trends of D/W and S/C CAMS at a key moment to make a point, rather than the difference in magnitude of D/W and SC measured levels, and that it is to be expected that S/C levels will be lower than D/W ones? In this case the lack of measurements during crucial times for reactors 1 & 3 make it impossible to look for similar or dissimilar patterns at the other reactors, making it harder for me to evaluate the plausibility of his argument.

Well, I don't accept his argument at all. It is a double non sequitur: One cannot conclude from the observation of a decreasing trend of radioactivity in the suppression chamber that it must be leaking. And even if one could, as you have pointed out, one cannot conclude from observing a current leak in the S/C , that it was also leaking at some time well before that observation.



[SteveElbows]

Yeah. Mind you I am still interested in possible earlier leaks at reactor 2, but for different reasons.

Firstly there is that stuff I already went on about to do with them having to assume a leak to make their disaster modelling give pressure results that are in line with measured pressures.

And then there is the question of the reactor pressure in the period before fuel melting. How come reactor 3's RPV pressure was above 7 MPa for large periods of time, but reactor 2's was only 7.0 MPa the first time they measured it at 20:07 on the 11th, and was then only 6.3 or lower until the time that water level dropped and melting started?



[MadderDoc]

<..>
And then there is the question of the reactor pressure in the period before fuel melting. How come reactor 3's RPV pressure was above 7 MPa for large periods of time, but reactor 2's was only 7.0 MPa the first time they measured it at 20:07 on the 11th, and was then only 6.3 or lower until the time that water level dropped and melting started?

Yes. unit 2 and 3 seem to be very much twin sisters as regards size and equipment. Comparable periods for your question on pressure developments could be, say, from the earthquake until noon on March 14 in the case of unit 2, and from the earthquake until noon on March 12 in the case of unit 3. Overall it seems to me that somehow reactor 2 utilised its limited heat sinks more efficiently than reactor 3 during these first periods after the earthquake, and therefore was able to be held at a somewhat lower pressure. (Either that, or unit 2 had 'extra' sinks for the decay heat at its disposal)



[clancy688]

Thanks to tsutsuji for providing this paper:

http://sciences.blogs.liberation.fr/files/irsn_rapport_complet-fukushima-1-an-.pdf

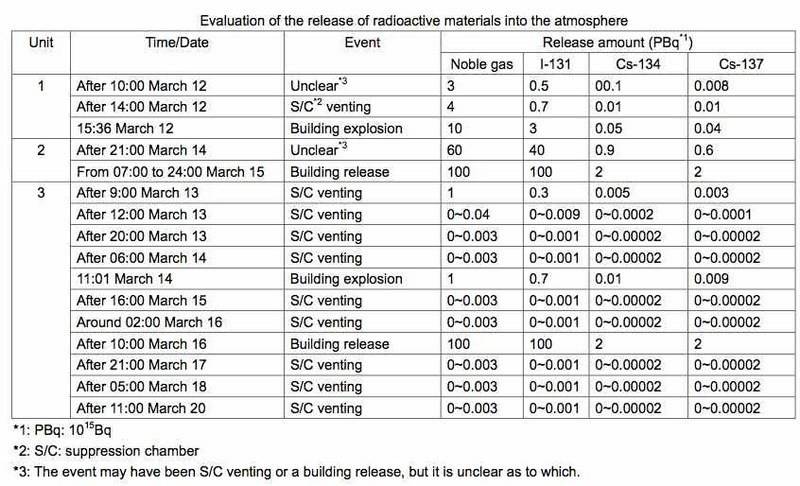

On page 46, there's a table where IRSN lists its release estimates. For Cs-137: Unit 1 1 PBq, Unit 2 6 PBq, Unit 3 14 PBq. The NISA estimate which makes Unit 2 responsible for 90% of the release is right below it, so IRSN has to be aware that the japanese think otherwise. Perhaps they are explaining why somewhere in the text...?

Unfortunately, I don't understand a single word french...



[etudiant]

Thanks to tsutsuji for providing this paper:

http://sciences.blogs.liberation.fr/files/irsn_rapport_complet-fukushima-1-an-.pdf

On page 46, there's a table where IRSN lists its release estimates. For Cs-137: Unit 1 1 PBq, Unit 2 6 PBq, Unit 3 14 PBq. The NISA estimate which makes Unit 2 responsible for 90% of the release is right below it, so IRSN has to be aware that the japanese think otherwise. Perhaps they are explaining why somewhere in the text...?

Unfortunately, I don't understand a single word french...

The study does not give a specific explanation of the differences, but blandly notes it and moves on to note that the overall results are comparable.
However, it is possible to infer that because the winds were onshore while #2 was emitting, shifting to offshore when #3 was the focus ( discussion on p50), reactor 2 was responsible for most of the land pollution damage.
The estimates given in Science were for the total site emission, yet even those cover a factor of 3 range, so much better estimates will be laborious to obtain.



[MadderDoc]

From the recent torus room survey, the radioactivity of the room is very high everywhere, but particularly so in two of the surveyed areas, one area at the door entry level to the NE corner of the torus room, and another at the inspection level at the NW corner.

The simplest explanations I can think of are, respectively, that the door entry level is just closer to the surface of the accumulated highly radioactive water below, while the hotspot in the NW corner could be because there's a leak to the torus room from the PCV, somewhere above the waterline of the torus room, either a leak from the torus, or directly from the PCV.

Also interesting is that we see some damage to insulation around pipes several places, the shape of which seems to indicate they've been exposed to some low key event of internal overpressure, or external vacuum, relative to the insulation capping of those pipes. But really nothing serious of an explosive nature seems to have happened in the room.



[SteveElbows]

Unless interesting new information emerges, for now I am going to stick with the conclusion that reactor 2 released more radioactive substances because of a failure to wet-vent.

On page 152 of Tepco's interim report, they manage to make this point without actually drawing attention to high releases from reactor 2:

http://www.tepco.co.jp/en/press/corp-com/release/betu11_e/images/111202e14.pdf

[Action plan 3: Impact mitigation measures after core damage]
A large amount of radioactive materials will not be released if during PCV venting is conducted before core damage. In Fukushima Daiichi Units 1 and 3, the release of radioactive materials was reduced by releasing radioactive materials by wet well (S/C) venting through a water filter after core damage occurred.

It can be said that taking measures to enhance the certainty of venting in strategy 2 will also be effective after core damage has occurred.

Also, in order to cool the PCV, procedures that enable water injection to the PCV will need to be prepared in addition to water injection to the reactor through fire engines, etc.



[MadderDoc]

Unless interesting new information emerges, for now I am going to stick with the conclusion that reactor 2 released more radioactive substances because of a failure to wet-vent.<..>

Can you sketch out, please, the main pieces of evidence and the thoughts that gave them order, which made you come to the conclusion that Unit 2 released more radioactive substances than Unit 3?



[SteveElbows]

I won't be repeating all of that since I posted so much in this thread already. I have acknowledged that it is possible to underestimate the release from reactor 3 due initially to wind direction, and then because it could have got mixed up with events occurring at reactor 2.

So no, I cannot be absolutely sure that reactor 2 released much more than reactor 3. We have a range of reasons why it might of, some of which I found quite compelling. Given the timing of the melt, failure to vent, pressure the containment was under and likely contents of its atmosphere when it started to leak in a vigorous fashion, I have no trouble with this conclusion, although I am always ready to change it or learn more if the chance presents itself.

One way which we may further explore the differences between reactor 2 & 3 is by looking at the timing of the release of substances from the fuel, and the timing of vents. If we would expect the bulk of the substances to enter the atmosphere of containment during the main initial fuel melting, then scrubbing that via a wet vent before containment leaks in a major way should make quite a large difference to how much stuff enters the environment. This is not a subject I have expert knowledge in so I would like to know more about the timing of releases from fuel.



[MadderDoc]

I won't be repeating all of that since I posted so much in this thread already. I have acknowledged that it is possible to underestimate the release from reactor 3 due initially to wind direction, and then because it could have got mixed up with events occurring at reactor 2.

Yes, it would seem unfair to neglect giving unit3 some credit from the observed significant higher on-site deposition in the track of the unit 3 explosion cloud, towards the ocean. It is difficult to imagine that deposition stopped at the waterfront, but it is difficult to quantify that emission, to come at same terms as the measurements from the on site monitoring points. However, no unit would be a serious contender to the title if it could not bid in on the large contamination events that followed and showed up in those measurements. As you indicate, unit 3 as well as unit 2 could do that.

So no, I cannot be absolutely sure that reactor 2 released much more than reactor 3. We have a range of reasons why it might of, some of which I found quite compelling. Given the timing of the melt, failure to vent, pressure the containment was under and likely contents of its atmosphere when it started to leak in a vigorous fashion, I have no trouble with this conclusion, although I am always ready to change it or learn more if the chance presents itself.

I understand your point, but how can we be certain, that melting of the fuel did not proceed in stages in either or both of the reactors, and continued after the point when both reactors had more or less free exhaust from the PCV to the atmosphere. (Unit 3 will of course claim to have had the freeest and most vigorous exhaust, and to have colored it in all nuances from white to black :-)

One way which we may further explore the differences between reactor 2 & 3 is by looking at the timing of the release of substances from the fuel, and the timing of vents. If we would expect the bulk of the substances to enter the atmosphere of containment during the main initial fuel melting, then scrubbing that via a wet vent before containment leaks in a major way should make quite a large difference to how much stuff enters the environment. This is not a subject I have expert knowledge in so I would like to know more about the timing of releases from fuel.

It would seem to me that the 5th floor of unit 2 should have functioned as a condenser and retained a significant fraction of radioactive material within its walls, on the assumption that the route of the assumed bulk of the total radioactive material emitted from the plant did pass though that space.



[SteveElbows]

It would seem to me that the 5th floor of unit 2 should have functioned as a condenser and retained a significant fraction of radioactive material within its walls, on the assumption that the route of the assumed bulk of the total radioactive material emitted from the plant did pass though that space.

Well I believe that this and numerous other details that are of interest to this thread, have been at least briefly mentioned by TEPCO in their new report of release estimates.

However at the time of writing it is only available in Japanese, and computer translation of this document in particular gave quite horrible results in many places. So I really need to wait for better translation before discussing any of these details further.

http://www.tepco.co.jp/cc/press/betu12_j/images/120524j0105.pdf



[SteveElbows]

OK I've had to make do with machine translation because it doesn't sound very likely that TEPCO will be translating the full document, only the shorter ones.

I will talk on the main thread about the report as a whole as it obviously deals with all reactors, but from what I think I've been able to make sense of in relation to reactor 2:

Even though they are unsure whether the vent took place, they seem to be focussing far more on the March 14th wet vent attempt, rather than the very brief dry vent attempt just after midnight on the 15th. Probably because of ability to speculate a link between increased site dose rates and the wet vent attempt, quite a large amount of emissions are pencilled in as occurring during this time and coming from reactor 2 (see table on page 9). That table is interesting for many other reasons also, including the fact that these figures are probably more in line with some peoples expectations in terms of which reactors are to blame for radioactive release - reactor 3 (and to a lesser degree reactor 1) gets a much larger share of the blame in this table, reactor 2 totals are still rather large but don't make other reactors irrelevant by comparison.

When they talk of soil contamination, March 15th reactor 2 emissions are the main focus for reasons we already discussed before. They have various diagrams showing wind direction and presumed plume path during variety of different venting operations, and they have the rain radar images from late on the 15th to the north west.

In regards to non-vent leaks, they talk about such matter quite a bit. They acknowledge steam escape from top of containment. Here is the original Japanese for a key part of the detail on this as it pertains to reactor 2:

1.3.2 2 号機原子炉直上部からの蒸気確認
平成 23 年 9 月 17 日に、2 号機 R/B のブローアウトパネル開口部からダストサ
ンプリングを実施した際に動画を撮影したところ、原子炉直上部から蒸気発生が 確認された(別図 3)。具体的に蒸気がどこから漏えいしているのか現時点では確 認出来ていないが、動画映像から蒸気の漏えい箇所としては原子炉の上部に位置 する PCV トップヘッドフランジ上部の原子炉ウェル上蓋付近からであると推定さ れる。また、使用済燃料プールの温度が高くない(平成 23 年 9 月 17 日時点で約 34°C)ことから、確認された蒸気は PCV から漏えいしてきたものであると考えら れる。PCV トップヘッドフランジ(及び原子炉ウェル上蓋)の構造は 1 号機、3 号機とも 2 号機と同様であり、1・3 号機でも 2 号機と同じ PCV 漏えいパスが存 在している可能性が考えられる。
さらに、現在判明しているR/B内の空間線量測定結果によると、R/B5階で確認 された高線量(約200mSv/h)は、4階以下では確認されていない(別図4)。2号機 はR/B構造が維持されており、線量の分布と漏えい経路には相関性があると考えら れることを踏まえると、5階からの漏えいが主たるものであったことを示唆してい る。



[MadderDoc]

<..>
Even though they are unsure whether the vent took place, they seem to be focussing far more on the March 14th wet vent attempt, rather than the very brief dry vent attempt just after midnight on the 15th. Probably because of ability to speculate a link between increased site dose rates and the wet vent attempt, quite a large amount of emissions are pencilled in as occurring during this time and coming from reactor 2 (see table on page 9).

I think the reason is much simpler: there's a measured peak in dose rate at the main gate MP in the evening on March 14th, but none after midnight. When there is no peak in published MP data Tepco can freely assume there is no emission. Otherwise of course, when there is a published peak.

As regards the peak in the evening of March 14th, using Google Translate, I glean from the note that Tepco is assuming it came from exhaust stack 1+2, because the emission point is unknown.

If that is the evidential standard, I am pretty sure I can mount better evidence for the proposition. that the March 14th evening peak was due to emissions from unit 3.



[jim hardy]

I am pretty sure I can mount better evidence for the proposition...

Why Doc - surely you don't think attention was ever directed away from unit 3 !

old jim



[Sharma SK]

Lot of discussion is going on why maximaum radioactive material was released from unit 2 of Fukushima. Pirma facie it looks surprising even unbelivable as unit 2 building is least damaged, no hydrogen explosion took place in unit 2, its cooling system (RCIC) lasted for 70 hrs after the earthquake, core damage started later as compared to other units and no venting was done from unit 2 containment. Then why more radioactive material got released from unit 2 than oter units. Answer of this is very simple, that is, because no venting was done or could not be done from unit 2 containment.
As no venting could be done from unit 2, its containment got pressurised and it failed due to overpressure. Venting could not be done as rupture disc in hardened vent header did not rupture. Containment failure took place at weakest links such as penetrations, seals and gaskets. Activity released from drywell through these leaky points and came into reactor building. From reactor building it came into atmosphere through blowout panel of reactor building which had got opened during unit 1 hydrogen explosion on 12th March. Since release was from drywell, it was unfiltered release and that too it was ground level release. It is a case of 'suppression pool bypass'.Because of failure of containment penetrations, water injected for core cooling came into turbine building through pipe trenches/cable trenches and it contributed in release through water route. In contrast, containment venting could be done in unit 1 and unit 3. This venting was done from suppression pool air space. Radioactive material coming to suppression air space has to pass through suppression pool water. During this passage much of the radioactivity (around 99%) is filtered out. Water acts as filter in this case, since most of the volatile fission products like cesium, iodine, telerrium get dissolved in it and particulates get suspended in it. Remaing 1% contains mostly noble gases which get dispersed in atmosphere, do not dissolve in water/rain and thus do not fall out on the ground.
One line answer to the question why maximum radioactivity was released in atmosphere from unit 2 is that "Activity released from unit 2 was mostly unfiltered while from unit 1 &3 it was mostly filtered."



[zapperzero]

One line answer to the question why maximum radioactivity was released in atmosphere from unit 2 is that "Activity released from unit 2 was mostly unfiltered while from unit 1 &3 it was mostly filtered."

Too bad we have no evidence for this most parsimonious and elegant hypothesis which has been discussed. Or do we?



[Sharma SK]

Too bad we have no evidence for this most parsimonious and elegant hypothesis which has been discussed. Or do we?

Pl give rationale for your comments. If you want to prove someone wrong then prove it by logic not by nasty comments.
Sharma sk



[MadderDoc]

Lot of discussion is going on why maximaum radioactive material was released from unit 2 of Fukushima. Pirma facie it looks surprising even unbelivable as unit 2 building is least damaged, no hydrogen explosion took place in unit 2, its cooling system (RCIC) lasted for 70 hrs after the earthquake, core damage started later as compared to other units and no venting was done from unit 2 containment. Then why more radioactive material got released from unit 2 than oter units. Answer of this is very simple, that is, because no venting was done or could not be done from unit 2 containment.
As no venting could be done from unit 2, its containment got pressurised and it failed due to overpressure. Venting could not be done as rupture disc in hardened vent header did not rupture. Containment failure took place at weakest links such as penetrations, seals and gaskets. Activity released from drywell through these leaky points and came into reactor building. From reactor building it came into atmosphere through blowout panel of reactor building which had got opened during unit 1 hydrogen explosion on 12th March. Since release was from drywell, it was unfiltered release and that too it was ground level release. It is a case of 'suppression pool bypass'.Because of failure of containment penetrations, water injected for core cooling came into turbine building through pipe trenches/cable trenches and it contributed in release through water route. In contrast, containment venting could be done in unit 1 and unit 3. This venting was done from suppression pool air space. Radioactive material coming to suppression air space has to pass through suppression pool water. During this passage much of the radioactivity (around 99%) is filtered out. Water acts as filter in this case, since most of the volatile fission products like cesium, iodine, telerrium get dissolved in it and particulates get suspended in it. Remaing 1% contains mostly noble gases which get dispersed in atmosphere, do not dissolve in water/rain and thus do not fall out on the ground.
One line answer to the question why maximum radioactivity was released in atmosphere from unit 2 is that "Activity released from unit 2 was mostly unfiltered while from unit 1 &3 it was mostly filtered."

It does not seem to me to follow from the fact that there were filtered vents from e.g. unit 3, that the majority of activity released from that unit was filtered. Looking at things from the plant monitoring posts, any contender to the title of most polluting unit would need to claim the lions share of the major emission observed during the morning of March 15th. Photos show Unit 2 as well as Unit 3 steaming at that time presumably directly from their leaking containments. I can see no good reason to think that the steam from unit 3 was at that stage particularly more 'clean' just because successful filtered vents were done in that unit on March 13th. This would seem to me to be like assuming that most of the core damage in Unit 3 should have preceded those vents.



[zapperzero]

Pl give rationale for your comments. If you want to prove someone wrong then prove it by logic not by nasty comments.
Sharma sk

MadderDoc is much more polite and well-spoken than me and he has spelled it out. I will point out also that, although it does not appear to have done anything spectacular on the 15th, Unit 1 is the only one which had to be covered with a tent. Might the most contaminated unit have been also the most polluting, overall?

Point is, without extensive information that would allow us to piece together something close to the real accident sequence, we can't really tell. Speculation is (VERY uncharacteristically for this forum) allowed by the mods in the Fukushima technical threads. But, it should be clearly understood as such.



[SteveElbows]

I think this particular stuff goes beyond the usual unsubstantiated speculation though. Yes there are many questions remaining, but those who are not very keen on the idea that reactor 2 released more into the environment than the others might want to investigate the following sort of thing further:

Given that the failure to wet-vent at an important moment is key to this theory, can't someone look into details about when the most significant amounts of radioactive material is expected to be present in the atmosphere and steam from containment?

Because left to a common-sense rather than proper scientific view of this issue, I certainly don't have any trouble believing that the time during and immediately after the core is completely exposed is a rather crucial one. And at reactors 1 & 3 we had wet-venting operations conducted in the aftermath of the core uncovering, and before we saw evidence of steam rising from upper containment failures.

The other factor is the pressure of containment at the time of failure & mass ejection of steam etc.

These are the reasons I am not going to reject the hypothesis that reactor 2 had far more significant environmental implications, although as discussed in the past this is complicated by the fact that weather factors meant any releases from reactor 2 were far more likely to have an impact on Japanese land.



[tsutsuji]

http://www3.nhk.or.jp/news/genpatsu-fukushima/20120724/2000_roatsu.html Shinichiro Kado of Tokyo university and Masamichi Chino of JAEA studied accident response records and radiation doses in the surroundings and concluded there is a high probability that radiations were released from unit 2 while the operators decreased reactor pressure by opening the S/R valve. 3 radiation peaks were observed at the Fukushima Daini plant, located 10 km away in the South, during the 5 hour lapse of time after 10:00 PM on 14 March 2011. Each peak happens about one hour after the S/R valve was operated. According to the specialists, there is a high probability that radiation was released through damaged parts of the PCV and reached Fukushima Daini by being carried by northerly winds. According to simulation results, the release from unit 2 is about 10 to 20 times greater than that after unit 1's hydrogen explosion and it was carried to the Kanto region in the morning of March 15.

http://enformable.com/2012/07/tepcos-do-or-die-mission-to-save-a-nuclear-reactor-may-have-caused-largest-radiation-leaks-during-fukushima-disaster/ An English article about this same Masamichi Chino study.



[SteveElbows]

Thanks for the info, that study does seem to match some of the speculation we engaged in, in regards to venting and radiation levels further south over that crucial time period. I wish I could find more reports about this study, or even the study itself, any ideas where to look?



[tsutsuji]

Thanks for the info, that study does seem to match some of the speculation we engaged in, in regards to venting and radiation levels further south over that crucial time period. I wish I could find more reports about this study, or even the study itself, any ideas where to look?

As Masamichi Chino made a presentation at the workshop of 23/24 July ( http://www.nisa.meti.go.jp/shingikai/700/14/240723/AM-3-3.pdf ), I was hoping there would be more details in the workshop papers, but it seems to be something different. I tried to google both names (Shinichiro Kado and Masamichi Chino) in Japanese writing, but google did not provide helpful answers.



[tsutsuji]

There is a bit more here:

http://genpatsu-watch.blogspot.com/2012/07/20127241800.html Transcript of Tepco's press conference on 24 July 2012:

NHK's Gotoh:

Concerning unit 2 it is said that the greatest amount of radioactive releases took place 4 days after the accident on 15 March. A variety of reports have been compiled, but specialists say that when they check the records of the response and Tepco's records, exactly from 3 days after the accident in the night of 14 March to the next day 15 March where large quantities are supposed to have been released, it is recorded in Tepco's documents that the SR valve was pretty repeatedly operated. Also, at that time, in the SPEEDI records, winds are found to be blowing toward the south, and when one checks the radiation doses at Fukushima Daini nuclear plant at that time, in the night of 14 March, against the normal 0.03 μSv/h, at around 10:00 PM it was 7.95μSv/h, then at 00:00 on 15 March it became 95μSv/h. After that, the radiation never stopped step by step sharply rising, and it is pointed out that radiations rose one hour after SR valve changing operations, and when one checks the wind directions after that, by looking at the accident response records and so on, the people who make that remark suggest that there is a high probability that due to the operation of unit 2's SR valve, the radiations blew toward the south and this raised unit 2's monitoring post values. Are you grasping this point?

Matsumoto:

I am not aware that the point that you said etc. was raised, but if we look at the time series of radiation releases in our previous reports, we infer that the releases from unit 2 became greater on 14 March at 21:20, well, from late in the night.

From a little after 21:00 on 14 March to 15 March, basically on 15 March over nearly one full day, we suspect that it was a release from unit 2. From the perspective of the accident situation at unit 2 at that time, core damage was quickly progressing, large volumes of radioactive substances were inside the RPV... well, it is a situation where they come out of the so-called cladding tubes. As a result, when the safety relief valve was opened, at that time, gas substances were released into the PCV. As the PCV has high temperature and high pressure, for example the flange, the seal parts suffer damage, and we think the radioactive substances have probably rapidly come out into the building. Then, at that time, the blow-out panel was already open, and the route is from there toward the reactor building eastern side, so it was probably released that way into the atmosphere.

NHK's Gotoh:

At present it is considered only as a possibility, but temporally, unit 2's radiation doses are said to have risen sharply in the night about one hour after. In the surveys you did until now, have you been matching [these data] with Fukushima Daini nuclear plant's radiations ?

Matsumoto:

No we haven't. In the future, well... I think it is probably necessary to compare the trend of radioactive releases with the meteorological conditions.

According to the radioactive release report released on 24 May ( http://www.tepco.co.jp/en/press/corp-com/release/2012/1204659_1870.html ), if we say that the release started at 21:00 on 14 March, as the wind was blowing toward the south, the Fukushima Daini plant beeing right in the south, that the radiation dose rose is... well... in a sense... it is matching. That's our line of thought. Well, it is after it. On 13 March at 09:00, 12:00, 20:00 here we compared the venting timing of unit 3, and well, we did a little analysis. Well, basically, it seems that it was a wind blowing to the south, so it is quite logical that Fukushima Daini's monitoring post radiation doses rose, I think.

NHK's Gotoh:

Do you think that it is necessary to perform this kind of data matching/comparison in the future ?

Matsumoto:

I think this kind of survey, or rather verification, will be necessary in the future. However, the analysis code we have, "Diana", is not able to perform analysis over such a wide area, so I think we will need to receive the cooperation of an outside laboratory.


NHK's Gotoh:

At that time it was necessary to operate the SR valve, but as a result of operating the SR valve...

Matsumoto:

... what do we feel about the fact that there is a high probability that it caused the outside release of large quantities of radioactive substances?

Concerning Fukushima Daichi unit 2, of course we suspect that venting the PCV, especially the wet well venting via the pressure suppression chamber was not sufficiently performed...

Matsumoto:

Well, I think this is probably the main point. At units 1 and 3 we succeeded in wet well venting, and as a result the concentrations were about one hundredth. At unit 2, well..., as regard the causes, we suspect that an important factor is the fact that things did not go smoothly with the connection of batteries and compressed air taking a lot of time.

NHK's Gotoh:

Thank you.



[zapperzero]

At units 1 and 3 we succeeded in wet well venting, and as a result the concentrations were about one hundredth.

A hundredth of what? Does he mean a hundredth of what was seen at unit 2? Why is he talking "concentration"? Does this mean someone was measuring the steam, in real time?



[tsutsuji]

A hundredth of what?

It is rather vague. Perhaps he means that, roughly speaking, for every particle released into the atmosphere 99 particles remain in the water if the wet venting is done properly.



[zapperzero]

It is rather vague. Perhaps he means that, roughly speaking, for every particle released into the atmosphere 99 particles remain in the water if the wet venting is done properly.

That's what I thought too - but I know better than to rely on my linguistic intuition wrt a translation from language I don't speak at all. So, thanks.



[SteveElbows]

There is a bit more here:

Thanks so much for that, it is good to see this information. Its an explanation we have come up with ourselves before, and have seen so briefly mentioned in a few reports, but usually not very well explained in such reports, or only acknowledged in a very round about manner.

Likewise we have also heard more recently about the concerns about reactor 2 at the time, due to the publication of its of the TEPCO videoconferences, and reactor 2 got quite a lot of press attention because I am under the impression that the footage from the 14th March was the only one with sound, and because there is still controversy and questions about TEPCOs worker evacuation plans.

Again the concerns about not being able to vent and the state of the suppression chamber on the 14th have been mentioned before in other reports. However there still exist a range of possibilities as to which concern the various people in charge were most afraid of, eg that made them consider evacuation more at this moment than prior ones. Was it the fact they hadnt been able to scrub via wet venting, the possibility of the meltdown being very bad due to inability to inject water for a very long time due to high pressure, fear of dramatic or explosive s/c damage or d/w damage? In one report the emphasis was on the site managers concerns about the suppression chamber, but from the teleconference it sounds like at least one persons big fear was for the drywell. It is unclear whether they feared the sort of drywell leak that actually ended up happening, or an even more dramatic one that could rip the drywell apart. These more explosive imagined scenarios might explain the attention on evacuation.

As for the exact path of release for the reactor 2 releases at the various times, there is still disagreement. We can be fairly confident about the drywell releases that happening on the morning of the 15th, but the path of release from 21:20 on the 14th and throughout much of the night is less clear. We had questions about whether any of the vents may actually have happened (rupture disc status unconfirmed and shared stack contaminated so can't be sure). At least one of the tables showing estimated magnitude of releases at different times has the night of the 14th large release coming from the height of the stack, and only the later releases from the height of the building. Others such as Matsumoto that you just quoted are suggesting the releases came from the drywell that night. And the author of the study behind a paywall ( at http://www.tandfonline.com/doi/abs/10.1080/00223131.2012.669237#preview ), thinks it was the suppression chamber that leaked on the night of the 14th and the drywell didnt start to spew significant quantities of stuff till the morning of the 15th. The question is further complicated by those who have theories that damage had occurred days earlier, and although no prior damage is necessary to explain the later emissions, we cannot utterly rule these possibilities out at this point.

I don't necessarily expect to learn much more of interest about the top of the drywell, so to narrow down some of the above possibilities I will be hoping to learn more about the stack contamination, rupture discs, and the exact nature of any suppression chamber damage at some point.



[tsutsuji]

What would be the path if the theory that the timing of radiation peaks at the Daini plant is correlated with the timing of SR valve operation is true? Under that theory, at that time, something was damaged downstream the SR valve, while the RPV upstream was still OK? For the contaminated gasses to go from the SR valve to the outside without passing through the wet well, you need two kinds of damage : a damage of the pipe between the SR valve and the wet well, and a damage of the dry well. That sounds rather complicated, or am I missing something ?

And the author of the study behind a paywall ( at http://www.tandfonline.com/doi/abs/10.1080/00223131.2012.669237#preview ), thinks it was the suppression chamber that leaked on the night of the 14th

I have the same question for this Tanabe theory. What is the meaning of "suppression chamber... leaked" ? I can understand that if there is a hole through which water escapes, the water level might become too low, and the "wet well" not being wet enough, the scrubbing function fails. Otherwise, I don't see the difference if the gasses escape through a hole in the upper part of the wet well after being scrubbed. Does that make any difference with being released through the stack ? In other words, does Tanabe say that the suppression chamber released a) liquids b) unscrubbed gasses or c) scrubbed gasses ?



[SteveElbows]

He mentions large amounts of steam with radioactive materials flowing into the S/C water pool. And that large amounts of radioactive materials which escaped pool scrubbing could then have escaped through S/C breach. However he does not go into any detail about the breach, or how the materials escaped pool scrubbing.

Various people have already criticised his theories here, and its also worth noting that his study was in part a response to analysis modelling where, in order to get the modelling estimates for D/W pressure over time to match the actual recorded values, they had assumed both a drywell breach and a S/C breach of certain sizes occurring days before the 14th. But since then they have developed a different theory, to do with cooling effects of water in torus room, and thermal stratification of the S/C. eg pages 11-16 of this http://www.nisa.meti.go.jp/shingikai/700/14/240723/AM-1-2.pdf and then pages 27-35 dealing specifically with how this may apply to reactor 2 data. So I think his study is already out of date.

In other aspects his study was still of interest to me, just because it lays out a possible timetable for various sorts of melting in the RPV & drywell in a fairly clear way which many official reports somewhat avoid or get the timing wrong on. In particular he is not afraid to point out the various times that RPV pressure went too high for pumped water to reach the RPV, which ends up offering an explanation for why we didnt see steam coming from upper part of reactor 4 till after 8am, and a possible remelting of core material on the afternoon of the 15th.



[SteveElbows]

As Masamichi Chino made a presentation at the workshop of 23/24 July ( http://www.nisa.meti.go.jp/shingikai/700/14/240723/AM-3-3.pdf ), I was hoping there would be more details in the workshop papers, but it seems to be something different. I tried to google both names (Shinichiro Kado and Masamichi Chino) in Japanese writing, but google did not provide helpful answers.

That was still an interesting report anyway.

Another one from the same collection should be of interest to those who want to see the potential emissions from reactor 3 properly considered and compared to those of reactor 2.

http://www.nisa.meti.go.jp/shingikai/700/14/240723/AM-3-1.pdf

In particular the table on page 28 shows how much wider the estimates for reactor 3 are in this updated study, with variables such as PCV leakage area and actual water injection rates being responsible for the uncertainty. The top end of many of these estimates are much closer to reactor 2 estimates than before.

On a similar note the table on page 9 of this Japanese TEPCO report, which shows estimated releases at all sorts of different moments throughout march, features some pretty big numbers for reactor 3. I added up the most significant ones for reactors 2 & 3 and again reactor 3 is closer to the reactor 2 totals than before, though still a bit lower.

http://www.tepco.co.jp/cc/press/betu12_j/images/120524j0105.pdf

If you have any time I would so appreciate a translation of the notes column for the most significant releases. This is the same table that I mentioned recently in reference to them putting the release height of the stack in for the 14th 21:20 entry, although the obvious explanation for this is they just went for the potentially erroneous theory that this was due to the venting attempt rather than a breach of containment.



[tsutsuji]

On a similar note the table on page 9 of this Japanese TEPCO report, which shows estimated releases at all sorts of different moments throughout march, features some pretty big numbers for reactor 3. I added up the most significant ones for reactors 2 & 3 and again reactor 3 is closer to the reactor 2 totals than before, though still a bit lower.

http://www.tepco.co.jp/cc/press/betu12_j/images/120524j0105.pdf

If you have any time I would so appreciate a translation of the notes column for the most significant releases. This is the same table that I mentioned recently in reference to them putting the release height of the stack in for the 14th 21:20 entry, although the obvious explanation for this is they just went for the potentially erroneous theory that this was due to the venting attempt rather than a breach of containment.

All the documents from the Tepco report of 24 May 2012 have been translated by Tepco on the page linked in the press conference transcript:

"No we haven't. In the future, well... I think it is probably necessary to compare the trend of radioactive releases with the meteorological conditions. According to the radioactive release report released on 24 May ( http://www.tepco.co.jp/en/press/corp-com/release/2012/1204659_1870.html )..." .

Table 8: "Assessed Values for Periods Where Air Dose Rates Fluctuated" on page 9 (11/89) of http://www.tepco.co.jp/cc/press/betu12_j/images/120524j0105.pdf (Japanese) is translated into English on page 14 (16/104) of http://www.tepco.co.jp/en/press/corp-com/release/betu12_e/images/120524e0205.pdf (English).


http://www.tepco.co.jp/en/press/corp-com/release/betu12_e/images/120524e0205.pdf page 20 (22/104) says:

5.5.3 Amounts Released from Reactor Buildings
In this accident, in addition to releases accompanying primary containment vessel venting and building explosions, it is believed that radioactive material was released to the atmosphere from R/Bs. The assessment results for the amount of radioactive material released from R/Bs are shown in Table 12. The amount released from R/Bs was larger than even the releases accompanying primary containment vessel venting and building explosions, but this is inferred to be due to radioactive material leaking without undergoing S/C pool scrubbing.

It is difficult to specify the path of release from the primary containment vessel to the R/B (leak location), but, from the results of field surveys and data on the design of the primary containment vessel, it is thought that the leak might have occurred at the seal of the primary containment vessel top head flange. (See Attachment 3)



[SteveElbows]

Thanks very much :) I admit to having got somewhat overwhelmed by the quantity of reports that are mounting up, and if they arent translated very quickly then I lose track. I will take a look at the detail later, but the bits you quote demonstrate why I thought this stuff was relevant for this thread. Cheers.



[clancy688]

A new NHK documentary, shedding some light on what happened in Unit 2:

https://www.physicsforums.com/showpost.php?p=4056805&postcount=13651

No mentioning of a dry vent though.



[SteveElbows]

I've just been moaning about it on the other thread. Mostly because I didnt find it too helpful in terms of shedding light. It was in some ways a mess that makes me feel like I need to reread one of the long official reports into the accident again in order to put events back into order in my mind. It had some interesting detail in places and I suppose I should be happy that it focussed in a different direction to the ones we often end up dwelling on, it made a change. But it does nothing for my thirst to see or read something that tells reactor stories using the amount of detail we've been able to ascertain from so many sources and talk about here.

Its kind of sad to see the focus still falling on failings that have been obvious since the start, such as the workers having to scramble to get car batteries. Official reports had other interesting stories to tell about failings. Turning the IC off at reactor 1 was not the only bad decision that could be turned into an interesting explanation in a tv documentary. OK I can't moan at them for picking up that a lot of the story about reactor 2 is about venting problems, but they could do a better job of putting it in context, and if they want to go into detail they should try to be clearer about it. It would also be nice if new documentaries made some effort to dispel some of the potential suppression chamber myths that have been with us since there was a bang after 6am on the 15th march 2011. Stories that end with this bang are not likely to satisfy us now that attention often turns to the top of the drywell.

I was hoping the TEPCO conference footage might give us some tiny new shred of info, especially as march 14th seemed to be one of the few times they had audio. But all there seemed to be was stuff to encourage the appetite of those who are interested in some non-technical stories about reactor 2 that have much media interest - whether TEPCO planned to evacuate everyone, and disagreements between people/government interference about the prioritisation of venting, srv opening and water pumping attempts.



[SteveElbows]

When reviewing this lengthy attachment to a final report I was very pleased to see that a lot of the stuff we were left to speculate about ourselves in relation to reactor 2 are covered ina decent amount of detail.

http://icanps.go.jp/eng/02Attachment1.pdf

For example:

Page 103+ Considers that pressure changes may not have been due to SRV operation, but rather vessel failures. Large CAMS differences between the D/W values and S/C values are used to offer possible answers to this question and some of the other I mention below.

Page 105 Problems with using CAMS readings to estimate percentage core damage.

Page 114+ Lengthy discussion about pressure changes including at 0:05 on the 15th march 2011

Pages 126-140 are a brutal look at the MAAP analysis from TEPCO and the MELCOR analysis, looking at multiple serious flaws with the models themselves and the data and assumptions fed into them. Includes many of the things I ranted about previously such as using too late a time for RCIC failure, too early a time for successful water injection.

Pages 160-161 Another brutal discussion about suggestions that a vent may have been successful, they are very unimpressed by the talk about rupture disc etc, and as with much of their analysis they point to the far more obvious failure of containment as an alternative explanation that makes much more sense.

Page 161 looks at whether something happening at reactor 1 during the morning of March 15th may have contributed to the increased radiation on site.

Page 163 discusses a worsening situation from around 07:20 that morning, the steam seen escaping from the blowout panel at 08:25 and rather interestingly mentions a site report that the amount of steam escaping had increased by 09:40.

There is a lot of other good stuff in the document but these were some of the highlights for me given my past interest in many of these specifics at the expense of some others.



[Hiddencamper]

Just some FYI here. I spoke with someone who was at the Chicago ANS conference over the summer, and apparently there is talk about the possibility of a previous weld flaw in unit 2 cracking during the overpressurization of the containment. This would lead to suppression pool bypass and prevent wet scrubbing of radioactive material released from the core during SRV lifts or a core bottom head breach. I've been trying to find more info but have been unable to. Anyone have any insight?



[rmattila]

Containment dome seal failure is - as far as I am aware - one probable bypass route, considering the rather high dose rates measured directly above it on the service floor.



[SteveElbows]

Yes, and although there are a range of possible failures that cannot be ruled out at this point, none of them are completely necessary to explain what happened at reactor 2.

For example there are a host of reasons why they struggled to vent reactor 2, and a number of reasons why SRV opening on the day in question may not have worked. And one obvious difference between reactor 2 and the others is that they had switched the source of water for the RCIC to the suppression chamber at reactor 2 and then failed to monitor the parameters of the suppression chamber, likely leaving the suppression chamber in a state different to the state of the s/c at the other reactors when they melted.

It is understandable that some will still question whether reactor 2 contaminated the environment more than the others, for a number of reasons. Firstly the weather conditions when reactor 2 containment failed were conducive to land contamination, and there is also the fact that the authorities were very keen to downplay the possibility of containment damage at the other two reactors during and for quite a while after the disaster. Combine this with the interest people had in the reactor 3 explosion, the discovery that the reactor 2 suppression chamber had not failed in a very dramatic explosive manner, and the authorities lack of interest in discussing the later smoke incidents and instability of reactor 3, and I cannot complain about people remaining keen on attributing plenty of environmental to the reactors other than 2. And indeed as time has passed we do see reports that are more willing to consider some of this stuff than the official reports of the first year were. Personally I remain especially interested in reactor 2 because of the failure to wet-vent, and the implications of this failure.



[Hiddencamper]

Yes, and although there are a range of possible failures that cannot be ruled out at this point, none of them are completely necessary to explain what happened at reactor 2.

For example there are a host of reasons why they struggled to vent reactor 2, and a number of reasons why SRV opening on the day in question may not have worked. And one obvious difference between reactor 2 and the others is that they had switched the source of water for the RCIC to the suppression chamber at reactor 2 and then failed to monitor the parameters of the suppression chamber, likely leaving the suppression chamber in a state different to the state of the s/c at the other reactors when they melted.

It is understandable that some will still question whether reactor 2 contaminated the environment more than the others, for a number of reasons. Firstly the weather conditions when reactor 2 containment failed were conducive to land contamination, and there is also the fact that the authorities were very keen to downplay the possibility of containment damage at the other two reactors during and for quite a while after the disaster. Combine this with the interest people had in the reactor 3 explosion, the discovery that the reactor 2 suppression chamber had not failed in a very dramatic explosive manner, and the authorities lack of interest in discussing the later smoke incidents and instability of reactor 3, and I cannot complain about people remaining keen on attributing plenty of environmental to the reactors other than 2. And indeed as time has passed we do see reports that are more willing to consider some of this stuff than the official reports of the first year were. Personally I remain especially interested in reactor 2 because of the failure to wet-vent, and the implications of this failure.

I'm not sure if RCIC drawing suction from the suppression pool would have caused a big difference. If anything, I would anticipate containment pressure to be higher in the suppression chamber as a result, and reaching HCTL (Heat Capacity Temperature Limit) sooner. There's always a chance the RCIC suction line from the suppression pool failed in some way, as I don't think the RCIC suction line is designed for high pressure (but I don't think 150 PSI [1MPa] would have caused that piping to fail either).

It's weird that they would stop monitoring suppression pool/chamber parameters. Those are critical safety function parameters for post accident conditions.



[SteveElbows]

I guess their need to prioritise and the numerous ways they became overwhelmed by the situation would explain the lack of measurements. Perhaps there was a specific difficulty with getting these measurements in particular, although I don't remember reading about it in reports, mostly it was just criticism of their failure to monitor it.

And yes you are right in that I cannot determine whether the state of the S/C made much difference, they had plenty of other problems that hampered venting and SRV operations.

I've now been looking at the detailed documents that form part of the other 'final report' that I was waiting forever to be translated and then forgot about until recently. One of them does go along a path that's been pursued on this thread from time to time, the failure to vent and why this lead to the idea that reactor 2's containment failure was especially bad for the environment.

Pages 34-40 of this one: http://warp.da.ndl.go.jp/info:ndljp...nt/uploads/2012/08/NAIIC_Eng_Chapter2_web.pdf

They make it pretty clear that since reactor 3 was vented on numerous occasions, containment did not remain at high pressures for extended periods of time. They make the point that reactor 2 drywell pressure was way too high for seven straight hours, and that containment then failed in more than a minor way, leading to depressurisation without venting. The report is somewhat inconsistent in its discussions though, since they also talk about reactor 1 and from the data they've used the containment pressure for 1 was very high for even longer, 12+ hours, but they don't really dwell on that using the same narrative they used for reactors 2 & 3. I think that's because in the case of reactor 1 a large failure of containment sufficient to decrease pressure significantly didnt occur during this time, so despite the lengthy delay in venting it was still the vent that was eventually responsible for massively reducing pressure at that stage.

So despite the fact that containment ultimately failed in some manner at all three reactors, this does leave me with questions such as 'why did reactor 2 containment fail in a dramatic way more quickly than reactor 1 containment?' or to put it another way 'how did reactor 1 containment last so long under high pressure?'.

Of course to answer this we need to know more about the damage that has been done, and may be waiting a long time for that, especially as TEPCO & government agencies do not seem very keen to highlight every detail of containment damage that they have observed at any point. Mostly what we have learned so far is more about what did not happen, ie the suppression chamber of reactor 2 and the surrounding area does not sem to be damaged in a way people originally thought, and these days the s/c low pressure is assumed to be due to sensor failure.

Please note that I am only speaking of containment failure on a scale necessary to rapidly and significantly reduce pressure, and only about the first meltdown events at each reactor. Clearly there were more minor containment leaks at the reactors at early stages, and potentially further significant releases of radioactive material on subsequent days that haven't received enough attention.

Regardless, the areas I've drawn attention to support the earlier discussions on this thread regarding the reactor 2 release. Large quantities of containment atmosphere, including radioactive material from the initial melting stages left reactor 2 containment in a vigorous manner, at a time when the containment was at a high pressure. At the other reactors, despite some lesser containment leakage, broadly equivalent releases happened via wet-venting.

However I should be careful not to ignore later events at all three reactors, since these reports also touch on the possibilities that further melting events happened at 1 & 3 and venting was not the only release path for these. For example there is talk of reactor 1 doing bad things some days after it first melted, and with regards to reactor 3 in addition to various smoke events that people talked about on these forums at a lot at the time, both these reactors had periods where water injection was temporarily halted long after their original meltdowns. For this reason i would like to better understand how much radioactive material can get from the fuel into containment atmosphere and ultimately the environment at later stages, compared to the amount that can be generated and released during the initial melt. This is one way to better understand how much the failure to take into account later events may have distorted the picture that reactor 2 was responsible for the bulk of the environmental release.



[rmattila]

For this reason i would like to better understand how much radioactive material can get from the fuel into containment atmosphere and ultimately the environment at later stages, compared to the amount that can be generated and released during the initial melt. This is one way to better understand how much the failure to take into account later events may have distorted the picture that reactor 2 was responsible for the bulk of the environmental release.

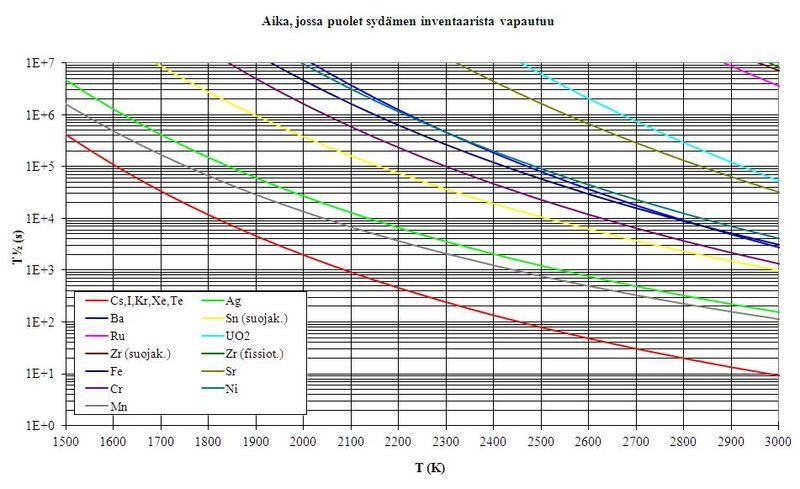

In the attached picture there are half-times of different elements in the fuel matrix. For I, Xe, Cs and Te, the half-time at melting temperature is only 10 s, i.e. when the fuel reaches melting point, these substances are already out of the fuel matrix and in the containment.



[SteveElbows]

Thanks :)

Completing my look back at reports from 2012 that have now been translated, I am reading the TEPCO one. http://www.tepco.co.jp/en/press/corp-com/release/2012/1205638_1870.html

As we might have expected, from what I've read so far it doesn't explain technical problems clearly or with much in the way of interesting new detail. But here is what they said about release of radioactive materials on page 36 of http://www.tepco.co.jp/en/press/corp-com/release/betu12_e/images/120620e0102.pdf

12. Evaluation of the release of radioactive materials (Report [12])
(1) Release of radioactive materials into the atmosphere (Report [12.1]) Evaluation of each of the main phenomena in this accident when radioactive
materials were released into the atmosphere and the causes of high level contamination areas to the northwest of Fukushima Daiichi are as follows:
・The release of radioactive materials was restricted (not clearly established in regard to Unit 2) during the venting operations of Units 1 to 3 due to the scrubbing effect of the suppression chamber, and the amount released was smaller in comparison to that of Unit 2 reactor building, so TEPCO does not consider this to have been a major factor leading to the contamination.
・Judging from the nature of the monitoring data at the time of the explosions of Units 1, 3, and 4 reactor buildings, the amount of the release was quite small compared to that of Unit 2 reactor building, and TEPCO does not consider this to have been a leading cause of contamination.
・Monitoring data rose sharply on March 15. At the time, the Unit 2 PCV pressure dropped considerably, and white smoke was seen coming from Unit 2 reactor building. Winds blowing toward the north-northwest direction prevailed that day, and since the contaminated areas had rain at the time, it is possible that the contamination in the high contamination zones resulted from a release of radioactive materials from the Unit 2 reactor building on March 15. It is further hypothesized that the emission from Unit 2 bypassed the suppression chamber scrubbing effects (radioactive material water decontamination effect, which has
roughly the same effect as filtering).
・There was a large fluctuation in the air dose rate on March 16. From
meteorological data from around that time, it would not seem that it could have been a major factor in the contamination of areas to the northwest, but in regard to the fluctuation in the air dose rate a little after 10:00 on March 16, white smoke was seen emanating from the Unit 3 reactor building at 8:30 on the same day, and since there was a fluctuation in the dry well pressure at around the same time, it is believed that the emission could have come from Unit 3.



[SteveElbows]

Page 368 from this TEPCO document shows release estimates for different events. They have very high amounts from reactor 3 on March 16th, the same values as for reactor 2 on March 15th! Reactor 2 still 'wins' because there are also notable releases after 21:00 on March 14th, but even so I think this data will be of interest to people.

These figures are hardly likely to be perfect, to pick one example they miss out any releases from reactor 1 after the building explosions, whereas some non-TEPCO reports I talked about recently mention the possibility of this.

http://www.tepco.co.jp/en/press/corp-com/release/betu12_e/images/120620e0104.pdf



[ronaldkr]

Hi Steve, you might be interested in JNES' reevaluation of release rates: p. 11 of this document:
http://www.aec.go.jp/jicst/NC/sitemap/pdf/P-4.pdf

Basically, unit 3 did some discrete emissions, unit 1 had a long sustained one, and unit 2 started with an emission at least a magnitude larger than unit 1. The time frame is however insufficient.
