Help with Kirchoffs Voltage Law?

  • Thread starter Thread starter TooJazzy
  • Start date Start date
  • Tags Tags
    Law Voltage
Click For Summary
SUMMARY

This discussion focuses on applying Kirchhoff's Voltage Law (KVL) to analyze a circuit with three currents, labeled I1, I2, and I3. Participants suggest writing out Kirchhoff's equations for two loops and one node to determine the current in each branch and the power dissipated in a 10-ohm resistor. The approach emphasizes systematic application of KVL to solve circuit problems effectively.

PREREQUISITES
  • Understanding of Kirchhoff's Voltage Law (KVL)
  • Basic circuit analysis techniques
  • Familiarity with Ohm's Law
  • Ability to interpret circuit diagrams
NEXT STEPS
  • Practice writing Kirchhoff's equations for various circuit configurations
  • Learn how to calculate power dissipation using the formula P = I²R
  • Explore advanced circuit analysis techniques such as nodal and mesh analysis
  • Study the implications of circuit components on current flow and voltage drops
USEFUL FOR

Electrical engineering students, hobbyists working on circuit design, and anyone looking to deepen their understanding of circuit analysis using Kirchhoff's laws.

TooJazzy
Messages
1
Reaction score
0

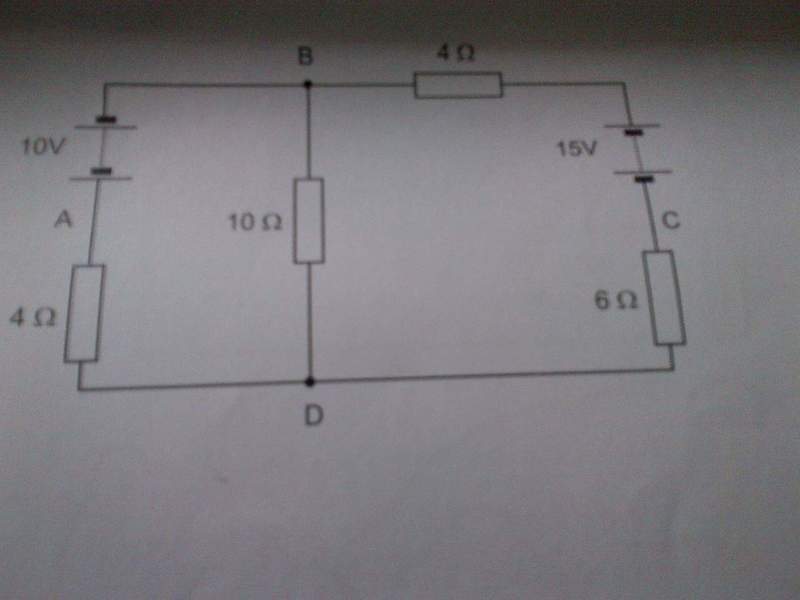

Pic on circuit attached
need to work out:

a. The current flowing in each circuit branch and its direction
b. The power dissipated in the 10ohm resister

This is probably simple to most of yous but i don't have a clue what to do :S


Attachments

  • IMG-20120502-00329.jpg
    18.2 KB · Views: 302
Physics news on Phys.org
Welcome to PF!

Hi TooJazzy! Welcome to PF! :wink:

Start by calling the three currents I1 I2 and I3.

Then write out the three Kirchhoff's equations, for two loops and one node …

what do you get? :smile:​
