Help with this Brushless Generator Design Please

In summary, The speaker is designing a generator with a mix of designs based on a sketch of magnets and coils in concentric rings. They are wondering if it is possible to connect the three outputs into one, but have not calculated potential outputs. The polarity of the magnets will be N/S alternately and may shift for each ring. The inner ring may be eliminated due to hub stiffness.
  • #1
AxeGrinder
3
0
TL;DR Summary
Hi, my first post here, thanks for checking it out!

I am trying to design a generator, which is a mix of several design's I like, based on the attached sketch which indicates layout of magnets and coils...
These components are layed out in concentric rings, the coils of each ring wired as an individual generator... I would like to connect these 3 outputs into one, is this possible? Each ring will produce different levels of power, although I've not done any calcs on potential outputs etc...


Attachments

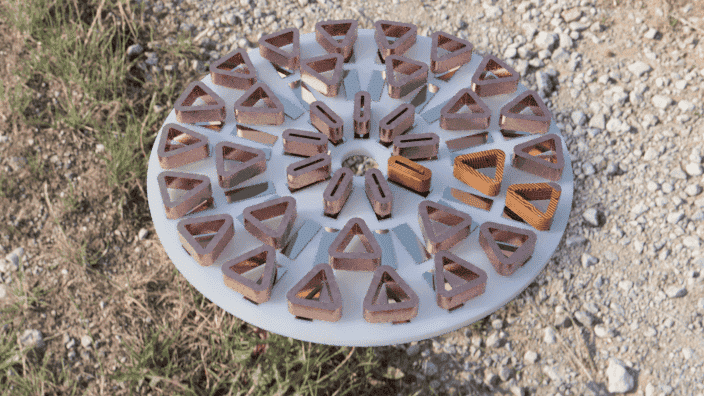

  • Rotor_Drum.png
    156.9 KB · Views: 150
Last edited by a moderator:
Engineering news on Phys.org
  • #2
AxeGrinder said:
Summary:: Hi, my first post here, thanks for checking it out!

I am trying to design a generator, which is a mix of several design's I like, based on the attached sketch which indicates layout of magnets and coils...
These components are layed out in concentric rings, the coils of each ring wired as an individual generator... I would like to connect these 3 outputs into one, is this possible? Each ring will produce different levels of power, although I've not done any calcs on potential outputs etc...

View attachment 275673
I think we need to know the polarity of the magnets.

  • Like
Likes AxeGrinder
  • #3
tech99 said:
I think we need to know the polarity of the magnets.

The magnets will be oriented N/S alternately (I thought this was a constant, however, if there are more efficient arrangements, I'm all ears), and I think will shift one "step" for each ring

  • #4
It is possible the inner ring will change drastically or even be eliminated, as the stiffness of the hub will be an issue
