HGL and EGL at gradual contract region

  1. May 4, 2016 #1
    1. The problem statement, all variables and given/known data

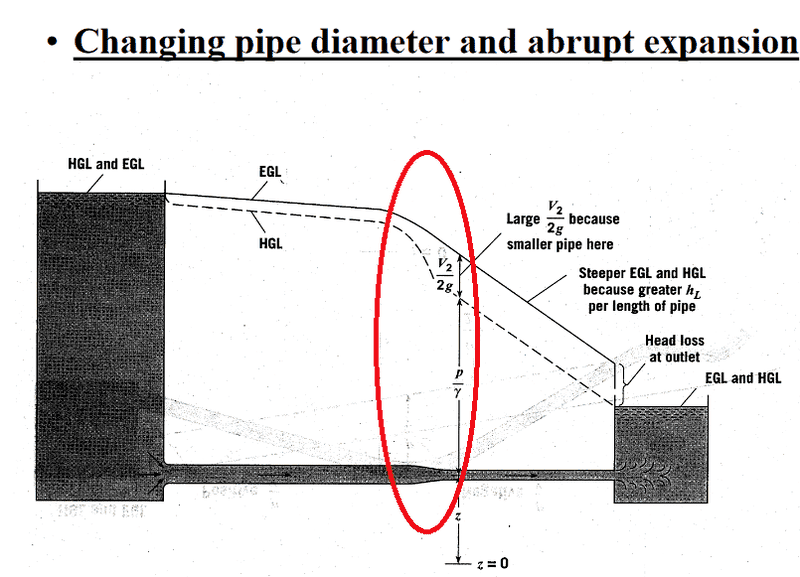

    in the two notes , the shape of graph at the gradual contraction region is are different , which is correct ? the first one ? or the second one ?

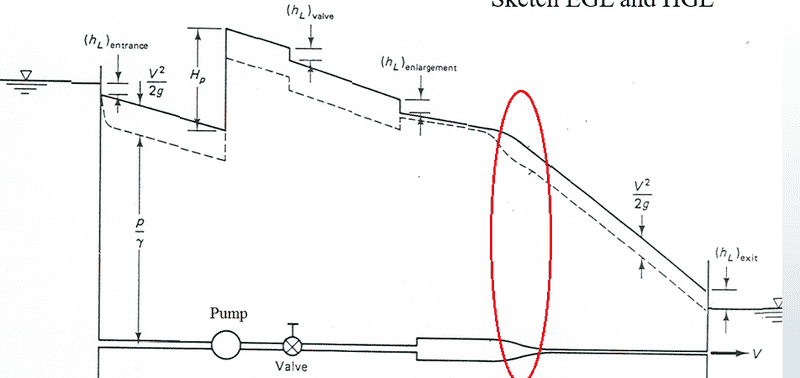

    in the first picture , we can see that the gradient of graph of HGL is increasing downwards , whereas in the second photo , the gradient of HGL is decreasing downwards? in the second picture , the shape of EGL at gradual contaction region is also different with the first one ? which is correct ?
    2. Relevant equations


    3. The attempt at a solution


    Attached Files:

    • 175.PNG
      File size:
      25.7 KB
      Views:
      68
    • 176.PNG
      File size:
      135.6 KB
      Views:
      62
  2. jcsd
  3. May 4, 2016 #2
    anyone can comment which one is correct ?

  4. May 4, 2016 #3

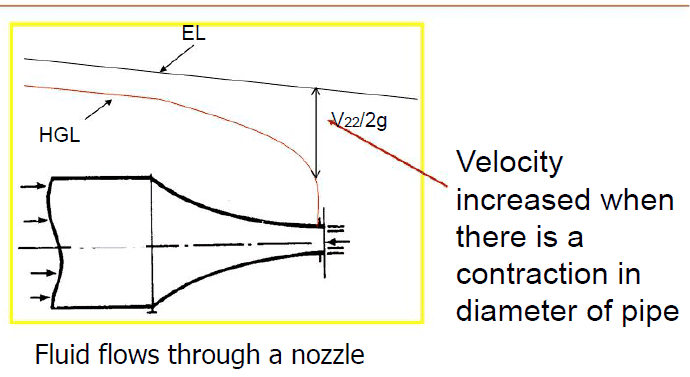

    i have another example here , in this example we can see that the shape of HGL at nozzle is different with the one in 176 , so which shape is correct ?.


    Attached Files:

    • 177.PNG
      File size:
      98.7 KB
      Views:
      62
  5. May 5, 2016 #4
    or the shape of graph is not important here ? as long as the EGL drop and velocity increse , both graph are correct ?

  6. May 5, 2016 #5
    anyone know to answer ?

  7. May 7, 2016 #6
    bump
