The Fukushima Daiichi nuclear plant is facing significant challenges following the earthquake, with reports indicating that reactor pressure has reached dangerous levels, potentially 2.1 times capacity. TEPCO has lost control of pressure at a second unit, raising concerns about safety and management accountability. The reactor is currently off but continues to produce decay heat, necessitating cooling to prevent a meltdown. There are conflicting reports about an explosion, with indications that it may have originated from a buildup of hydrogen around the containment vessel. The situation remains serious, and TEPCO plans to flood the containment vessel with seawater as a cooling measure.
  • #8,341
~kujala~ said:

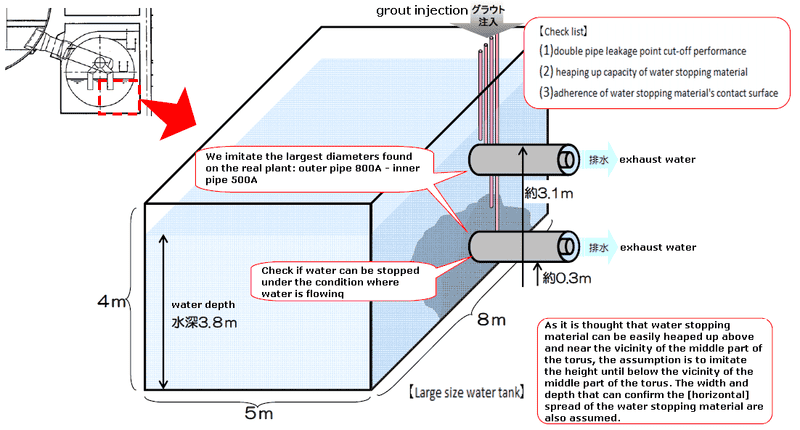

Somebody asked earlier what is the importance of this new leak from the waste disposal facility.

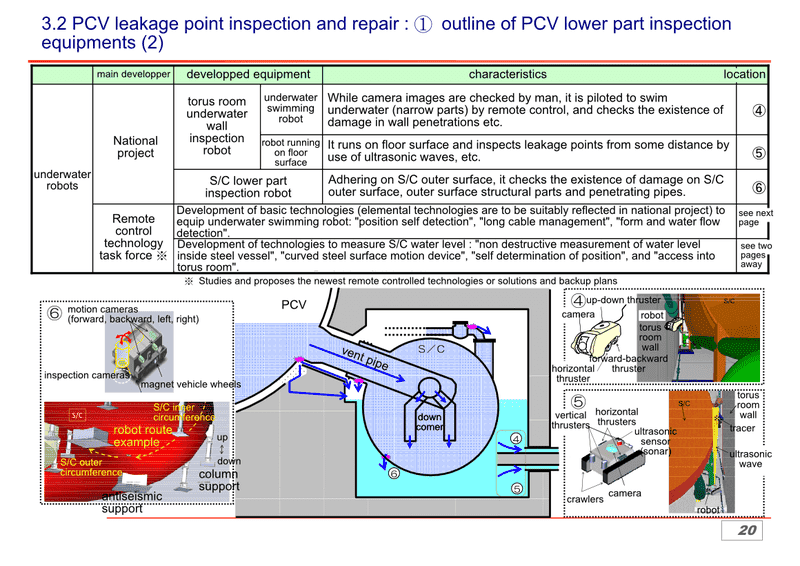

As far as I see it we must see the whole picture. There has probably been high-level leak from units #1 - #3 to groundwater for 2 months and medium-level leak from unit #4 to groundwater for 2 months also. At the current moment the leaks from #3 and #4 seem to have a significant decline:

http://www.tepco.co.jp/en/press/corp-com/release/betu11_e/images/110526e4.pdf

The leaks from #1 and #2 are decreasing also.

Nevertheless, even if there was a new leak from the waste disposal facility and even if this leak would end up in groundwater (which at the current moment seems not to be happening) this leak would not mean a lot compared to what already has happened. The same applies to the leaks into the sea. They had mega-leak from unit #2 pit into the sea and now this leak has been plugged. It's probably impossible to have a leak having such enormous contamination anymore.

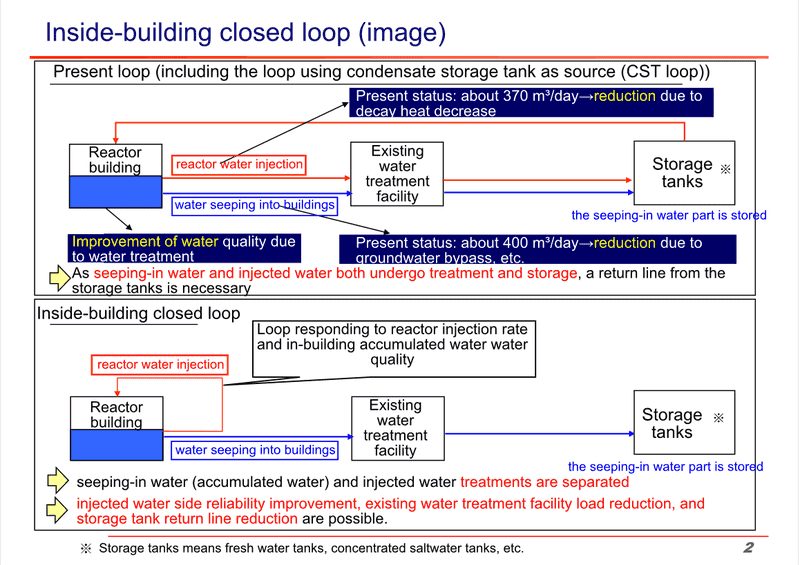

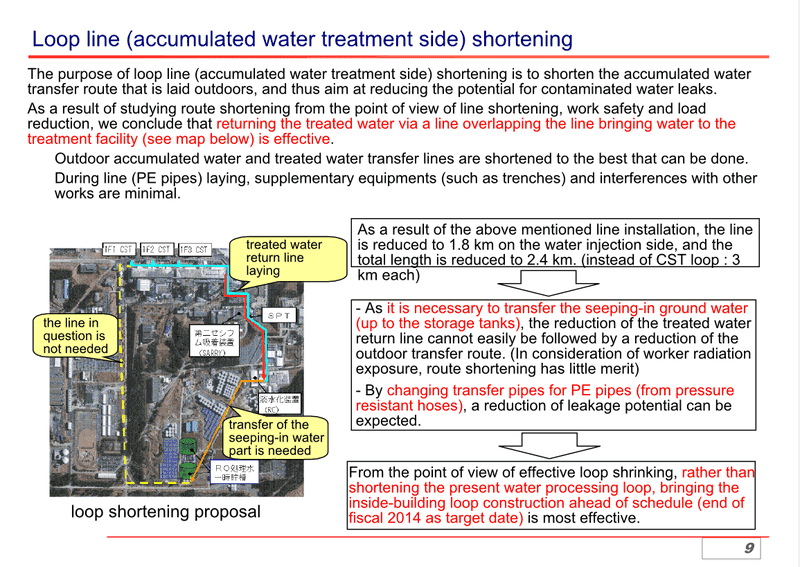

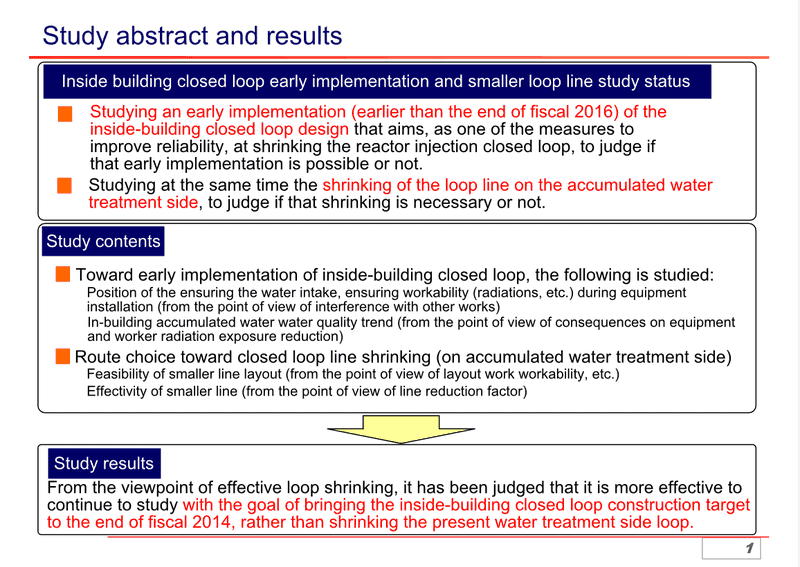

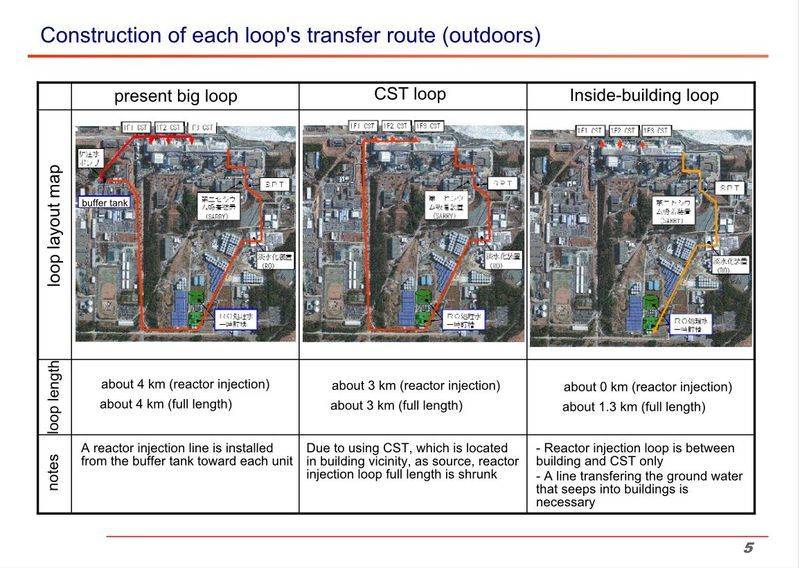

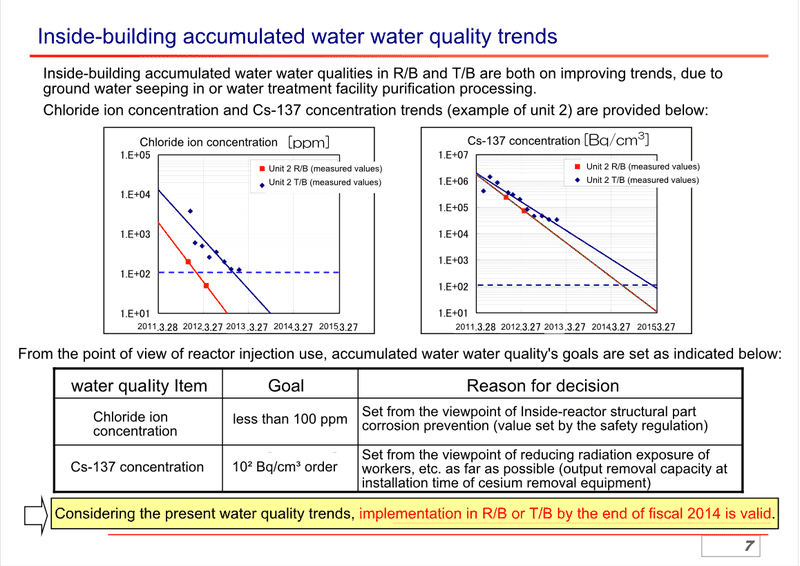

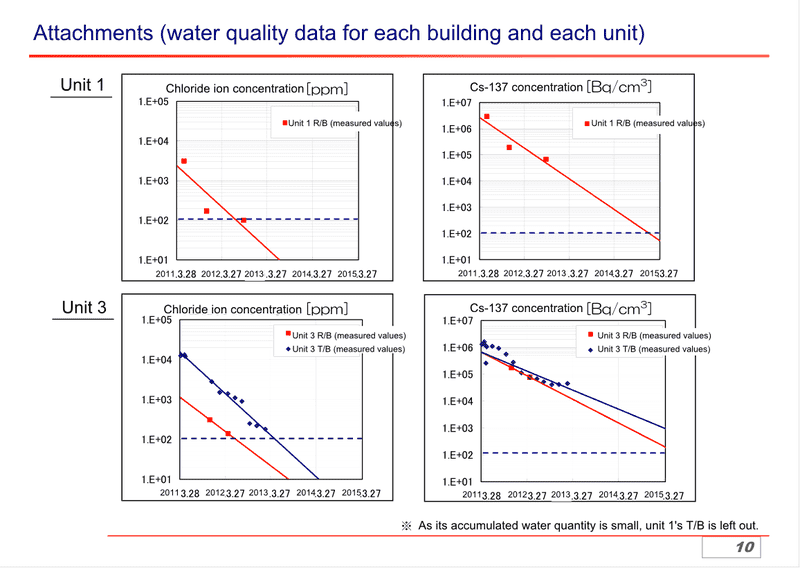

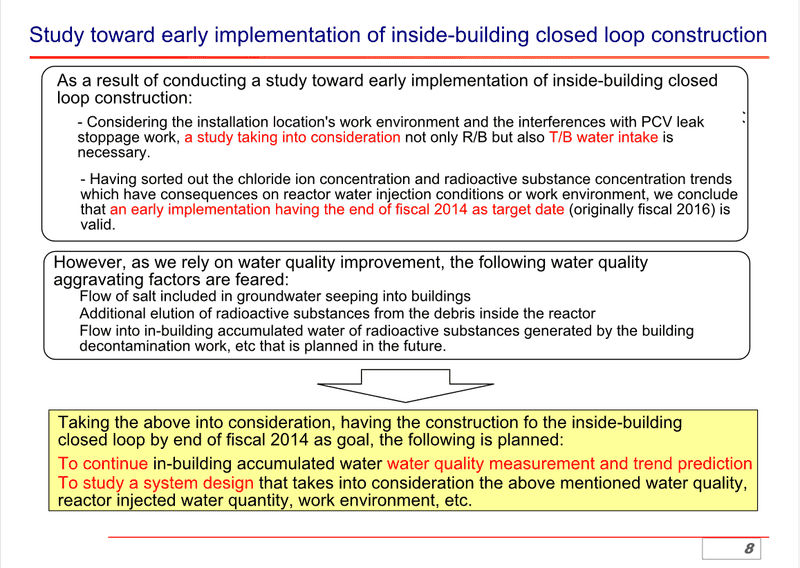

The much bigger problem, as I see it, is TEPCO's calculations about the water they have to move from the reactor/turbine buildings outside.

TEPCO has perhaps calculated their estimates based on the water that has accumulated in the turbine/reactor buildings. They have also calculated the amount that is going to accumulate because they are feeding new water all the time.

But has TEPCO taken into account the possibility that tsunami waters have increased the surface level of groundwater? Even if they were able to transfer all water in the turbine/reactor buildings today, tomorrow there could be more water in the reactor/turbine buildings because groundwater could leak in.

I think what they should do is to hire a couple of groundwater specialists who would try to calculate the following things:
- How much water did tsunami left in the plant area?
- How much did the surface level of groundwater increase after tsunami (if any)?
- How much water are we going to expect in the plant area from the rains? Rain water infiltrates into the ground and eventually reaches groundwater and because groundwater is polluted rain water will also be polluted.
- How much time is it going to take for this elevated groundwater to reach again its normal level?
- What is the maximum amount of groundwater that could leak into the reactor/turbine buildings and that could accumulate in the sub-drain pits?

Then they should increase their evaluation of needed storage capacity by the maximum amount of groundwater that could still leak into the turbine/reactor buildings and by the maximum amount of water that could accumulate in the sub-drain pits and has to be emptied. They should assume worst-case scenario and so from there everything that turns out not to be so bad would be a good thing indeed. :smile:

Anybody wants to try to calculate the total amount of water that should perhaps be taken into account?

Edit: The good thing it that after a while (perhaps 1 or 2 months from now on) all groundwater will be low-level contaminated. And after that one possibility is that this low-level contaminated water will be directly pumped to the sea as far it accumulates in the reactor/turbine buildings and sub-drain pits. Time is on TEPCO's side!


Without having a detailed mapping of the underground area and water table, including data from piezometers (small wells to measure underground water level) with possible seasonal variations, i think it will be very difficult to answer your questions. Still, i already partially answered one concerning the rain water, i got very few comments on the number i gave but you can still read the post... if i find it again (don't find it, hope it has not been deleted...)

I was calculating that with an annual rain height of 1250mm, based on the seasonal curve and with the rainy season coming, over an area of 400m x1000m which is an estimate of the main area that is scattered with debris (and so is contaminated), it will sum up a total of aroud 250 000 tons of rainwater in the next few months (and 500 000 tons for the complete year) that will wash this mess and will finish in the ocean for the main part (don't forget that there is a rainwater collection system for the plant, we don't know how this system is designed and how many outputs towards the sea there are, but I'm pretty sure this goes to the sea anyway because it is not supposed to be radioactive in normal conditions).

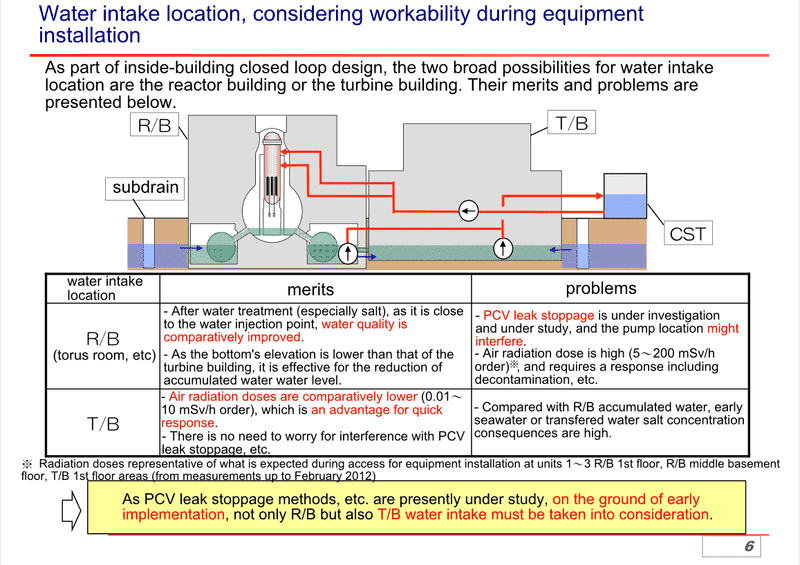

For the water in the basements, you have to understand that any flow comes from a differential of local hydrostatic pressure, even minimal. So as the basements are below ground water level (by how much, that is THE question), the direction and amount of the flow (inward or outward, from the basement standpoint) is depending of the relative height of water inside the basement and water outside of it (water table). Of course if the basement is fully waterproof, then no flow, but this is not the case (N°5 and N°6 have flows from the watertable it seems, which may have moved up as you said with tsunami). So what I foresee is the possibility that when the basements where almost empty (with regular pumps ejecting out the inflows from the watertable, which was probably routine operation to keep these basements dry), then of course the direction of flow was from outside to inside (because of hydrostatic differential). When the basements are filling in with water, the differential is reducing and eventually, this differential can be inverted if water level inside basement becomes higher than water table level outside. Then the flow will invert also, and so leakage from basement towards watertable can happen (with contamination).

Things may be a little bit more complex than this but this is the general idea.

For detailed calculations again, this is not possible without reliable data, mapping and computer program.

Last edited by a moderator:
Engineering news on Phys.org
  • #8,343
Thanks BOREK! You are far better than me to find my posts :smile:

By the way i never got one post deleted here without explanation and a mail, so I appreciate this from the moderators and especially you Borek. Let's say it to be clear :approve:

  • #8,344
jim hardy said:
here's a generic refueling photo, shows top of vessel open with head bolts installed. Note circled walkway - vessel protrudes above refueling cavity floor and walkway presumably crosses vessel to containment flange. I think the outer green ring is the bolt circle for containment cap, perhaps NucEng or somebody with BWR experience can correct me.



never mind deck loop it's just a hose..
four white spots must be reflections of ceiling lights.

pls excuse if a repeat.

This appears to be a photo taken during cavity floodup prior to refueling. As indicated by others the cattle chute is visible leading off to the spent fuel pool. The bio-shield blocks have been removed from the cattle chute. The number of people on the refueling machine makes me think it is during floodup. They are probably doing checks to prepare for refueling. The white spots are likely the underwater lamps installed on the drywell walls. The bolting studs you see are for the drywell cap. Inside the cavity there is the reactor vessel head and its bolting ring but they are not visible in the picture.

edit: on second guess those white spots may be reflections of lights. The perspective of the lights appears wrong for them to be mounted on the drywell wall, especially the one closest to the camera.

Last edited:
  • #8,345
One can catch a glimpse of a diagram detailing the water treatment facility on the following video of an interview of Areva Japan's president : http://news.tv-asahi.co.jp/news/web/html/210527034.html . The schedule for the launch of the facility has been postponed to mid-June. The delay is caused by some other manufacturers involved in the project.

The projection of dust fixating coating on the reactor and turbine buildings is starting today. It is important to have this done before the heavy "tsuyu" rains start pouring. http://www.tokyo-np.co.jp/article/national/news/CK2011052702000195.html?ref=rank

Last edited by a moderator:
  • #8,346
tsutsuji said:
The projection of dust fixating coating on the reactor and turbine buildings is starting today : http://www.tokyo-np.co.jp/article/national/news/CK2011052702000195.html?ref=rank

According to http://www.nikkei.com/news/category...39F9FE2E2E2E2;at=DGXZZO0195165008122009000000 it is important to have this done before the heavy "tsuyu" rains start pouring.

Yep, if you meditate a bit on the numbers i gave in the post above for rainwater volumes that this area will receive in the next months, we understand why they are so concerned to do this before.

But the question is how good is this product to resist heavy rainwater falls?

Read also here:

http://www3.nhk.or.jp/daily/english/27_02.html

Antiscattering chemical to be sprayed on buildings
The operator of the damaged Fukushima Daiichi nuclear power plant will spray an anti-scattering agent onto its buildings to prevent radioactive dust from spreading.

[...]

The chemical hardening agent selected for the task is usually used to contain asbestos.

[...]

Tokyo Electric Power Company says it will use two fire engines to spray the chemical onto building walls. However, TEPCO says it cannot spray all the walls because debris still blocks access to some area.

[...]

However, the chemical won't be applied to all areas because if it gets inside the pool that contains spent fuel rods it might interfere with the circulation of cooling water.

The forecast for the coming 5 days in fukushima area is a total of around 110mm of rain, which translates to 44 000 tons of water in my reference area of 1000m x 400m. Not a bird pee...

http://www.weather-forecast.com/locations/Fukushima/forecasts/latest

Last edited by a moderator:
  • #8,347
jlduh said:
Yep, if you meditate a bit on the numbers i gave in the post above for rainwater volumes that this area will receive in the next months, we understand why they are so concerned to do this before.

But the question is how good is this product to resist heavy rainwater falls?

It's polymer glue. It will hold. Maybe some will be blown or scraped off in high winds, but that's all.

  • #8,348
zapperzero said:
It's polymer glue. It will hold. Maybe some will be blown or scraped off in high winds, but that's all.

It'll hold only while there is something ~solid beneath, and it can do nothing with any water coming from outside the sprayed area.

I'm worried and expecting problems.

  • #8,349
The last sentence of http://www.tokyo-np.co.jp/article/national/news/CK2011052702000195.html?ref=rank says that they've already spread this dust-fixating coating on the ground in a number of places since the last decade of April, but they subsequently discovered that new dust originating from the walls of the buildings was depositing again on the coating.

Last edited by a moderator:
  • #8,350
jim hardy said:
<..> If you have fifteen minutes to kill, and promise to not accuse me here of fearmongering , i welcome your comment at this link, or about it here:
http://www.scribd.com/jim_hardy_9<..>

The first 'leg' of your contention, that it is possible to 'see' that unit 3 reactor/containment caps are missing is exceedingly likely due to an illusion.

Because, it is exceedingly likely that what you _do_ see when looking at that area of the top of the building is largely the imprint of the overhead crane waggon, sitting on top of the two huge overhead crane traversal beams.

Here is a markup side by side, of the unit 3 rooftop, and a photo detail from unit 3 before the disaster showing the overhead crane parked close to the south wall of the building:


During the explosive events the overhead crane fell to the floor, ending up with its beams spanning across the reactor area, with the crane waggon crashing close to its center. These huge objects now very effectively block the view to the area underneath them, exactly there where the reactor shield and caps were situated in the intact reactor building. So, from mere inspection of this area in photos very little can be said about the current position and intactness of the shield plugs, and the RV and CV caps.

Last edited:
  • #8,351
Rive said:
It'll hold only while there is something ~solid beneath, and it can do nothing with any water coming from outside the sprayed area.

I'm worried and expecting problems.

Plus, as said in the article, the debris make the opeartion very complex. If you think about the developped surface of all the debris lying one over the others in a big pile of mess, this surface is huge, and to be covered the glue has to go into all these cavities below the steel mess to avoid being wash by the heavy rain, which is probably less viscous.

So for sure it will reduce for some time the amount of dust released and washed away but I woud be very interested to now the real mid-term efficiency of this process.

Covering it with a plastic protection will be more effective, but that's an other story to do it...

EDIT: i don't know if this product is related to this japanese patent (quite surprisingly, it seems to contain boron, even if it was developped for asbestos antiscattering):

http://pat365.com/patent/patentContent.jsp?pID=JP2010019051&patType=%E7%A1%BC%EF%BC%9B%E5%85%B6%E5%8C%96%E5%90%88%E7%89%A9%26nbsp;Boron%26nbsp;Compounds%26nbsp;thereof%26nbsp;#

Last edited by a moderator:
  • #8,352
new picture of unit 3 with iaea team: http://www.tepco.co.jp/en/news/110311/images/110527_3.jpg
On the left we can see 2nd fuel machine, and big crane in center


Attachments

  • 110527_3.jpg
    34.3 KB · Views: 549
Last edited by a moderator:
  • #8,353
elektrownik said:
new picture of unit 3 with iaea team: http://www.tepco.co.jp/en/news/110311/images/110527_3.jpg
On the left we can see 2nd fuel machine, and big crane in center

Close-up of area :

http://inkers.nl/uploads/reactor-3.JPG

Last edited by a moderator:
  • #8,355
jlduh said:
Plus, as said in the article, the debris make the opeartion very complex. If you think about the developped surface of all the debris lying one over the others in a big pile of mess, this surface is huge, and to be covered the glue has to go into all these cavities below the steel mess to avoid being wash by the heavy rain, which is probably less viscous.

Which is why they will only really spray the walls and other reasonably flat surfaces.

  • #8,356
clrcdd said:
this document might be of interest in regard to recriticality in BWRs
http://bit.ly/mpxlJB

source:
http://www.sciencedirect.com/science/article/pii/S0029549301003922
This article considers the case where electrical power and water is restored during the time window between the melting of the control rods and the melting of the fuel rods.

It does not seem that something like that occurred at any of the Fukushima reactors.

Last edited by a moderator:
  • #8,357
Rive said:

yes, it has already been discussed here and this looks like the machine that tensions the studs, this is even clearer with this view. This is what Jim was identifying as the RPV cover, but this is not.

We have also a better view over the yellow part that Jim proposed to be the containment cover but to me, it seems more to be a concrete part with some clear (and maybe yellow?) color...

Last edited by a moderator:
  • #8,358
@ Tonio --

THANK YOU for your interest! And your kind reply.

I looked for your "yellow tank" on an aerial photo of R3 and I believe I have found it. I compared its dimensions with the yellow reactor cap visible in R4. It seems to have about half to two-thirds of the size of the R4 cap, thus it seems to be something else.

we are real close together, Mr Tonio. I am looking NORTH of that cockeyed vent pipe on roof, you are south. Right hand edge of your rectangle goes over my object.

Here it is on a March 16 photo, very slightly different angle.. I put a rectangle around it like you did. Note relation to vent pipe.
It gets obscured in later photos. Small wonder with all the rain and smoke , not to mention the aftershock tremors of 18th.


yours is much higher quality than mine, i don't have knack yet.
Mine is in the zipped folder at
http://cryptome.org/eyeball/daiichi-npp3/daiichi-photos3.htm
and you have to unzip the folder referenced at top of that file
where it says
it unzips to a 1.02 meg jpg and i don't know why its so blurry. yours is sharper yet less bytes. After unzipping it's got name aerial-2011-3-18-14-50-0.jpg, one of ~30 photos. I made a folder for them.


do you have the link for your photo?

In the photo above one can plainly see the uncovered hole where reactor plug oughta be.
Later ones look like the hole is covered by crane. I blame that on aftershocks of 18th i think they were, do i recall a 5.5 ?

  • #8,359
elektrownik said:
new picture of unit 3 with iaea team: http://www.tepco.co.jp/en/news/110311/images/110527_3.jpg
On the left we can see 2nd fuel machine, and big crane in center

One is Philippe Jamet, Head, Division of Nuclear Installation Safety at IAEA.
http://www.iaea.org/newscenter/multimedia/videos/safety/npp/jamet/index.html

By the way everything he is saying in this video is a premonition, several month before, of what occurred at Fukushima... The analysis is perfect.

But let's talk about this in the political thread: https://www.physicsforums.com/showthread.php?p=3325284#post3325284

Last edited by a moderator:
  • #8,360
PietKuip said:
This article considers the case where electrical power and water is restored during the time window between the melting of the control rods and the melting of the fuel rods.

It does not seem that something like that occurred at any of the Fukushima reactors.

piet the link took me to a place that offers it for $31.50

i downloaded a document by same title here, i think it's a public document
http://www.iaea.org/inis/collection/NCLCollectionStore/_Public/31/025/31025624.pdf

think it might be same one?

for another forum's discussion of recriticaliy , peruse
http://tickerforum.org/akcs-www?singlepost=2541030
it's by a layman but references a couple official documents, and gives links

oops i was going to stay quiet.

over and out for 24.

  • #8,361
jim hardy said:
In the photo above one can plainly see the uncovered hole where reactor plug oughta be. Later ones look like the hole is covered by crane. I blame that on aftershocks of 18th i think they were, do i recall a 5.5 ?

Come off it. There is no evidence that the crane & its supporting structure fell later. Pay even half as much attention to photos that actually show stuff clearly as those that do not, and pretty much all of the features that interest you vanish.

Take for example your recent posts about the rubble on north side of reactor 3 building. There were already a number of other photographs which have enabled us to identify some things more clearly, things that don't match your analysis. And todays photos with IAEA delegation and reactor 3 provide further evidence that what you think you might see in the low res shot is not actually there, and no amount of internet discussion will change that. No reactor or containment caps.

  • #8,362
don't forget that there is a rainwater collection system for the plant, we don't know how this system is designed and how many outputs towards the sea there are, but I'm pretty sure this goes to the sea anyway because it is not supposed to be radioactive in normal conditions

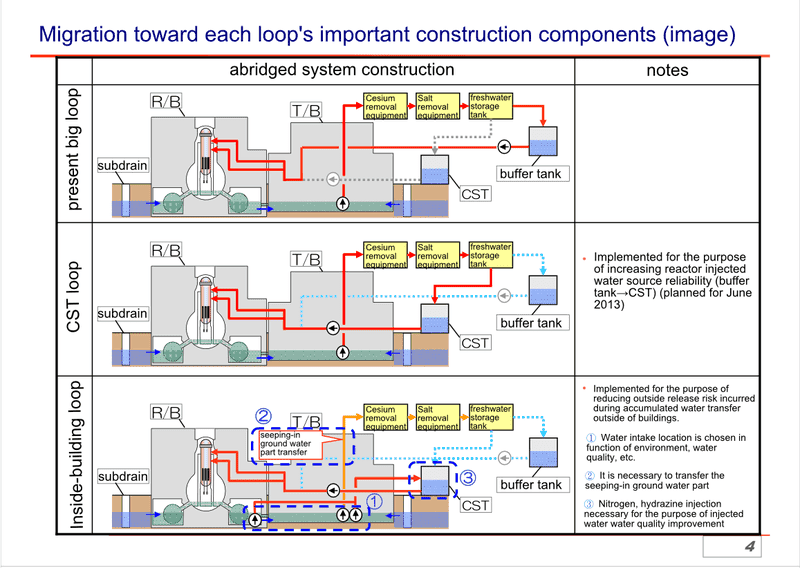

Part of rainwater goes also into the same sub-drain pits where groundwater goes through vertical shafts, this is how I have understood this picture (sorry some text only available in Finnish):
http://varasto.kerrostalo.huone.net/salaojat_2.png
(Edit: It depends on whether the vertical shaft has open or closed top.)

As for the area outside buildings I have no clue where it is going. BTW I read somewhere that in modern buildings you should never direct groundwater and rainwater into the same pits as the picture above suggests that is happening in Fukushima.

When the basements are filling in with water, the differential is reducing and eventually, this differential can be inverted if water level inside basement becomes higher than water table level outside. Then the flow will invert also, and so leakage from basement towards watertable can happen (with contamination).

So this might indicate that it would be anyway a good idea to pump as much water from the basements as possible to keep the flow of water outside in.

I still think they should calculate some conservative worst-case scenario for all water that could accumulate in the buildings/sub-drain pits. This way there would be no more sudden surprises if the level of water would be "still rising". Instead they could say that water level is rising "as expected". :smile:

Last edited:
  • #8,363
elektrownik said:
new picture of unit 3 with iaea team: http://www.tepco.co.jp/en/news/110311/images/110527_3.jpg
On the left we can see 2nd fuel machine, and big crane in center

It looks like a pre-cast construction method was used for the reactor building, at least for the upper part. That would explain why the columns got toppled that easily.

Last edited by a moderator:
  • #8,365

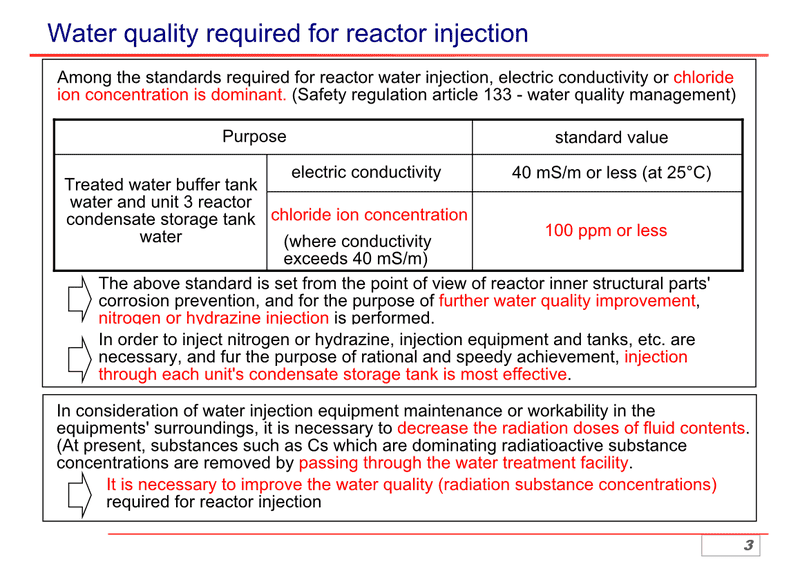

Did some detail get lost in the drama of reactor 3's temperature rollercoaster this month?

I noticed for quite some time that TEPCO updates made it sound like the additional water via the reactor feedwater system was part of a plan to stop using the fire extinction system piping. But as they were clearly having issues trying to bring the temperature under control at the time, I wasnt sure if this was just spin. However, since the various reductions in water injection rate that have taken place recently have targeted the fire line, to the extent that water rate is now down to just 2 m3/h via that particular line, it seems they really are swapping over and this was not just an exercise in getting as much water as possible into the reactor to put the brakes on soaring temperatures.

Do we know if TEPCO have said why they wanted to switch lines? Do we know at what height water emerges from the fire line as opposed to the reactor feed line? Its possible that they think fire line was doing a poor job of cooling 3, or are there other reasons why a switch was more desirable, eg for the longer term?

Example of what TEPCO say about this stuff in updates:

-At 4:53 pm on May 12, as a part of work to switch the water injection
line to the reactor from the fire extinction system to the reactor feed
water system, we started water injection through the reactor feed water
system in addition to through the fire extinction system.
-At 8:52 pm on May 26th, we changed the rate of water injection to the
reactor through the fire extinction system piping arrangement from
approximately 3 m3/h to approximately 2 m3/h.
-The current rate of water injection is approximately 2 m3/h through the
fire extinction system piping arrangement and approximately 13.5 m3/h
through the reactor feed water system piping arrangement .

From http://www.tepco.co.jp/en/press/corp-com/release/11052710-e.html

Last edited by a moderator:
  • #8,366
jim hardy said:
@ Westfield:

snip >

I believe the yellow "tank" you pictured in your unit 4 photo IS the reactor containment cap..that's just where it sits in the drone photo, if I'm not turned around, in NW corner.

<snip

The yellow containment cap cannot be seen in that particular R4 image, the intact concrete walls hide it. The tank item is below the refuelling floor level. http://i1185.photobucket.com/albums/z360/fukuwest/misc/R4yellowtankyellowcapaerial-2011-3-30-3-20-15.jpg" - anyway, thankfully now there is finally a nicer picture of the NW corner of RB3 which makes all this redundant.

Last edited by a moderator:
  • #8,367
Actually let me rephrase that. I mean it seems obvious that they made all these changes in response to the soaring temperatures, I just wondered if the fire line has now been identified as the culprit, eg it stopped being able to cool the reactor well towards the end of april, as opposed to something new happening in the reactor which caused it to require more cooling. I guess if they stop using the fire line altogether, which seems likely, and then reduce the other lines rate to around what used to be enough to keep reactor 3 temperatures sort of stable, we may have a clearer idea of whether this is possible. I don't think we can really tell whether the boron injection they did around may 15th made any difference because temperatures had already started to fall by then as a result of increased injection of water/using more effective piping.

  • #8,368
Westfield, SteveE

thanks that is what I've been looking for, good rebuttal from actual photos...
i completely missed your yellow tank on floor below..

hope more hi quality pics are forthcoming soon.

  • #8,369
SteveElbows said:
I don't think we can really tell whether the boron injection they did around may 15th made any difference because temperatures had already started to fall by then as a result of increased injection of water/using more effective piping.

Actually I should say that some of the temperatures had started to fall by then, others did not fall until after the boric acid. But there was so much else going on at the time with changing flow rates that things remain too murky for me to draw any conclusions.

  • #8,370
Is there any fundamental reason why the excess water in the plant could not be transferred to large tankers as a short term measure?
Even if the ships are scrap after the service, it would be cheaper than having the water overflow and contaminate much of the coastal shoreline. Plus these tankers are double bottomed and pretty watertight,
so spillage would not be a serious concern.
There should at least be a fallback plan if the Areva decontamination effort runs into delays.


Similar threads

  • · Replies 12 ·
Replies
12
Views
49K
  • · Replies 41 ·
2
Replies
41
Views
5K
  • · Replies 2K ·
60
Replies
2K
Views
451K
  • · Replies 5 ·
Replies
5
Views
6K
  • · Replies 2 ·
Replies
2
Views
2K
  • · Replies 6 ·
Replies
6
Views
20K
  • · Replies 763 ·
26
Replies
763
Views
274K
  • · Replies 38 ·
2
Replies
38
Views
16K
Replies
6
Views
4K
  • · Replies 4 ·
Replies
4
Views
11K
