Program that will draw a(t) knowing x(t) in SHM

  1. Mar 3, 2010 #1

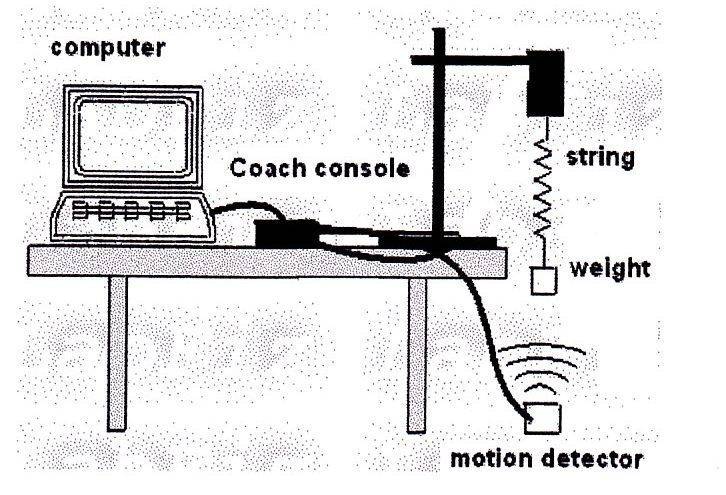

    A few days ago I carried out an experiment about Simple harmonic motion. In the attachment I added the scheme of the laboratory.

    I have collected the following data : time(s), displacement(m), velocity(ms-1)

    I can obviously plot the graph of x(t). However, the next task is to draw a graph of a(t).
    As far as I know, I can calculate the acceleration by using first derivative of velocity. Since I have about 300results I am definitely not going to do it manually :D

    Is there any program that I can use to automatically plot the acceleration vs time graph ?
    In class we used 'coachlab II', but that little sucker deleted all the graphs when the device was disconnected and right now I have no access to that software.

    Cheers


    Attached Files:

    • 1.jpeg
      File size:
      81.2 KB
      Views:
      72
  2. jcsd
  3. Mar 3, 2010 #2
    You can try Labview, Matlab, Origin, or even Excel. Since you already have the data the work is easy.

  4. Mar 3, 2010 #3
    T=0,67s
    initial displacement = 0,299m

    a=-[tex]\omega[/tex]2*x

    [tex]\omega[/tex]=[tex]\frac{2\pi}{T}[/tex]=[tex]\frac{2\pi}{0,67}[/tex]

    Since initial displacement is not equal 0, would it be a good idea to calculate it from forumla (initial displacement - displ. at the moment) ?

    Are these correct calculations of acceleration ?
