Rigorous Coupled Wave Analisys - help

In summary, the conversation is about trying to understand the computational analysis of diffraction grating efficiencies using RCWA. The person is using a book by Soifer but is having trouble understanding or agreeing with it. They are trying to derive equations rather than just using them in Matlab and found that their derivation does not match the book's. They have two specific questions about equations 3.138, 3.139, 3.140, 3.141, and 3.150 and are seeking clarification. They also mention attachments with additional pages and equations (*) and (***) related to the topic. They clarify that they are not looking for someone to do their work, but have been struggling with understanding it for a while and are seeking
  • #1
Krzysztow
5
0
Hi,

Recently I'm trying to understand some explanation of RCWA, which introduces to computational analysis of diffraction grating efficiences. For explanation I use Soifer book, but cannot understand or don't agree with it. I tried to understand the derivation, not to write it straightforward into Matlab but understand as well. And I found that my derivation doesn't agreefully with the book. Can You explain to me:
1) how one can get from the set of equations 3.138 & 3.139 to the set 3.140 & 3.141. I got something for 3.140 like in equation (*).
2) where did He get set 3.150 from? It seems as if assumption (**) or (3.127) is not valid anymore. However then He shouldn't write 3.152.
If assumption (3.127) is valid for modulation zone, then result for coefficients is given by (***)

Please, help me. It's not I want anyone to do my work. I just dwell for too long on it. Thank in advance!


Attachments

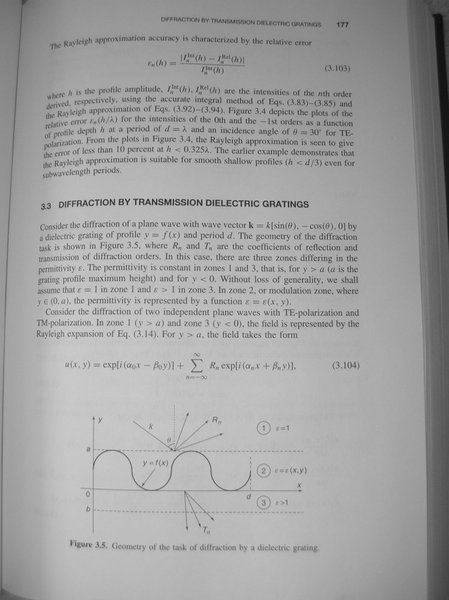

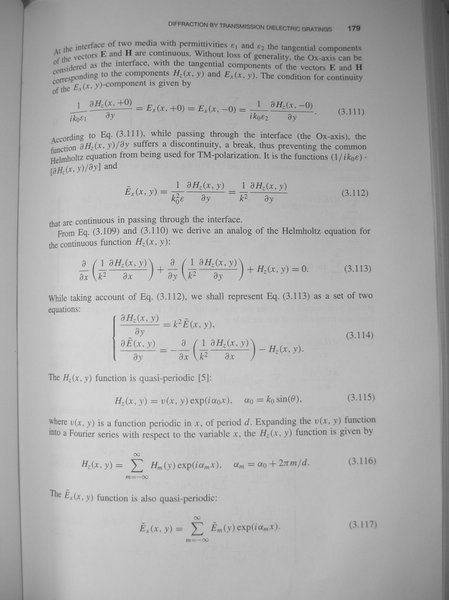

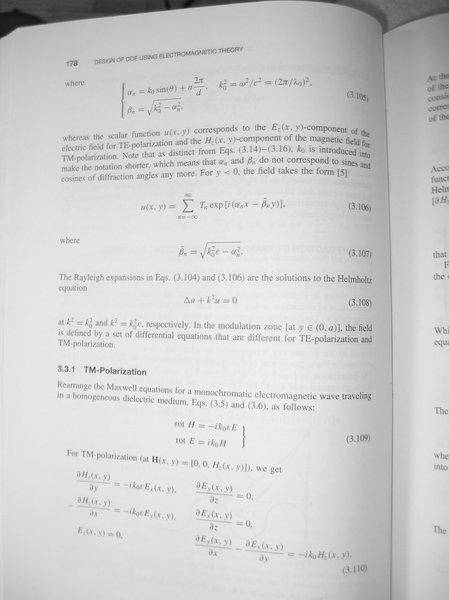

  • DSCN6430.JPG
    34.5 KB · Views: 421
  • DSCN6431.JPG
    26.5 KB · Views: 427
  • DSCN6432.JPG
    30.6 KB · Views: 448
Physics news on Phys.org
  • #2

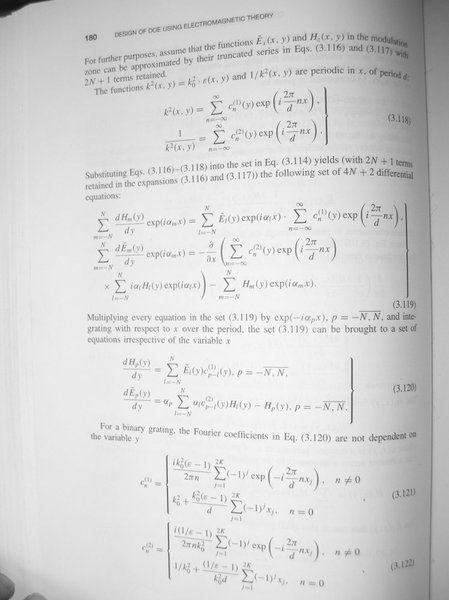

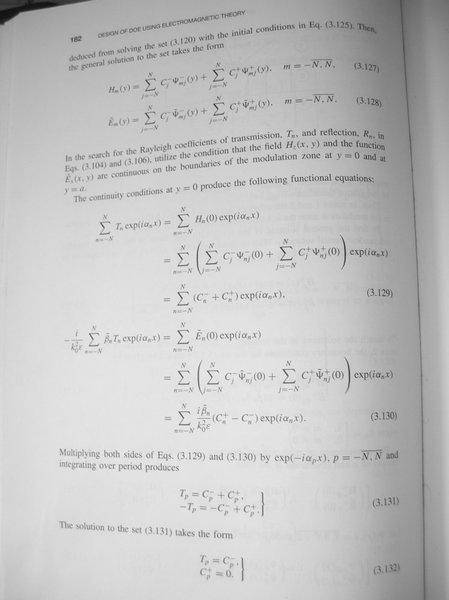

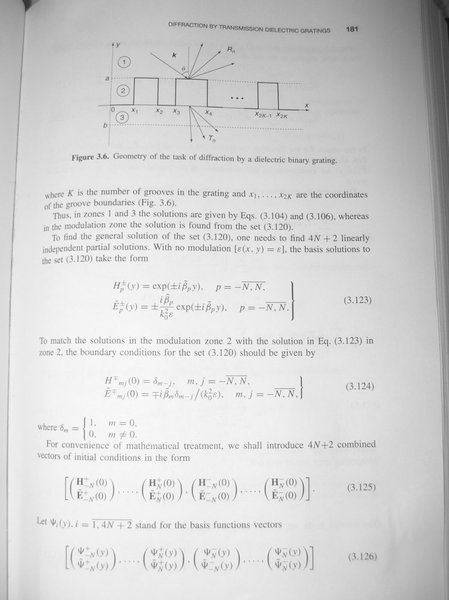

More attachements


Attachments

  • DSCN6433.JPG
    31 KB · Views: 403
  • DSCN6434.JPG
    30.7 KB · Views: 446
  • DSCN6435.JPG
    26.4 KB · Views: 397
  • #3

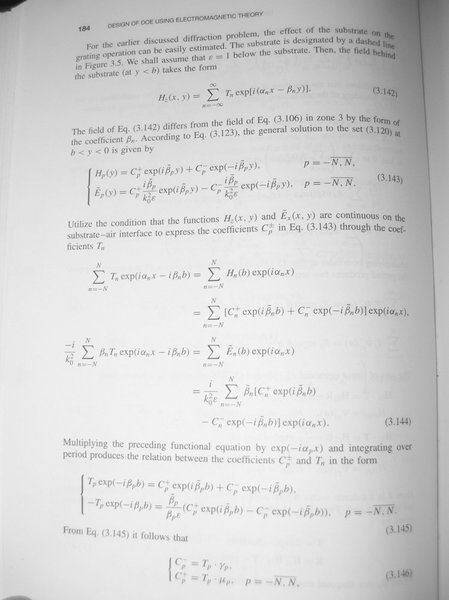

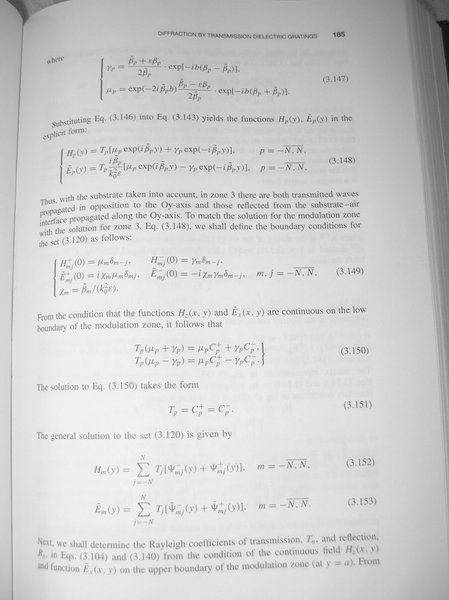

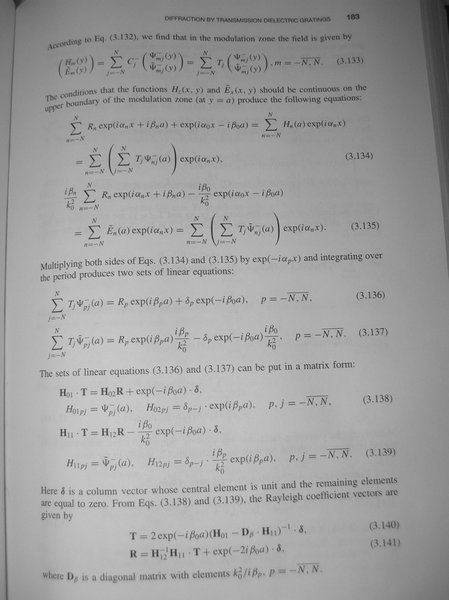

7th, 8th and 9th pages


Attachments

  • DSCN6438.JPG
    30.8 KB · Views: 411
  • DSCN6437.JPG
    30.2 KB · Views: 414
  • DSCN6436.JPG
    32.8 KB · Views: 446
  • #4

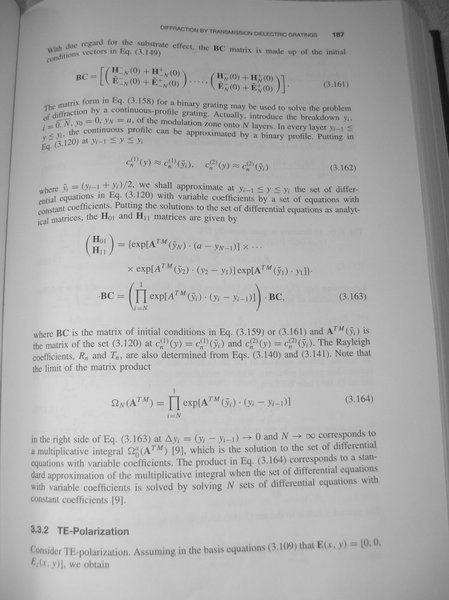

10th and 11th and (*)


Attachments

  • DSCN6439.JPG
    31 KB · Views: 413
  • DSCN6440.JPG
    33.3 KB · Views: 440
  • T.jpg
    8.2 KB · Views: 377
  • #5

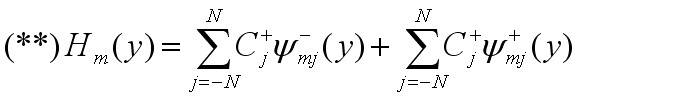

(**) and (***)


Attachments

  • Assumption.jpg
    7.8 KB · Views: 374
  • Result.jpg
    4.6 KB · Views: 366
