Solving for the currrents in the resistors

  • Thread starter Thread starter kni6468
  • Start date Start date
  • Tags Tags
    Resistors
Click For Summary
SUMMARY

The discussion centers on the configuration of resistors in a circuit, specifically addressing the issue of wire crossings. It is established that the four resistors join at the center without crossing over, contrary to typical circuit diagrams that use shaded circles to indicate joining points. The conversation suggests that solving the circuit involves setting up simultaneous equations to analyze the current flow through the resistors.

PREREQUISITES
  • Understanding of basic circuit theory
  • Familiarity with resistor configurations
  • Knowledge of simultaneous equations
  • Experience with circuit analysis tools
NEXT STEPS
  • Research techniques for solving simultaneous equations in electrical circuits
  • Learn about resistor network analysis methods
  • Explore circuit simulation software like LTspice
  • Study the principles of Kirchhoff's laws in circuit design
USEFUL FOR

Electrical engineering students, circuit designers, and hobbyists working on circuit analysis and resistor configurations.

kni6468
Messages
1
Reaction score
0
I don't asnwer what to do with the wires crossing


Physics news on Phys.org
kni6468 said:
I don't asnwer what to do with the wires crossing

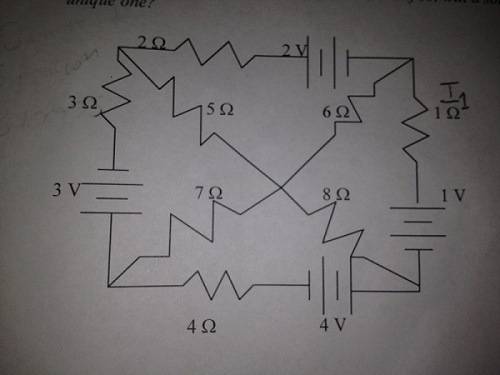

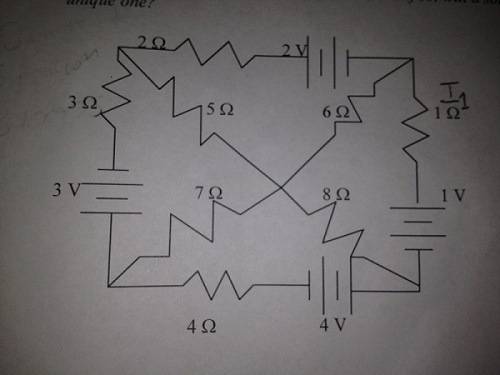

View attachment 46771

It looks like the resistors do not cross at the center. Normally a joining point would have a shaded circle on it, but this isn't used elsewhere in the circuit, so it probably wasn't used at the center either.

So, I would take it that the 4 resistors join at the center and do not cross over.

Looks like a lot of simultaneous equations.
