What does the RF waveform of wifi/bluetooth look like?

  • Thread starter Thread starter Benjamin_harsh
  • Start date Start date
  • Tags Tags
    Rf Waveform
Click For Summary
The discussion focuses on the appearance of WiFi and Bluetooth RF waveforms, noting that in the time domain, they appear as a blur during packet transmissions, while in the frequency domain, they show multi-lobed frequency bands. The inquiry stems from either a school assignment or general interest in understanding these waveforms. The thread was moved to the Electrical Engineering forum for broader visibility. Participants engage in questions about the use of oscilloscopes and spectrum analyzers for analyzing communication waveforms. Overall, the conversation highlights the complexities of visualizing RF signals in different domains.
Benjamin_harsh
Messages
211
Reaction score
5
Homework Statement:: I tried google search and I give up.
Relevant Equations:: How does output wave of wifi/bluetooth look like?

How does output wave of wifi/bluetooth look like?

Engineering news on Phys.org

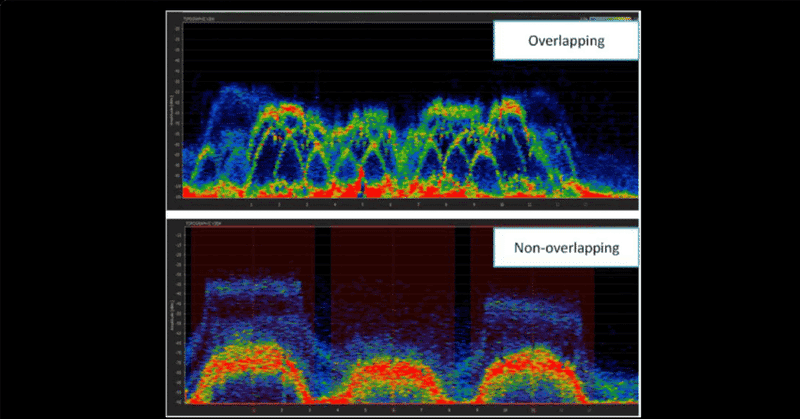

In what domain? In the time domain it looks like a blur during the packet transmissions. In the frequency domain it looks like multi-lobed frequency bands. Is this for a schoolwork assignment or general interest?

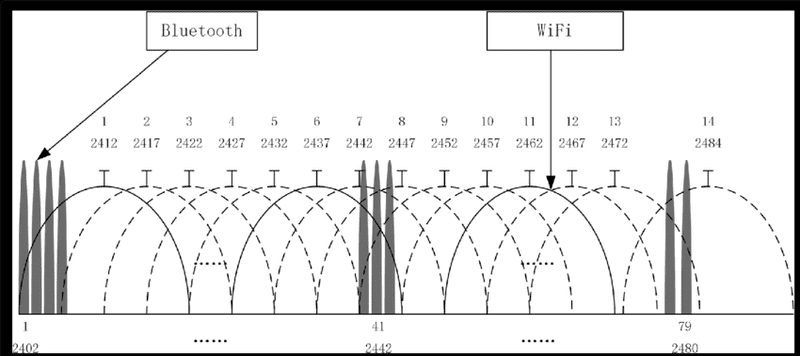

https://www.researchgate.net/figure/Frequency-spectrum-of-WiFi-channel-allocations_fig2_320339729

berkeman said:
or general interest?
Yes.

Benjamin_harsh said:
Yes.
In that case, I'll move the thread to the EE forum to get more views.

@Benjamin_harsh -- Does my post above make sense? Have you used an oscilloscope to look at communication waveforms of any kind? Have you used a spectrum analyzer to look at RF communication bands? :smile:

Hello! I want to generate an RF magnetic field at variable frequencies (from 1 to 20 MHz) using this amplifier: https://www.minicircuits.com/WebStore/dashboard.html?model=LZY-22%2B, by passing current through a loop of current (assume the inductive resistance is negligible). How should I proceed in practice? Can i directly connect the loop to the RF amplifier? Should I add a 50 Ohm in series? Thank you!
