Why Does My Thevenin Resistance Calculation Differ from the Expected Result?

  • Context: Engineering
  • Thread starter Thread starter panoramarts
  • Start date Start date
  • Tags Tags
    Circuit Thevenin
Click For Summary

Discussion Overview

The discussion revolves around the calculation of Thevenin resistance (Rth) and the I-V characteristics of a circuit. Participants are exploring the implications of choosing different reference nodes for voltage and the methods used to derive the Thevenin equivalent. The conversation includes technical reasoning, proposed methods, and challenges faced in achieving the expected results.

Discussion Character

  • Technical explanation
  • Debate/contested
  • Mathematical reasoning

Main Points Raised

  • One participant expresses uncertainty about which node to use as the zero voltage reference, considering nodes C and B.
  • Another participant questions the clarity of the current flow and the context of calculating Thevenin voltage versus short-circuit current.
  • A participant suggests using the superposition theorem to calculate Thevenin or Norton sources and discusses the equivalent resistance in the circuit.
  • There is a discussion about the method of calculating Rth, with one participant deriving their I-V characteristics and comparing them to standard forms.
  • Another participant points out an error in the assumptions made regarding voltage levels and suggests an alternative approach to correct it.
  • Participants share different methods for calculating Rth, with some advocating for simpler approaches compared to the original method used by the thread starter.
  • Questions are raised about the existence of a zero voltage point in circuits and requests for proof of the fast method for calculating Rth.

Areas of Agreement / Disagreement

Participants do not reach a consensus on the best method for calculating Thevenin resistance, as multiple approaches are discussed. There are disagreements regarding the assumptions made about voltage levels and the implications of choosing different reference nodes.

Contextual Notes

Some participants highlight the importance of correctly identifying voltage levels and the implications of assumptions made in calculations. There are unresolved mathematical steps and varying interpretations of circuit behavior based on different reference points.

Who May Find This Useful

This discussion may be useful for students and practitioners interested in circuit analysis, particularly those seeking to understand Thevenin equivalents and the impact of reference nodes on calculations.

panoramarts
Messages
4
Reaction score
0



I don't know which node to take as zero voltage. Either C or B or both.
Finding Out I-V characteristic of +V-. Considering Vb = 0.

ASSUMING V IS SOME LOAD

I = I2 - I3
I = ((Va - Vd)/10) - ((Vc - Vb)/10)
I = ((7 - 5)/10) - ((Vc - 0)/10)
I = 0.2 - Vc/10

Where Vc - Vb = V
Considered Vb = 0
So Vc = V

Therefore;
I = 0.2 -V/10

However the Correct Answer is:

I = 0.2 - V/5
---------------------------------------------------------------------
I am getting Correct current (0.2A when V = 0)
But wrong Rth (Thevenin Resistance) as 10 ohms.

Can someone point me where Iam doing wrong in the method IAM using for
calculating I-v characteristic.
I know other shortcuts methods that give me correct answer but I want
to know what mistake I am doing and how to correct it.
----------------------------------------------------------------------

Last edited:
Physics news on Phys.org
You need to make clear where the current I is flowing. Are you trying to find the open circuit thevenin voltage or the short-circuit current? Because in the diagram, I = I2 - I3 doesn't appear anywhere in both cases. In the open circuit case, I2=I3; in the short circuit case I=I2 since the 10 ohm resistor is shorted.

Lets assume V is some load in the picture above.

Well how are you calculating Rth from the above?

Last edited:
I don't know which node to take as zero voltage.
It doesn't matter very much, just calculate the voltage in the output open for the thevenin equivalent and the current in the output shorcircuited. To solve the circuit you have to have to select a zero voltage node, but you can put it where you want, I like to put in the minus of the output.
ASSUMING V IS SOME LOAD
I don't understand this sentence.

The easiest way to solve this problems is to use the superposition theorem to calculate the thevenin or norton source:
http://en.wikipedia.org/wiki/Superposition_theorem
Then calculate the equivalent resitance from the output placing an open circuit, instead the current sources, and a shorcircuit, instead the voltage sources. In this problem is clear that is the parallel between the resistance in series with the voltage sources, hence 5ohms.
hope this help

Defennder said:
Well how are you calculating Rth from the above?

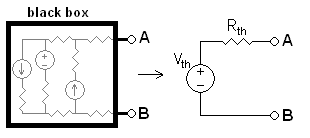

Using general form of Thevenin Circuit (according to Circuit Diagram):


I = (-V/Rth) + (Vth/Rth)

When I derive my I-V characteristics I compare the two equations.
Since what I calculated is:
I = -V/10 + 0.2

So
Rth = 10
Vth/Rth = I (when V= 0, intersection) = In = 0.2

This is long way of doing and I have been having correct answers for all thevenin circuits I attempted, except this one. I know the shortcuts of getting answers by making open circuits and short circuits. But that's not I am asking here.
I need to find error in my reasoning for I-V characteristic i did at thread#1

panoramarts said:
I don't know which node to take as zero voltage. Either C or B or both
No you cannot assume both are at ground potential, otherwise you are already implicitly assuming that V is a short-circuited load.
panoramarts said:
I = I2 - I3
I = ((Va - Vd)/10) - ((Vc - Vb)/10)
I = ((7 - 5)/10) - ((Vc - 0)/10)
I = 0.2 - Vc/10
Where Vc - Vb = V
Considered Vb = 0
So Vc = V
Your error is here. Vd cannot be 5 unless Vc=Vb=0, which is an invalid assumption unless it is a short-circuit. Instead, let Vd = V+5. That should fix it.

I don't see how useful your method can be. It clearly is a lot longer than the standard textbook treatment of Thevenin equivalent. And prone to mistakes as well. You could have simply calculated Rth by finding equivalent resistance after zeroing all the sources.

Defender beat me to it but let me echo his comments, there are several different ways you can handle Thevinens all of which are much easier than your method. Personally I could solve that circuit by inspection in under 20 seconds.

Anyway here is your method "fixed".
I = I2 - I3
I = ((Va - Vd)/10) - ((Vc - Vb)/10)
*** I = ((7 - 5)/10) - ((Vc - 0)/10) *** eqn in error
*** I = 0.2 - Vc/10

I = (7 - (Vc+5))/10 - Vc/10
I = (7-5)/10 -V/10 -V/10
I = 1/5 - V/5

If I assume Vc = 0, then Vd = 5. And so Vb cannot be equal to zero.
Vab = 7v.
Va = 7 + Vb

I = I2 - I3
I = (Vad/10) - (Vcb/10)
I = Va/10 -5/10 +Vb/10
I = (7 + Vb)/10 -1/2 +Vb/10
I = Vb/5 + 7/10 -1/2
I = Vb/5 + 1/5

where Vb = -V
So
I = -V/5 + 1/5

Thanks! it also works the other way :)
-------------------------------------------------
I have two more questions

1) Is it always true that in any circuit there is a point of zero voltage?
2) Can someone show me a little proof on the method of calculating Rth fast? (The method: open circuit for Current source and Short circuit for Voltage source)

Thanks
-------------------------------------------------

  • #10
1) Is it always true that in any circuit there is a point of zero voltage?
I suppose that you mean voltage V in the output, well I would say that when de load resitance is zero, there is no voltage, and the current is the Norton current. As well if the load in infinite, open output, the voltage is the thevenin voltage. But I don't understand very well your question, because this explanation are a bit straightforward, and maybe you want to say something more complicated.

Can someone show me a little proof on the method of calculating Rth fast? (The method: open circuit for Current source and Short circuit for Voltage source)
Well in this case, try to draw the circuit shorting the voltage sources and opening the current sources, do you see that the network is two resistance of 10ohms in parallel? then, you got it! It's very easy, although sometimes is better to plot it, with practice inspection will be enough.
Hope this help
