Problems in explicit dynamics simulation in ANSYS Workbench

In summary, the individual is seeking help with using ANSYS and is having trouble with two solids passing through each other. They have tried various tutorials and settings, but the results remain the same. They have also attempted using automatic contacts, but the issue persists. They are asking for advice on contact settings and have already attempted using both friction and frictionless options. They are now seeking clarification on the issue.
  • #1
german9011
2
0
I'm new with ansys if I can help it would be helpful.

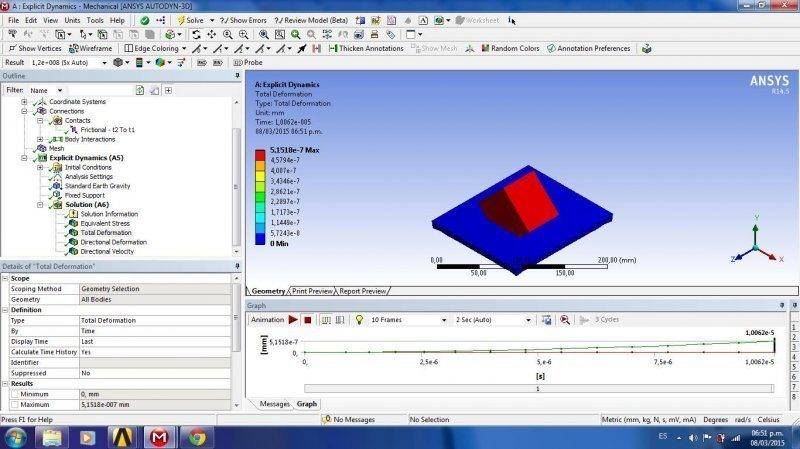

the problem is that two solids are shocked, but one of them is going through the other, have already implemented several things different tutorials but the answer is the same. the only question when I change the location fixed support the results change. I've also tried putting speed and standard Earth gravity but I do not lack anything the result.


Attachments

  • impact.jpg
    56.8 KB · Views: 891
  • impact.jpg
    56.8 KB · Views: 693
Engineering news on Phys.org
  • #2
There is something wrong with your contacts if you getting penetration (one material passing through the other). Looks like you have made your own contacts. Try and see if it works well with automatic contacts. Please list the contact settings you have used.

  • #3
if I've already tried that contacts are so automatic, I've done with friction and frictionless but the answer remains the same solids are crossed.

thanks for answering.

  • #4
Can you be a bit more clearer with your problem?

If penetration is your only problem, check for body interactions
