Are the 3 Resistors in Parallel? Check Here!

AI Thread Summary
The three resistors discussed are confirmed to be in parallel, as the top resistor is clearly connected in parallel with the lower resistors. The definition of parallel components is highlighted, emphasizing that current can flow through either resistor. In contrast, series components require current to flow through both. The discussion suggests that the lower two resistors may be causing confusion regarding their configuration. Understanding these connections is crucial for analyzing circuit behavior effectively.
Miike012
Messages
1,009
Reaction score
0

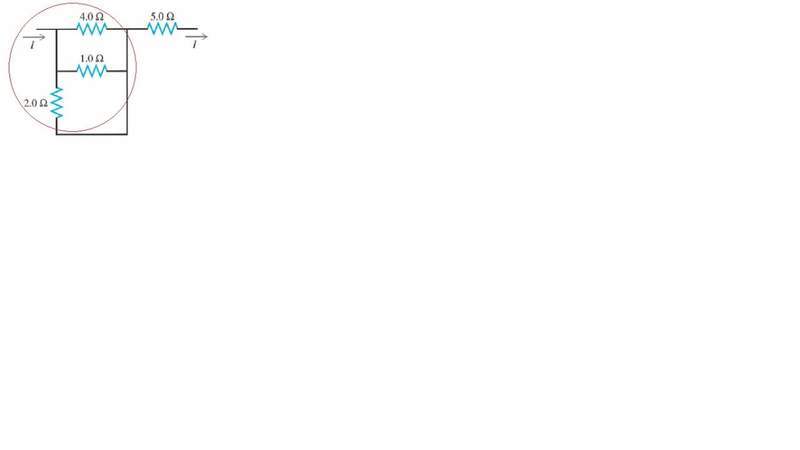

Are the three resistors that I circled in the paint doc in parallel??


Attachments

  • sdsdsdsdsd.jpg
    4.5 KB · Views: 378
Physics news on Phys.org
yes ...

It's fairly obvious that the top resistor is in parallel with whatever is going on below, right? So I suspect the bottom portion is giving you trouble.

Remember, the definition of components being in parallel means that current has the option of flowing through either component while being in series means that current must flow through both components. When the current travels through the bottom 2-resistor branch, is there more than one way to get past that part of the circuit?
