Ebook about the dynamic analysis of a bar mechanism?

AI Thread Summary
The discussion centers on finding an ebook related to the dynamic analysis of a bar mechanism, which is likened to a crank and slotted lever mechanism with an additional link. Participants mention the possibility of simulating kinematic chains using Inventor software and offer to share existing simulations. Recommendations for theoretical resources include "Theory of Machines" by Shigley and Thomas Bevan, which provide comprehensive descriptions of kinematic chains. The request for ebooks of these texts indicates a desire for accessible educational materials. Overall, the conversation highlights the need for resources on dynamic analysis and kinematic mechanisms.
e_bogdan
Messages
3
Reaction score
0
Do you know an ebook about the dynamic analysis of a bar mechanism?Thank you.

Engineering news on Phys.org


what is bar mechanism??

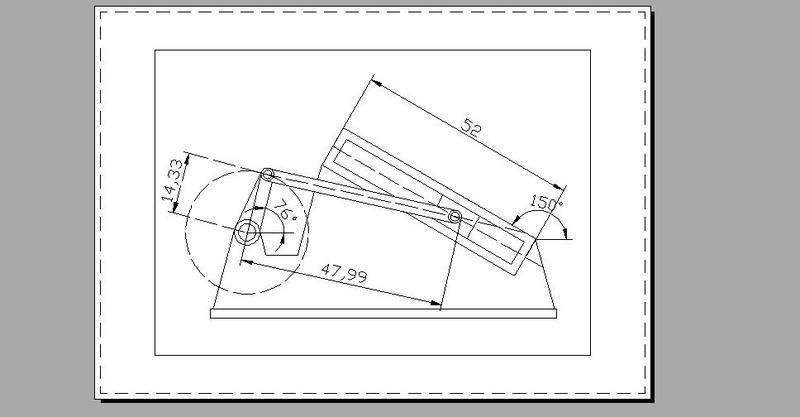

A bar mechanism is something like that!Maybe I didn't name it right!


Attachments

  • mecanism.JPG
    26.1 KB · Views: 507


seems like a crank and slotted lever mechanism, but it has one extra link and I can't figure out which point is the slotted link pivoted!
You can do dynamic simulation of kinematic chains in Inventor. I think I have simulation for crank and slotted lever mechanism(tell me if you need it).
For theory, I had a book Theory of Machines, shigley(I don't remember the full name) and I have Theory of Machines,Thomas Bevan. It has a nice qualitative and quantitative description for kinematic chains



If u have these books as ebooks,could you send them to me?
