Find the Minimal SOP Using a 5 Variable K-Map

Engineering
Thread starter rugerts
Start date Dec 7, 2019
Tags

Variable

In summary, a 5 variable K-Map is a graphical tool used in digital logic design to simplify boolean expressions with 5 inputs and outputs. To find the minimal SOP expression, adjacent squares with a 1 are grouped together and combined. The benefits of using a 5 variable K-Map include a visual and systematic approach, identification of redundant terms, and increased efficiency in circuit design. It cannot handle more than 5 variables, but multiple K-Maps can be used together. Tips for effective use include starting with large groups, minimizing 1s, avoiding overlap, and using different colors or symbols for groups.

Dec 7, 2019

rugerts

Homework Statement: Find the minimal SOP using the 5 var kmap

Relevant Equations: boolean algebra laws and axioms

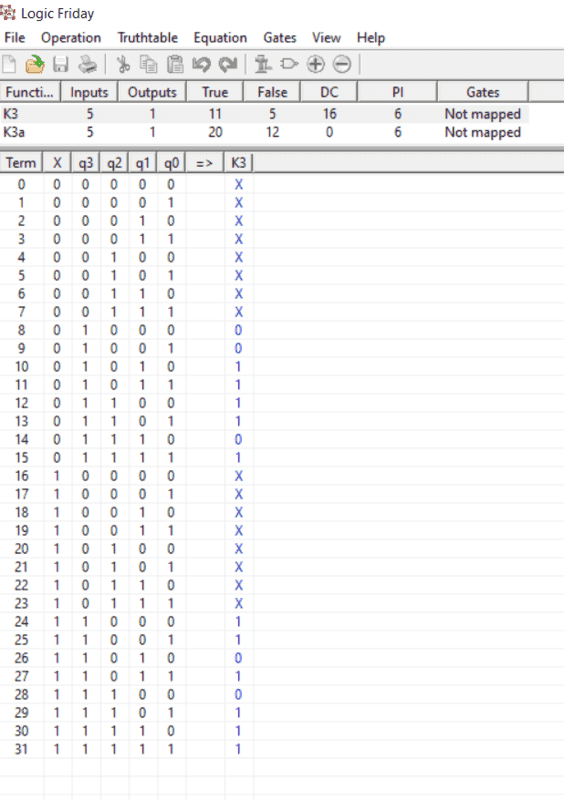

My concern is that, when I tried checking my work, it doesn't match up with what's found on Logic Friday, a program I tried using to minimize the function.

Physics news on Phys.org

Dec 7, 2019

berkeman

Mentor

What is the original function that you are given to minimize?

1. What is a 5 variable K-Map?

A 5 variable K-Map is a graphical tool used in Boolean algebra to simplify logical expressions. It is a 5-dimensional map with 32 squares, each representing a different combination of variables. The map helps in finding the minimal sum of products (SOP) for a given logical expression.

2. How does a 5 variable K-Map work?

The 5 variable K-Map utilizes a technique called adjacency to group together squares with similar variable combinations. The groups are then merged to form larger terms, reducing the number of terms in the logical expression. This process is repeated until the minimal SOP is achieved.

3. When should I use a 5 variable K-Map?

A 5 variable K-Map is useful for simplifying complex logical expressions with up to 5 variables. It can save time and effort compared to traditional methods, such as Boolean algebra or truth tables, especially for larger expressions with many terms.

4. What are the advantages of using a 5 variable K-Map?

The main advantage of using a 5 variable K-Map is that it provides a visual representation of the logical expression, making it easier to identify and group similar terms. It also offers a systematic approach to simplifying expressions, resulting in a minimal SOP that is easy to understand and implement.

5. Are there any limitations to using a 5 variable K-Map?

While a 5 variable K-Map is effective for simplifying expressions with up to 5 variables, it can become complex and time-consuming for larger expressions. It also requires some understanding of Boolean algebra and logic gates to use effectively. Additionally, the K-Map method may not always result in the absolute minimal SOP for a given expression.
