Free circuit simulation software/website for beginners

[Wrichik Basu]

I was looking for simulation softwares that are free. I looked at some on the net, but they aren't satisfying my basic requirements. A simulation software should at least have the following for my use:

• Arduino support
• Support for buck converter
• Solid state relay
• Transformer
• Variable AC supply

Many people use Fritzing, but I don't know whether it's a simulation software. I try to avoid Fritzing and draw the diagrams by hand, thus saving time and making the diagrams less complicated.

Any suggestions for such a software?



[Lord Jestocost]

LTspice? https://www.analog.com/en/design-center/design-tools-and-calculators/ltspice-simulator.html



[anorlunda]

What do you mean by Arduino support? Simulation of your Arduino program?



[Wrichik Basu]

What do you mean by Arduino support? Simulation of your Arduino program?

Yeah. It should support the Arduino boards and also let me upload the program and simulate the circuit.



[berkeman]

What do you mean by Arduino support? Simulation of your Arduino program?

Great minds think alike...

Yeah. It should support the Arduino boards and also let me upload the program and simulate the circuit.

That's a different kind of "simulator". You might be able to get what you want with some sort of "Emulator" software for the Arduino. Have you seen anything like that? You can write "Test Bench" test scripts for CPLDs and FPGAs (that is usually built into the design GUI for such chips), but simulating a microcontroller (uC) based on its program is a bit different.

Has anybody seen examples of those? We have some proprietary software like that where I work to simulate our embedded uCs, but that's proprietary and tailored just to our uCs.



[berkeman]

Has anybody seen examples of those?

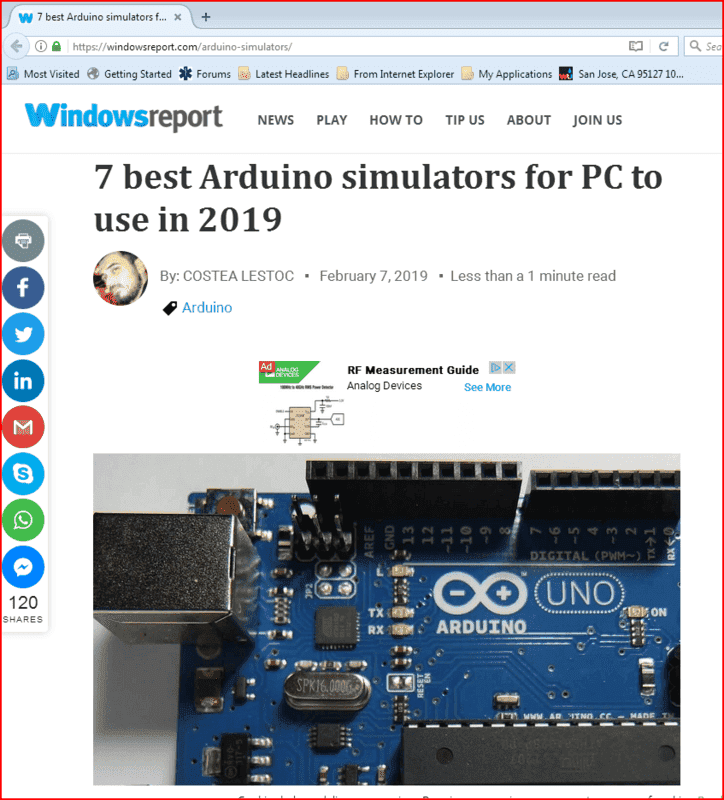

Wow, a quick Google search on arduino emulator windows turns up lots of hits! Here's one of the first hits on the list:

https://windowsreport.com/arduino-simulators/



[Wrichik Basu]

That's a different kind of "simulator". You might be able to get what you want with some sort of "Emulator" software for the Arduino. Have you seen anything like that? You can write "Test Bench" test scripts for CPLDs and FPGAs (that is usually built into the design GUI for such chips), but simulating a microcontroller (uC) based on its program is a bit different.

Nope, I haven't seen any emulator in electronics (the only one I've seen is for Android). I have neither heard of the scripts you mentioned. Actually, I have never worked directly with uC's, and due to my lack of knowledge in that field, I prefer the Arduino.
