Problem finding the distribution of holes in a semiconductor

In summary: Also, I don't see how you get the term in the solution that has the "m" in it.In summary, the conversation is about finding the expression for the change in carrier density, denoted as Δp(x), in a long and thin sample of silicon that is illuminated by an intense optical source. The source can be described by a generation function that is a Dirac comb function with a period a. The temperature and certain parameters are given, and the goal is to find an expression for Δp(x). The attempt at a solution involves using the convection-diffusion equation and considering two portions of the sample separately. However, the solution obtained is not correct and may be missing a recombination term and some extra conditions
  • #1
diredragon
323
15

Homework Statement


Long and thin sample of silicon is stationary illuminated with an intensive optical source which can be described by a generation function ##G(x)=\sum_{m=-\infty}^\infty Kδ(x-ma)## (Dirac comb function). Setting is room temperature and ##L_p## and ##D_p## are given. Find the expression ##Δp(x)=?##

Homework Equations


3. The Attempt at a Solution [/B]
The generation function is a dirac comb with a period a. I started with an idea to only use the generation function on it's main part, ##x \in [-a/2, a/2]##, where ##G(x)=Kδ(x)## and then the result would be periodic.

Using Convection-Diffusion equation:
##\frac{d^2(Δp)}{dx^2} - \frac{Δp}{L_p} = -\frac{G(x)}{D_p}## and from there i got two results, one for the first portion ##(-\infty, 0)## and one for the second portion ##(0, \infty)##:
##Δp_I=Ae^{\frac{x}{L_p}}##
##Δp_{II}=Be^{\frac{-x}{L_p}}##

To find the missing coefficients i use the fact that:
1) ##Δp_I(0^-)=Δp_{II}(0^+)##
2) ##\int_{0^-}^{0^+} d\frac{dΔp}{dx} \, dx = -\int_{0^-}^{0^+} Kδ(x)/D_p \, dx + \int_{0^-}^{0^+} Δp/L_p \, dx##
and i got
##A=B=\frac{KL_p}{2D_p}## so my function would look like this:
##Δp(x) = \frac{KL_p}{2D_p}e^{x/L_p}##, ##-a/2<x<0##
##Δp(x) = \frac{KL_p}{2D_p}e^{-x/L_p}##, ##0<x<+a/2##, periodic with period ##T=a##.

This solution is not correct and I must be missing something about the periodic generation function, probably some extra condition which i can't figure out. The solution from the book gives:

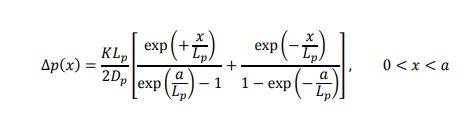

which is of different form than what i have and has extra coefficients. What's wrong here? What is missing?


Attachments

  • solution.jpg
    6.2 KB · Views: 296
Physics news on Phys.org
  • #2
I'm looking at your convection-diffusion equation and don't see the recombination term.
