Satellite Tracking-Stepper Motor

  • Thread starter Thread starter vengeful
  • Start date Start date
  • Tags Tags
    Motor Satellite
AI Thread Summary
To move a satellite receiver to any geostationary satellite, a unipolar stepper motor is preferred, with options for half-stepping or microstepping to enhance accuracy at low speeds. The motor will be mounted horizontally, utilizing a worm gear or similar mechanism for full 360-degree rotation. The user seeks recommendations for a motor rated to support a load of 5-8 kg. Additionally, there is a query about the applicability of telescope methods for this setup. The discussion emphasizes the need for precise motor selection to ensure effective satellite tracking.
vengeful
Messages
3
Reaction score
0
Hey everyone: I have the following problem: as the title suggests I need to be able to move my satellite receiver to any geostationary satellite orbiting. I want to use a unipolar stepper motor and either half step, or I might Microstep the motor to get more accuracy. I am looking to operate it at very low speeds.

The motor will be oriented horizontally, and a worm gear or any other type of gear will be used to get the 360' motion. What I would like to know what rated motor should I get that can handle the satellite load of about 5-8kg?

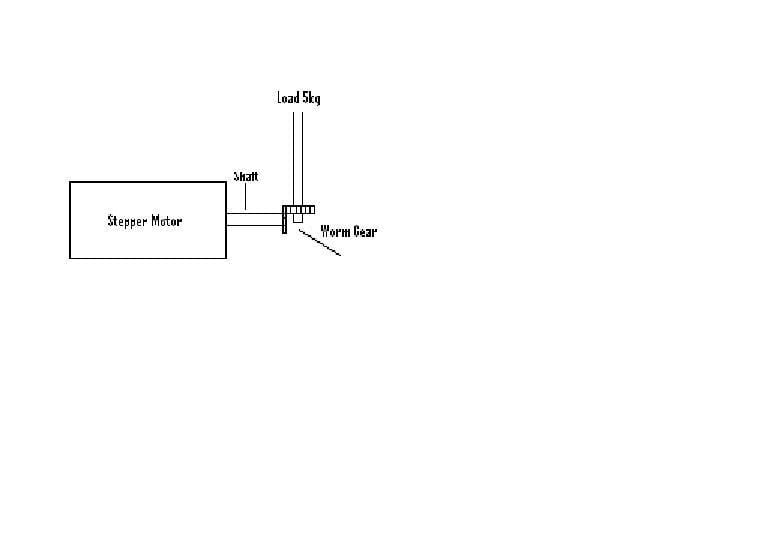

The attached file is a basic diagram of the orientation of the motor.


Attachments

  • DiagramStep.JPG
    5.6 KB · Views: 477
