Troubleshooting LM386 Amplifier Noise: Capacitor Value and Behavior Explained

  • Thread starter Thread starter miroku
  • Start date Start date
  • Tags Tags
    Amplifier
AI Thread Summary
The LM386 amplifier can produce significant noise at the output, which can be mitigated by adding a capacitor, with a 47uF value being particularly effective. Other capacitor values may not yield the same noise reduction, leading to questions about their behavior. The LM386 is a power amplifier and should not be treated like an operational amplifier; it requires specific connections and configurations. Implementing a Zobel network may also help improve performance and reduce noise. Understanding the proper usage as outlined in the datasheet is crucial for optimal results.
miroku
Messages
2
Reaction score
0
hi guys,
i'm doing the testing amplifier for my DIY project,
and i using LM386 IC, i found that is a lot of noise at the output.
i saw an example putting a capacitor at the output to reduce the noise, it work!
the value of capacitor is 47uF. it not work well for other value capacitor.
But i not sure why behaviors like that? help please...


Attachments

  • lm_386.png

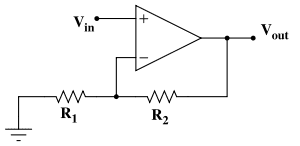

    1.5 KB · Views: 492
Last edited:
Engineering news on Phys.org
miroku said:
hi guys,
i'm doing the testing amplifier for my DIY project,
and i using LM386 IC, i found that is a lot of noise at the output.
i saw an example putting a capacitor at the output to reduce the noise, it work!
the value of capacitor is 47uF. it not work well for other value capacitor.
But i not sure why behaviors like that? help please...

The LM386 is not an opamp. It is a power amp, and you do not connect feedback around it like it was an opamp. Download the datasheet from National Semiconductor's website to see how it should be used.
