Which diagram of water molecules is correct?

In summary: It is very informative.In summary, there is no one "right" way to draw a covalent or Lewis structure. It is just a convention that some textbooks use. The important thing is to be aware of the underlying logic behind the diagram, and to not let the convention become a fact.
  • #1
lioric
306
20
TL;DR Summary
Which way is the correct way to draw dot and cross covalent structures

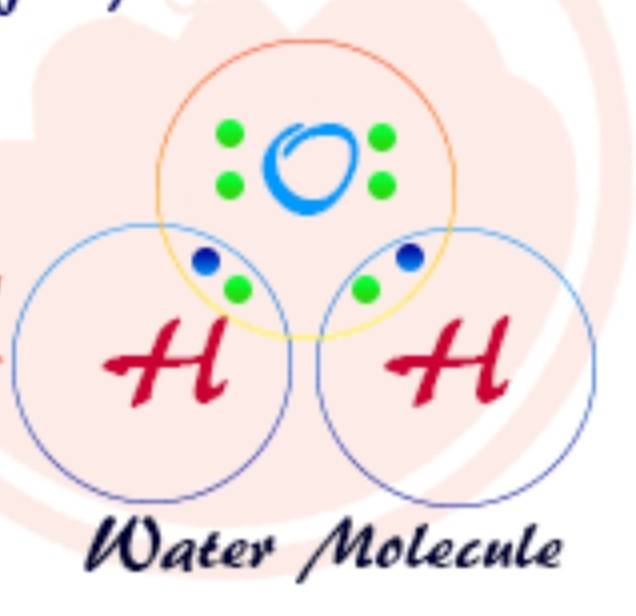

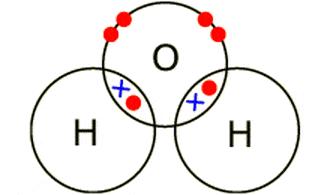

I've seen both types of diagrams when drawing covalent dot and cross diagrams. And some students that I teach said that the electrons should be on the circles.
But I do know that this is actually showing the electron overlap and electron field and in reality electrons are not in circular orbits, it's more complex than that. So is either of these correct?


Attachments

  • main-qimg-8d48ba5e8809799ce187e514f7acfd58.gif
    7.8 KB · Views: 124
  • IMG_20210922_224510.jpg
    23.4 KB · Views: 99
Chemistry news on Phys.org
  • #2
No. These are representations. Models/simulacra/...

  • #3
Students new to Chemistry often take the representations meant to learn something like, maybe bonding, but they take it literally and assume these have direct physical meaning. Just because you can draw it does not make it reality. Example: I can draw unicorns.

  • #4
Thank you very much for your input
May I know the proper way to draw the dot cross / Lewis structure

  • #5
lioric said:
proper way
You will have to tell us a bit more about yourself to give us an idea which "proper way" applies; age, professional/amateur/physicist/chemist/biologist/geologist... We can see what you're asking; just ask the question. What do you actually want to know?

  • #6
Bystander said:
You will have to tell us a bit more about yourself to give us an idea which "proper way" applies; age, professional/amateur/physicist/chemist/biologist/geologist... We can see what you're asking; just ask the question. What do you actually want to know?
For grade 8,9,10 chemistry students

  • #7
lioric said:
For grade 8,9,10
Thank you.

  • #8
There is no such thing as a "proper way" here. There are conventions of drawing the diagram, you can freely choose whichever suits you best (preferably the one course textbook uses, it will make easier for you and your students to discuss the bonds). But the important thing here is: don't let the convention become a "fact". Diagram is a way of expressing some underlying logic, convention is a way of drawing the diagram - it is the underlying logic that is important, everything else is secondary.

(Actually even this "logic" is a simplification of reality and is in a way secondary to what is really going on in molecules).

  • Like
Likes Bystander, BillTre and lioric
  • #9
Borek said:
There is no such thing as a "proper way" here. There are conventions of drawing the diagram, you can freely choose whichever suits you best (preferably the one course textbook uses, it will make easier for you and your students to discuss the bonds). But the important thing here is: don't let the convention become a "fact". Diagram is a way of expressing some underlying logic, convention is a way of drawing the diagram - it is the underlying logic that is important, everything else is secondary.

(Actually even this "logic" is a simplification of reality and is in a way secondary to what is really going on in molecules).
Thank you very much for all your input. When I talk here it always dawn's up on me for how little I know and that there is so much of knowledge out there.
I really appreciate your help.
I'll consider this as resolved

  • #11
DrDu said:
You are a teacher? Then maybe you ought to consult an introductory text on theoretical chemistry, like (the first decent looking find in google):
http://simons.hec.utah.edu/NewUndergradBook/TableofContents.html
Yes I'm a teacher.
I just wanted to see if drawing in either method would be wrong
I do know it's a concept and neither of them is how real structure looks like
Thank you for the link
