Unknown Voltage Source and Current

AI Thread Summary
The discussion centers on determining the voltage across a 9.1-ohm resistor in an unknown voltage source circuit. One participant suggests reviewing a previous thread where a similar problem was solved step-by-step. They recommend using nodal equations or loop equations to analyze the circuit effectively. The emphasis is on revisiting the original solution for clarity. Understanding these methods is crucial for solving the current problem accurately.
pantera1441
Messages
8
Reaction score
0

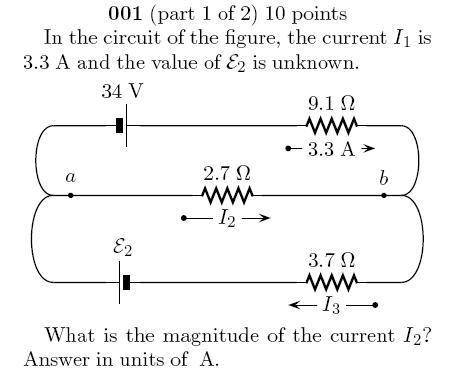

I have no clue on this one either help me out a bit


Attachments

  • physics3.JPG
    21.1 KB · Views: 461
Engineering news on Phys.org
clue: what's the voltage on the 9.1 ohm resistor? then just keep going.

Pantera, if you look closer https://www.physicsforums.com/showthread.php?t=159391" You might notice that I already solved a similar problem for you. I even did it in a step by step ;) So, I guess that you've to go back to the original thread and read it one more time, because the solution is there, you just can't see it. So take a better look ;)

You can either solve it by applying nodal equations as I did for you in another thread, or you can write two loop equations the describes the circuit.
