Audio Ampilfier Circuit Troubleshooting

  • Thread starter Thread starter nbo10
  • Start date Start date
  • Tags Tags
    Audio
AI Thread Summary
An audio amplifier circuit is not functioning due to a defective breadboard. The user discovered that the breadboard's quality may have contributed to the issue. This highlights the importance of ensuring that all components, including breadboards, are in good condition before troubleshooting circuits. The discussion emphasizes the need for quality control in manufacturing breadboards. Ultimately, even seemingly minor components can significantly affect circuit performance.
nbo10
Messages
416
Reaction score
5
Hi all,

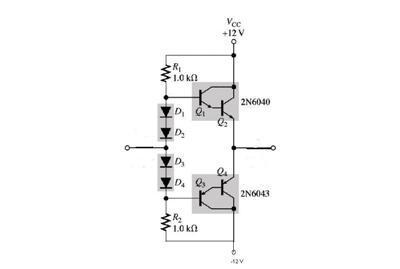

I'm trying to build a audio power ampilfier but can't get the circuit to work. The attached jpg shows the circuit that I'm building. Can anyone help? Thanks


Attachments

  • circuit (Custom).JPG
    circuit (Custom).JPG
    5.3 KB · Views: 453
Engineering news on Phys.org
Well it turns out I had a defective bread board.

Well done, In my whole life, I never know that breadboards can be defective too. May be due to poor quality control in the manufacture of breadboards.
