Homework Statement: Find the multiplier resistance

Relevant Equations: Rm = V/i – Rc

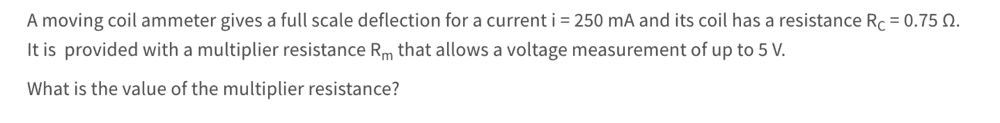

Question:

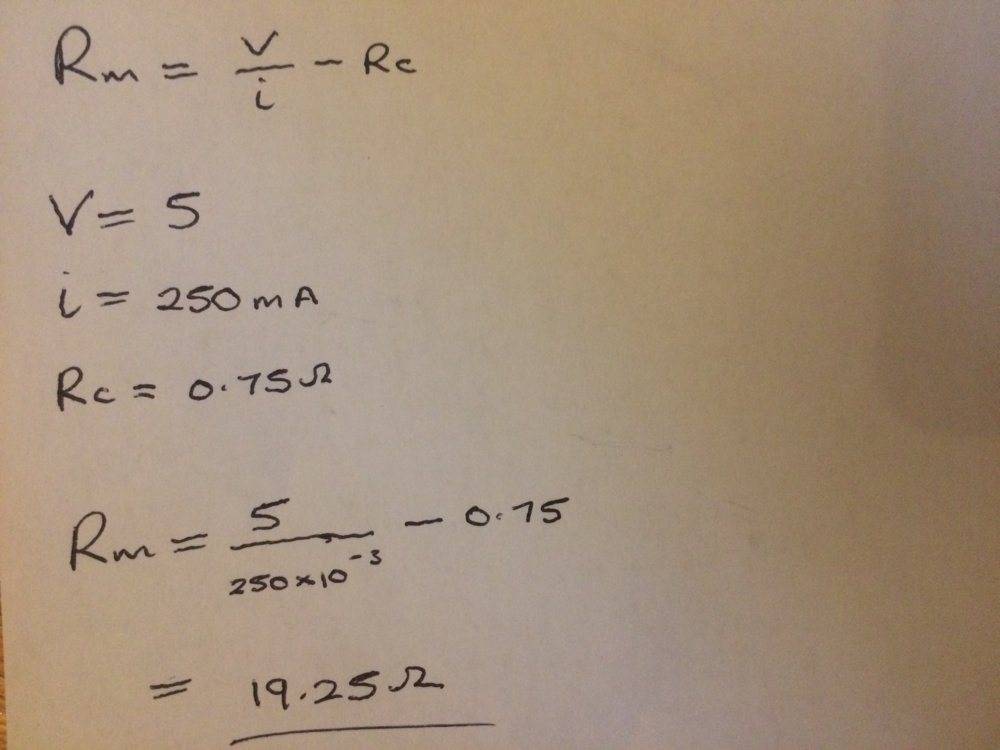

My attempt:

So the resistance of the multiplier resistance comes out to be 19.25 ohms?
